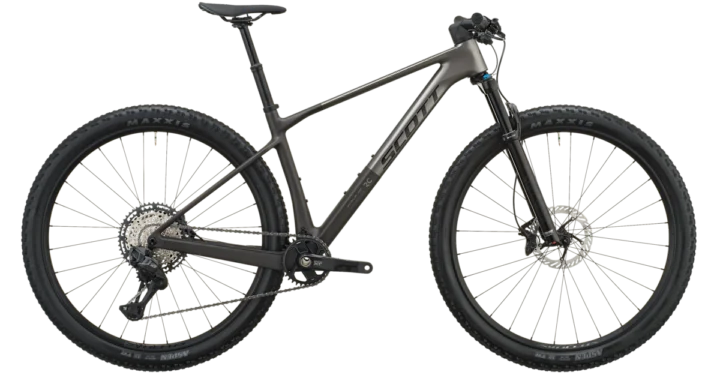

2027 Scott Scale RC Expert

Original manufacturer specifications including 29 wheels, 10.8 Tubless kg published weight, geometry for 4 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2027
Category
Mountain
Original MSRP
$4,199.99
Sizes
S, M, L, XL
Weight
10.8 Tubless kg
Geometry
4 manufacturer sizes · Geometry context
Record coverage
20 preserved details · 2 archived images · original MSRP · preserved geometry
Archive ID
900001949
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Frameset

Frame ConstructionScale RC HMF Carbon, Adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH Interface, 12x148mm with 55mm Chainline
Frame MaterialCarbon Fiber
ForkFox 32 Rhythm Grip, 3P, Kabolt 15x110mm axle, tapered steerer, Reb. Adj, Lockout

Drivetrain

ShiftersShimano Deore Di2 SW-M6250
Rear DerailleurShimano XT Di2 RD-M8250 12-speed, Wireless Electronic Shift System
CranksetShimano XT FC-M8200, 34T
Bottom BracketShimano BB-MT500 PF
CassetteShimano XT CS-M8200, 10-51T
ChainShimano CN-M8100

Brakes

BrakesShimano Deore BR-M6220 4-Piston; Rotors: (F) Shimano RT-CL700, 180mm / (R) Shimano RT-CL700, 160mm

Cockpit & Contact Points

HeadsetSyncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
HandlebarSyncros Fraser 2.0 XC Alloy 6061 D.B., Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips
StemSyncros XC 2.0, Syncros Cable Integration System, -12° rise, 6061 Alloy, 31.8mm, 1 1/8"
SaddleSyncros Celista Cut Out, Cr-Mo Rails
SeatpostSyncros dropper post SP-M100-AL2, 31.6mm

Wheels & Tires

WheelsSyncros Silverton AL2, CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready, 28H, Micro Spline
Front TireMaxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO
Rear TireMaxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO
Wheel Size29

Size-specific frame data

Geometry

4 sizes · 15 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementSMLXL
Seat tube390 mm440 mm480 mm530 mm
Effective top tube575 mm600.2 mm626 mm656.5 mm
Head tube90 mm95 mm110 mm120 mm
Head-tube angle67.9°67.9°67.9°67.9°
Seat-tube angle75.4°75.4°75.3°75.3°
Chainstay / rear center425 mm425 mm425 mm425 mm
Wheelbase1105.4 mm1131.1 mm1158 mm1189.4 mm
Bottom-bracket drop62 mm62 mm62 mm62 mm
Bottom-bracket height313 mm313 mm313 mm313 mm
Reach418.5 mm442.3 mm463.6 mm491.2 mm
Stack600.3 mm604.9 mm618.9 mm628.1 mm
Standover height752 mm781 mm800 mm835.1 mm
Trail105 mm105 mm105 mm105 mm
Fork length / axle-to-crown506 mm506 mm506 mm506 mm
Stem length50 mm60 mm70 mm80 mm

Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

S geometry

Archive context: Its bottom-bracket drop of 62 mm sits toward the deeper-drop end. Its wheelbase of 1105.4 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.

Compared with 168 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainExact archived part
Shimano CN-M8100 Exact archived model
CassetteExact archived part
Shimano XT CS-M8200, 10-51T Interpreted as Shimano Deore XT · 12-speed Exact archived model
Front tireMatching fit standard
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO Named tire and published size
More qualified parts (6)
Brake padsExact archived part
Shimano Deore BR-M6220 4-Piston Brake model identified — verify pad shape
Bottom bracketExact archived part
Shimano BB-MT500 PF Exact archived model
SaddleQualified part search
Syncros Celista Cut Out, Cr-Mo Rails Named archived component — verify exact version
CranksetExact archived part
Shimano XT FC-M8200, 34T Exact archived model
Rear derailleurExact archived part
Shimano XT Di2 RD-M8250 12-speed, Wireless Electronic Shift System Interpreted as Shimano Deore XT · 12-speed · Di2 Exact archived model
ShiftersQualified part search
Shimano Deore Di2 SW-M6250 Interpreted as Shimano Deore · 12-speed · Di2 Component family — verify exact version

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
  • BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
  • SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
  • DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
0 of 21 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2027 Scott Scale RC Expert · Mountain · Published sizes: S, M, L, XL

Archived: Frame: Scale RC HMF Carbon, Adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH Interface, 12x148mm with 55mm Chainline · Fork: Fox 32 Rhythm Grip, 3P, Kabolt 15x110mm axle, tapered steerer, Reb. Adj, Lockout

Archived: Fork: Fox 32 Rhythm Grip, 3P, Kabolt 15x110mm axle, tapered steerer, Reb. Adj, Lockout

Archived: Shifters: Shimano Deore Di2 SW-M6250 · Rear derailleur: Shimano XT Di2 RD-M8250 12-speed, Wireless Electronic Shift System · Crankset: Shimano XT FC-M8200, 34T · Bottom bracket: Shimano BB-MT500 PF · Cassette: Shimano XT CS-M8200, 10-51T · Chain: Shimano CN-M8100

Archived: Brakes: Shimano Deore BR-M6220 4-Piston; Rotors: (F) Shimano RT-CL700, 180mm / (R) Shimano RT-CL700, 160mm

Archived: Wheel size: 29 · Wheels: Syncros Silverton AL2, CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready, 28H, Micro Spline · Front tire: Maxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO · Rear tire: Maxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO

Controls and contact points

Archived: Headset: Syncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB · Handlebar: Syncros Fraser 2.0 XC Alloy 6061 D.B., Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips · Stem: Syncros XC 2.0, Syncros Cable Integration System, -12° rise, 6061 Alloy, 31.8mm, 1 1/8" · Seatpost: Syncros dropper post SP-M100-AL2, 31.6mm · Saddle: Syncros Celista Cut Out, Cr-Mo Rails

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
