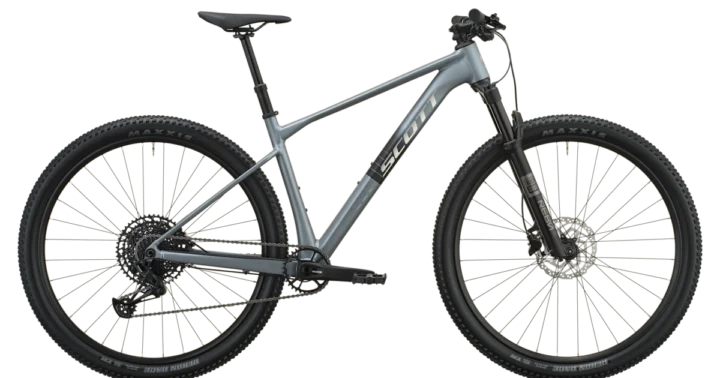

2027 Scott Scale 40
Original manufacturer specifications including 29 wheels, 13.3 without pedals kg published weight, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Mountain
- Original MSRP
- $1,799.99
- Sizes
- XS, S, M, L, XL, XXL
- Weight
- 13.3 without pedals kg
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001959
Model history 4 other years
Frameset
| Frame Construction | Scale made from Low Impact Alloy, Tapered Headtube, BB92, UDH interface, Boost 12x148mm with 55mm chainline |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Reba RL Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout |
Drivetrain
| Shifters | SRAM Eagle S100 Trigger |
|---|---|
| Rear Derailleur | SRAM Eagle S100 Half-Mount, 12 Speed |
| Crankset | SRAM Eagle S200 Transmission, DUB, 55mm CL, 32T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Cassette | SRAM PG1210, 11-50T |
| Chain | SRAM Eagle S100 |
| Pedals | Feimin FP-873ZU |
Brakes
| Brakes | Shimano BR-MT200 2-Piston; Rotors: (F) Shimano SM-RT10 CL, 180mm / (R) Shimano SM-RT10 CL, 160mm |
|---|
Cockpit & Contact Points
| Headset | Cable Routing Headset ZS56/28.6 – ZS56/40 |
|---|---|
| Handlebar | Syncros Alloy 6061, T shape Flat, 9°, 740mm |
| Stem | Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle |
| Saddle | Syncros Belcarra R 2.5 |
| Seatpost | Syncros Dropper Post SP-M302-AL2, 31.6mm |
Wheels & Tires
| Hubs | (F) Formula CL-811, 15x110mm / (R) Formula CL-3248, 12x148mm Spokes Stainless Black Front Rim Alex Rims X25 Disc 32H, Tubeless ready Rear Rim Alex Rims X25 Disc 32H, Tubeless ready |
|---|---|
| Front Tire | Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO |
| Rear Tire | Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO |
| Wheel Size | 29 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube | 360 mm | 390 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Effective top tube | 555 mm | 575 mm | 600 mm | 625 mm | 655 mm | 675 mm |
| Head tube | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm | 120 mm |
| Head-tube angle | 67.4° | 67.4° | 67.4° | 67.4° | 67.4° | 67.4° |
| Seat-tube angle | 75° | 75° | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1091.4 mm | 1111.8 mm | 1138.2 mm | 1164.6 mm | 1195.9 mm | 1215.9 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom-bracket height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Reach | 400.3 mm | 420.3 mm | 442.8 mm | 463.3 mm | 492.9 mm | 512.9 mm |
| Stack | 596.1 mm | 596.1 mm | 605.3 mm | 614.6 mm | 623.8 mm | 623.8 mm |
| Standover height | 745 mm | 755 mm | 786 mm | 805 mm | 835 mm | 870 mm |
| Fork length / axle-to-crown | 160 mm | 506 mm | 506 mm | 506 mm | 506 mm | 112.6 mm |
Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1091.4 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 55 distinct mountain geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1111.8 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 168 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its wheelbase of 1138.2 mm sits toward the shorter end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end.
Compared with 171 distinct mountain geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its wheelbase of 1164.6 mm sits toward the shorter end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end.
Compared with 167 distinct mountain geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its stack of 623.8 mm sits toward the lower end. Its wheelbase of 1195.9 mm sits toward the shorter end.
Compared with 143 distinct mountain geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its stack of 623.8 mm sits toward the lower end. Its wheelbase of 1215.9 mm sits toward the shorter end.
Compared with 22 distinct mountain geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry Parts & serviceability
Find replacement parts
SRAM PG1210, 11-50T
Named component · published drivetrain speed — verify exact version
Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO
Named tire and published size
Shimano BR-MT200 2-Piston
Brake model identified — verify pad shape
More qualified parts (6)
SRAM DUB PF 92 MTB Wide, shell 41x92mm
Named archived component — verify dimensions
Syncros Belcarra R 2.5
Named archived component — verify exact version
SRAM Eagle S100 Half-Mount, 12 Speed
Component family — verify exact version
SRAM Eagle S100 Trigger
Named component · published drivetrain speed — verify exact version
Syncros Dropper Post SP-M302-AL2, 31.6mm
Dropper post identified — verify travel, routing and insertion depth
ZS56/28.6 | ZS56/40
Published headset interfaces — verify stack height and frame clearance
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Scott Scale 40 · Mountain · Published sizes: XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Scale made from Low Impact Alloy, Tapered Headtube, BB92, UDH interface, Boost 12x148mm with 55mm chainline · Fork: RockShox Reba RL Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout
Suspension
Evaluate the suspension →Archived: Fork: RockShox Reba RL Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Eagle S100 Trigger · Rear derailleur: SRAM Eagle S100 Half-Mount, 12 Speed · Crankset: SRAM Eagle S200 Transmission, DUB, 55mm CL, 32T · Bottom bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm · Cassette: SRAM PG1210, 11-50T · Chain: SRAM Eagle S100
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-MT200 2-Piston; Rotors: (F) Shimano SM-RT10 CL, 180mm / (R) Shimano SM-RT10 CL, 160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29 · Hubs: (F) Formula CL-811, 15x110mm / (R) Formula CL-3248, 12x148mm Spokes Stainless Black Front Rim Alex Rims X25 Disc 32H, Tubeless ready Rear Rim Alex Rims X25 Disc 32H, Tubeless ready · Front tire: Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO · Rear tire: Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO
Controls and contact points
Archived: Headset: Cable Routing Headset ZS56/28.6 – ZS56/40 · Handlebar: Syncros Alloy 6061, T shape Flat, 9°, 740mm · Stem: Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle · Seatpost: Syncros Dropper Post SP-M302-AL2, 31.6mm · Saddle: Syncros Belcarra R 2.5 · Pedals: Feimin FP-873ZU
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
