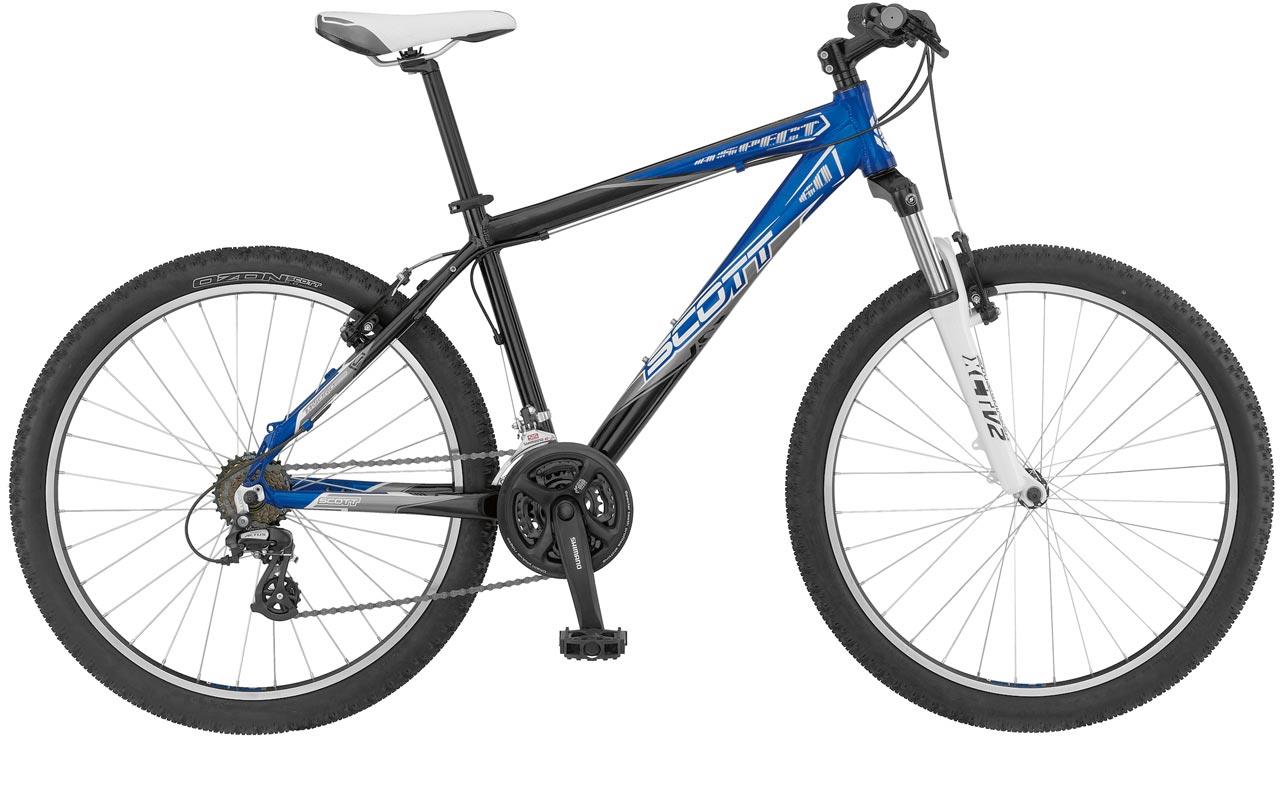

2009 Scott Aspect 60
Original specifications: Shimano Altus · 7-speed rear derailleur · 26" wheels · 30.84 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #17510- Model year
- 2009
- Category
- Mountain
- Original MSRP
- $517.49
- Sizes
- XS, S, M, L, XL
- Colors
- Blue/Black/Gray
- Weight
- 30.84 lb
- In this record
- 26 specifications · archived image · original MSRP
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Blue/Black/Gray
- Frame
- Hydraformed Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildHydraformed Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hydraformed Aluminum |
| Fork | SR Suntour XCT V2, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-50 EZ Fire Integrated |
| Front Derailleur | Shimano C051 |
| Rear Derailleur | Shimano Altus |
| Crankset | Shimano FC-M191 w/chainguard, 24/34/42 teeth |
| Bottom Bracket | Shimano UN-26 |
| Cassette | Shimano TZ07 |
| Rear Cogs | 7-speed |
| Chain | KMC Z50 |
| Pedals | Xerama SP-872N |
Brakes
| Brakes | Scott Comp brakes, Shimano EF-50 EZ Fire Integrated levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey Logic OE |
|---|---|
| Handlebar | HL MTB-152 Hi-Ten |
| Handlebar Extensions | Not included |
| Stem | Scott TDS-C41-8 |
| Saddle | SCT-10 SL Aspect |
| Seatpost | Scott SCP-252, 26.8mm diameter |
Wheels & Tires
| Hubs | Front: Formula FM21-FQR, Rear: Formula FM31-FQR |
|---|---|
| Rims | Rigida Cyber 10 |
| Spokes | UCP, 14ga. (2.0mm) |
| Front Tire | 26 x 2.00" Scott Ozon |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC Z50
26 x 2.00" Scott Ozon
Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano UN-26
More parts (4)Fewer parts
Shimano FC-M191 w/chainguard
24/34/42 teeth
Shimano Altus
Scott SCP-252
26.8mm diameter
1 1/8" Ritchey Logic OE
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00" Scott Ozon
- Drivetrain
- 7-speed
- Seatpost diameter
- 26.8 mm
- Bottom bracket / shell
- Shimano UN-26
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: SR Suntour XCT V2, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour XCT V2, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano EF-50 EZ Fire Integrated · Front derailleur: Shimano C051 · Rear derailleur: Shimano Altus · Crankset: Shimano FC-M191 w/chainguard, 24/34/42 teeth · Bottom bracket: Shimano UN-26 · Cassette: Shimano TZ07 · Rear cogs: 7-speed · Chain: KMC Z50
Brakes
Inspect the brakes →Archived: Brakes: Scott Comp brakes, Shimano EF-50 EZ Fire Integrated levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Rigida Cyber 10 · Hubs: Front: Formula FM21-FQR, Rear: Formula FM31-FQR · Front tire: 26 x 2.00" Scott Ozon
Controls and contact points
Archived: Headset: 1 1/8" Ritchey Logic OE · Handlebar: HL MTB-152 Hi-Ten · Stem: Scott TDS-C41-8 · Seatpost: Scott SCP-252, 26.8mm diameter · Saddle: SCT-10 SL Aspect · Pedals: Xerama SP-872N
