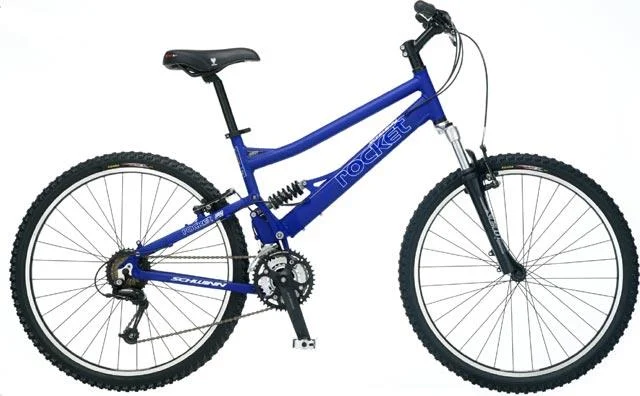

2006 Schwinn Rocket

Original specifications: Mountain Mix drivetrain · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #11430
Model year
2006
Category
Mountain
Original MSRP
$499.99
Sizes
16", 17", 19", 21.5"
Colors
Gloss Black / Dark Red
In this record
27 specifications · archived image · original MSRP
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2006 archived details

Published colors
Gloss Black / Dark Red
Frame
7005 aluminum
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build7005 aluminum · Mountain Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

16"17"19"21.5"

Published colors

Gloss Black / Dark Red
View 4 archived size/color combinations
SizeColor
16"Gloss Black / Dark Red
17"Gloss Black / Dark Red
19"Gloss Black / Dark Red
21.5"Gloss Black / Dark Red

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkRST Gila T6, 100mm travel
Fork MaterialAluminum, single crown
Rear ShockRST-22 coil spring, 3.5" travel

Drivetrain

Component GroupMountain Mix
ShiftersSRAM SX-4
Front DerailleurSRAM 3.0, top-pull/clamp-on 31.8mm
Rear DerailleurSRAM SX5
CranksetTruvativ X-Flow, 22/32/44 teeth
Bottom BracketTruvativ cartridge, 113mm spindle
BB Shell Width68mm English
Rear Cogs8-speed, 11 - 32 teeth
ChainShimano CN-IG51
PedalsResin body/steel cage

Brakes

BrakesTektro aluminum linear-pull brakes, Tektro aluminum levers

Cockpit & Contact Points

Headset1 1/8" threadless FPD
Handlebar6061 T6 aluminum
StemSchwinn Ride Tuned
SaddleWTB Speed V Sport
SeatpostAluminum, 27.2mm diameter

Wheels & Tires

HubsFront: JoyTech aluminum, Rear: JoyTech aluminum cassette
RimsAlex PC19, 32-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 2.10" WTB Velociraptor
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–32T · 8-speed
Lowest0.69:1 Highest4.00:1 Total range582%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-IG51
Front tire · Original
26 x 2.10" WTB Velociraptor
More parts (4)Fewer parts
Brake pads · Original
Tektro aluminum linear-pull brakes

Tektro aluminum levers

Saddle · Original
WTB Speed V Sport
Shifters · Original
SRAM SX-4
Rims · Original
Alex PC19

32-hole

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" WTB Velociraptor
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Truvativ cartridge, 113mm spindle · 68mm English
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: RST Gila T6, 100mm travel · Aluminum, single crown

Archived: Fork: RST Gila T6, 100mm travel · Rear shock: RST-22 coil spring, 3.5" travel

Archived: Group: Mountain Mix · Shifters: SRAM SX-4 · Front derailleur: SRAM 3.0, top-pull/clamp-on 31.8mm · Rear derailleur: SRAM SX5 · Crankset: Truvativ X-Flow, 22/32/44 teeth · Bottom bracket: Truvativ cartridge, 113mm spindle · Rear cogs: 8-speed, 11 - 32 teeth · Chain: Shimano CN-IG51

Archived: Brakes: Tektro aluminum linear-pull brakes, Tektro aluminum levers

Archived: Wheel size: 26" wheels · Rims: Alex PC19, 32-hole · Hubs: Front: JoyTech aluminum, Rear: JoyTech aluminum cassette · Front tire: 26 x 2.10" WTB Velociraptor

Controls and contact points

Archived: Headset: 1 1/8" threadless FPD · Handlebar: 6061 T6 aluminum · Stem: Schwinn Ride Tuned · Seatpost: Aluminum, 27.2mm diameter · Saddle: WTB Speed V Sport · Pedals: Resin body/steel cage
