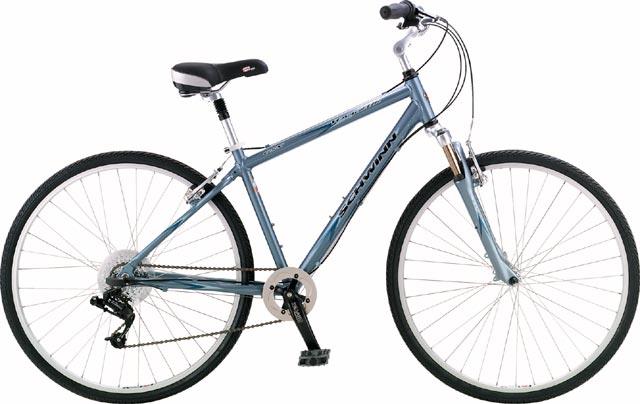

2004 Schwinn Voyageur GSX
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $459.99
- Sizes
- 15", 17", 19", 21", womens 15", womens 18"
- Colors
- Gray
- Archive ID
- 31325
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum, butted |
| Fork | SR Suntour NEX-4000, 50mm travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | SRAM Dual Drive |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Dual Drive |
| Crankset | TruVativ X-Forge, 33 teeth |
| Bottom Bracket | TruVativ cartridge |
| Rear Cogs | 3-speed internal x 7-speed, 12 - 32 teeth |
| Chain | KMC UG-50, 1/2 x 3/32" |
| Pedals | Nylon platform |
Brakes
| Brakes | Tektro linear-pull brakes, Tektro linear-pull levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" sealed mechanism |
|---|---|
| Handlebar | 50mm rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum, adjustable |
| Saddle | Schwinn Super Soft Plus |
| Seatpost | Aluminum, suspension |
Wheels & Tires
| Hubs | Front: Formula aluminum, Q/R, Rear: SRAM Dual Drive |
|---|---|
| Rims | Alex X-101 |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 40c |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
