SRAM Eagle 70 T-Type 12-Speed Chain
Specification match
Velopedia Bicycle Archive
Original specifications: 29″ front / 27.5″ rear wheels · 49.14lbs / 22.29kg published weight · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000287| Frame Construction | Carbon C MX 150mm Travel, 4-Bar |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Zeb Base, 160mm |
| Rear Shock | FOX Float X Performance, 205x60 |
| Rear Derailleur | SRAM 70 Eagle T-Type, 12spd |
|---|---|
| Crankset | E13 Helix eSpec, 160mm |
| Cassette | SRAM XS 1270 Eagle T-Type, 10-52t |
| Chain | SRAM 70 Eagle T-Type, Flattop, 12spd |
| Brakes | SRAM DB8 |
|---|
| Headset | Cane Creek 10 IS Integrated Headset |
|---|---|
| Handlebar | Burgtec Alloy Bar -or- e13 TRS Base Bar |
| Stem | OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm |
| Saddle | SDG Bel-Air V3 Max |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Hubs | (F) SRAM MTH 716, 15x110, 6-Bolt, 32h / (R) SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
|---|---|
| Rims | (F) Reserve 30|HD AL / (R) Reserve 30|HD AL |
| Front Tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Tire | Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown |
| Wheel Size | Mx |
No specifications match. Try a component name or clear your search.
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 400 mm | 420 mm | 460 mm | 500 mm |
| Top tube | 573 mm | 601 mm | 622 mm | 645 mm | 673 mm |
| Head tube | 110 mm | 120 mm | 130 mm | 145 mm | 160 mm |
| Head-tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Seat-tube angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Chainstay / rear center | 439 mm | 440 mm | 443 mm | 446 mm | 450 mm |
| Wheelbase | 1210 mm | 1240 mm | 1268 mm | 1297 mm | 1333 mm |
| Bottom-bracket drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Bottom-bracket height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Reach | 435 mm | 460 mm | 480 mm | 500 mm | 525 mm |
| Stack | 623 mm | 632 mm | 641 mm | 655 mm | 668 mm |
| Standover height | 741 mm | 735 mm | 734 mm | 734 mm | 728 mm |
| Front center | 771 mm | 800 mm | 825 mm | 851 mm | 883 mm |
Dimensions as recorded.
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Your changes apply to this calculation. The archived build stays unchanged.
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Flattop, 12spd

Specification match
10-52t

Model match
3C MaxxGrip, EXO+

Model match
3C MaxxTerra DoubleDown

Replacement option
12spd
31.6
Based on the original build. Check fit and installed parts before ordering.
Archived specifications for reference. Check the fitted parts before ordering.
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Archived: Frame: Carbon C MX 150mm Travel, 4-Bar · Fork: RockShox Zeb Base, 160mm
Archived: Fork: RockShox Zeb Base, 160mm · Rear shock: FOX Float X Performance, 205x60
Archived: Rear derailleur: SRAM 70 Eagle T-Type, 12spd · Crankset: E13 Helix eSpec, 160mm · Cassette: SRAM XS 1270 Eagle T-Type, 10-52t · Chain: SRAM 70 Eagle T-Type, Flattop, 12spd
Archived: Brakes: SRAM DB8
Archived: Wheel size: MX · Rims: (F) Reserve 30|HD AL / (R) Reserve 30|HD AL · Hubs: (F) SRAM MTH 716, 15x110, 6-Bolt, 32h / (R) SRAM MTH 746, 12x148, HG, 6-Bolt, 32h · Front tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ · Rear tire: Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown
Archived: Headset: Cane Creek 10 IS Integrated Headset · Handlebar: Burgtec Alloy Bar -or- e13 TRS Base Bar · Stem: OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm · Seatpost: SDG Tellis Dropper, 31.6 · Saddle: SDG Bel-Air V3 Max

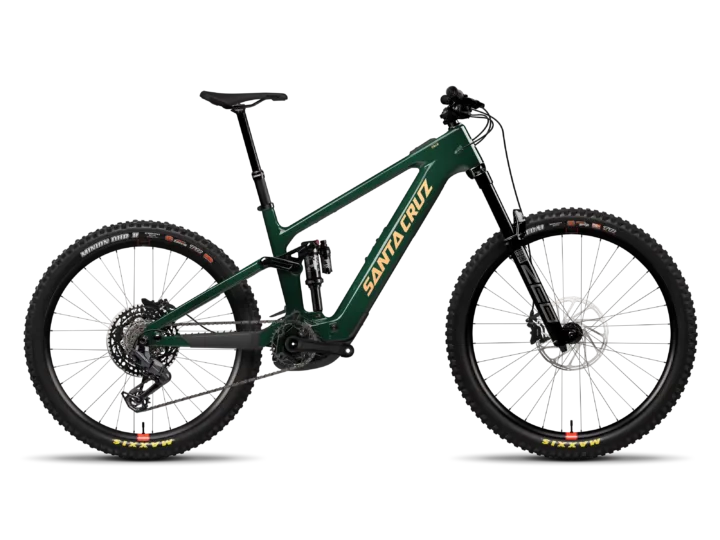

Archived: Santa Cruz Vala 70 · electric-assist identification
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
