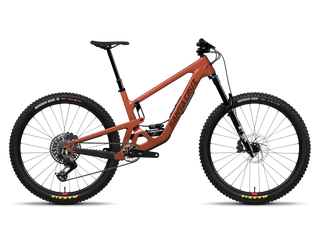

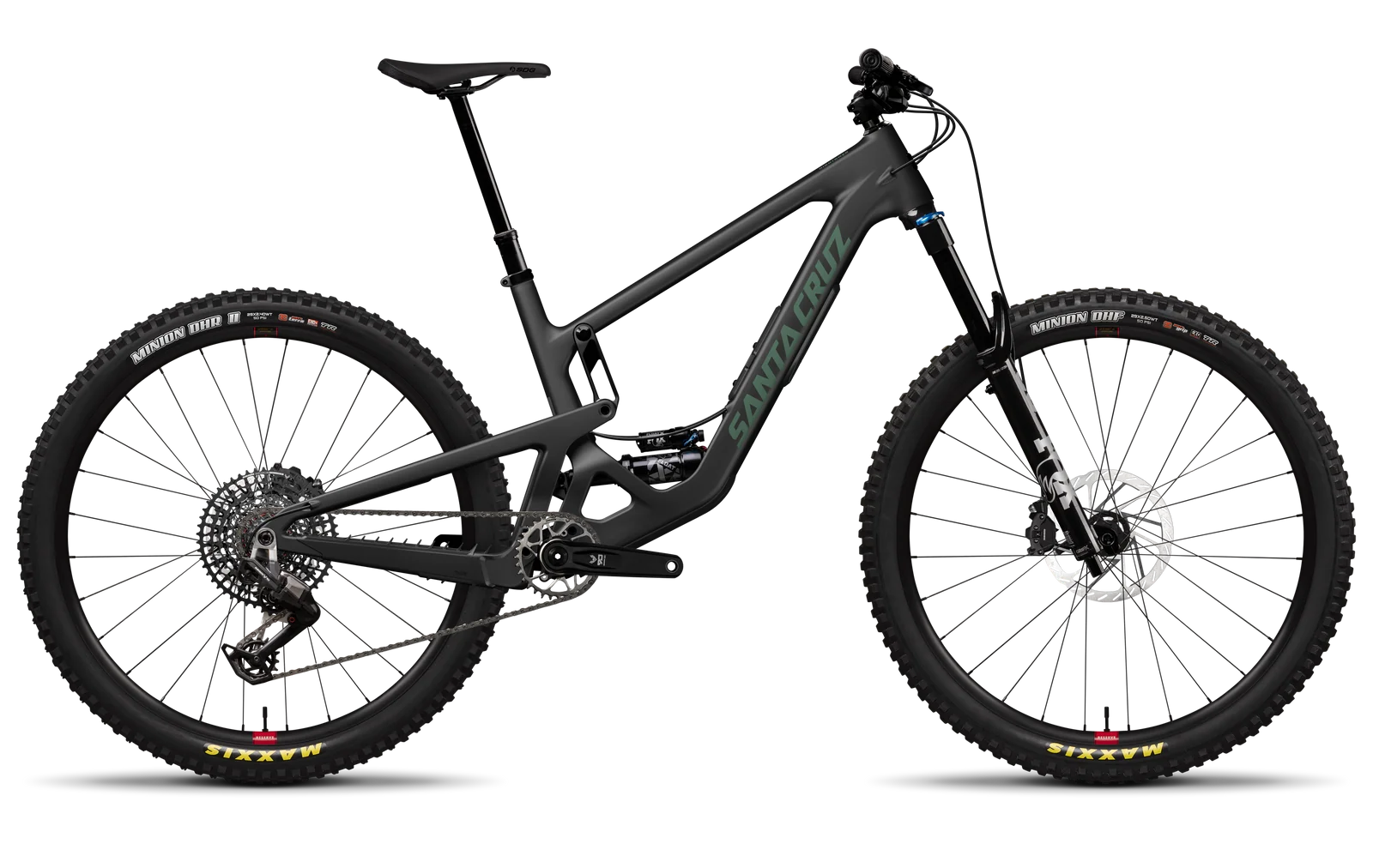

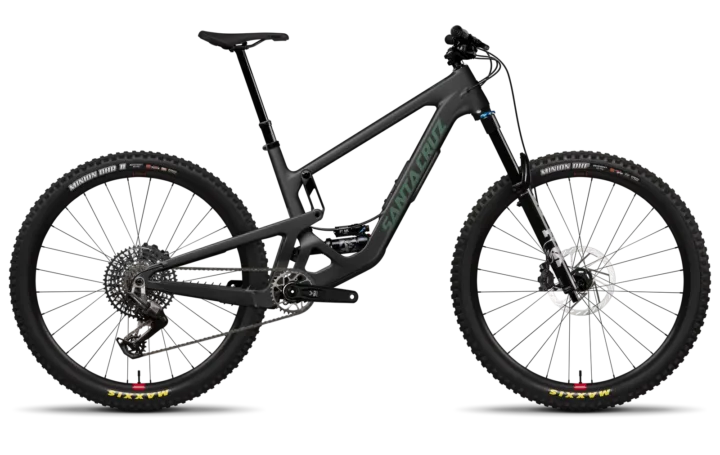

2026 Santa Cruz Hightower 90
Original specifications: 29" wheels · 34.06lbs / 15.45kg published weight · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000011- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $6,099.00
- Sizes
- S, M, L, XL, XXL
- Colors
- Matte Black, Gloss Brick Red
- Weight
- 34.06lbs / 15.45kg
- Geometry
- 5 manufacturer sizes
- In this record
- 22 specifications · 3 archived images · original MSRP · geometry
Original buildCarbon Fiber · 29"
Frameset
| Frame Construction | Carbon C 29" 150mm Travel VPP™ |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | FOX 36 Float Performance, Grip, 160mm |
| Rear Shock | FOX Float X Performance, 230x57.5 |
Drivetrain
| Shifters | SRAM 90 Eagle T-Type, 12spd |
|---|---|
| Rear Derailleur | SRAM 90 Eagle T-Type, 12spd |
| Crankset | SRAM 90 Eagle DUB T-Type Crankset, 32t All Sizes: 170mm |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| BB Shell Width | 73 mm |
| Cassette | SRAM XS 1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
Brakes
| Brakes | SRAM Maven Base |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 50 IS Integrated Headset |
|---|---|
| Handlebar | OneUp Aluminum Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise |
| Stem | OneUp Enduro Stem All Sizes: 42mm |
| Saddle | SDG Bel-Air V3 Lux-Alloy |
| Seatpost | OneUp Dropper Post, 31.6 S: 150mm, M: 180m, L/XL: 210mm, XXL: 240mm |
Wheels & Tires
| Hubs | (F) DT Swiss 370, 15x110, 6-Bolt, 28h / (R) DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h |
|---|---|
| Rims | (F) Reserve 30|TR AL / (R) Reserve 30|TR AL |
| Front Tire | Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO |
| Rear Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
| Wheel Size | 29" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 13 measurements
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Top tube | 572 mm | 595 mm | 614 mm | 636 mm | 662 mm |
| Head tube | 110 mm | 120 mm | 130 mm | 150 mm | 160 mm |
| Head-tube angle | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Seat-tube angle | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| Chainstay / rear center | 434 mm | 436 mm | 439 mm | 442 mm | 445 mm |
| Wheelbase | 1206 mm | 1237 mm | 1264 mm | 1296 mm | 1328 mm |
| Bottom-bracket drop | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Bottom-bracket height | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| Reach | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Standover height | 721 mm | 723 mm | 725 mm | 727 mm | 731 mm |
| Front center | 771 mm | 800 mm | 825 mm | 853 mm | 883 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Flattop, 12spd

SRAM Eagle 70 T-Type 12-Speed Chain
Replacement option
10-52t

SRAM XS-1275 GX Eagle Transmission 12-Speed Cassette Black, 10-52t
Model match
3C MaxxGrip, EXO

Maxxis Assegai EXO/Wide-Trail/TR 29in Tire Black/Tan, 29x2.5
Replacement option
More parts (8)Fewer parts
3C MaxxTerra, EXO+

Vittoria Mazza XC-Trail 29in Tire Anthracite/Black, XC-Trail/TNT, 29x2.4
Replacement option
32t All Sizes: 170mm

SRAM Eagle 90 DUB MTB Wide Crankset Black, 170mm, 32t
Model match
12spd

SRAM Eagle 90 Trigger 12-Speed Trigger Shifter
Model match
12spd
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO
- Rear tire
- Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+
- Drivetrain
- 12-speed
- Bottom bracket / shell
- SRAM DUB 73mm MTB Wide BB · 73 mm
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon C 29" 150mm Travel VPP™ · Fork: FOX 36 Float Performance, Grip, 160mm
Suspension
Evaluate the suspension →Archived: Fork: FOX 36 Float Performance, Grip, 160mm · Rear shock: FOX Float X Performance, 230x57.5
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM 90 Eagle T-Type, 12spd · Rear derailleur: SRAM 90 Eagle T-Type, 12spd · Crankset: SRAM 90 Eagle DUB T-Type Crankset, 32t All Sizes: 170mm · Bottom bracket: SRAM DUB 73mm MTB Wide BB · Cassette: SRAM XS 1275 Eagle T-Type, 10-52t · Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Brakes
Inspect the brakes →Archived: Brakes: SRAM Maven Base
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: (F) Reserve 30|TR AL / (R) Reserve 30|TR AL · Hubs: (F) DT Swiss 370, 15x110, 6-Bolt, 28h / (R) DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h · Front tire: Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO · Rear tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+
Controls and contact points
Archived: Headset: Cane Creek 50 IS Integrated Headset · Handlebar: OneUp Aluminum Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise · Stem: OneUp Enduro Stem All Sizes: 42mm · Seatpost: OneUp Dropper Post, 31.6 S: 150mm, M: 180m, L/XL: 210mm, XXL: 240mm · Saddle: SDG Bel-Air V3 Lux-Alloy
