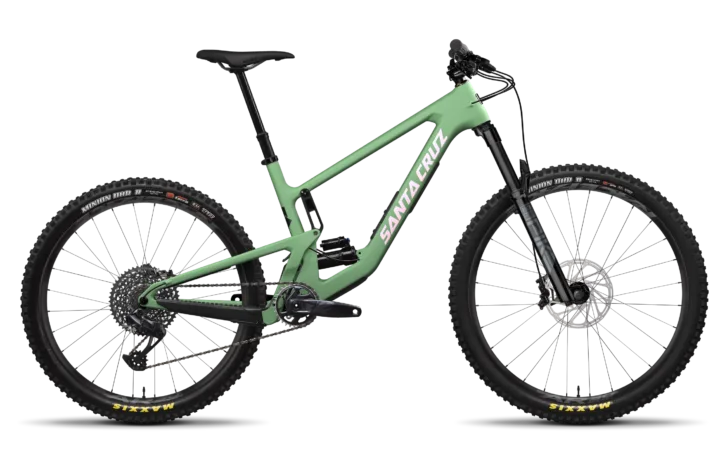

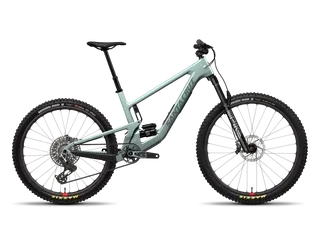

2024 Santa Cruz 5010 S
Original specifications: 29″ front / 27.5″ rear wheels · 31.23 lbs / 14.16 kg published weight · geometry for 6 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000291- Model year
- 2024
- Category
- Mountain
- Original MSRP
- $4,649.00
- Sizes
- XS, S, M, L, XL, XXL
- Colors
- Gloss Black, Matte Spumoni Green
- Weight
- 31.23 lbs / 14.16 kg
- Geometry
- 6 manufacturer sizes
- In this record
- 21 specifications · 3 archived images · original MSRP · geometry
Original buildCarbon Fiber · Mx
Frameset
| Frame Construction | Carbon C Frame |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Pike Select+, 140mm |
| Rear Shock | RockShox Super Deluxe Select+, 210x50 |
Drivetrain
| Shifters | SRAM GX Eagle, 12spd |
|---|---|
| Rear Derailleur | SRAM GX Eagle, 12spd |
| Crankset | SRAM GX Eagle 148 DUB 32t |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Cassette | SRAM XG1275 Eagle, 12spd, 10-50t |
| Chain | SRAM GX Eagle, 12spd |
Brakes
| Brakes | SRAM G2 R |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 40 IS Integrated Headset |
|---|---|
| Handlebar | Burgtec RideWide Alloy |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado, CroMo |
| Seatpost | OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer |
Wheels & Tires
| Hubs | (F) DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h / (R) DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h |
|---|---|
| Rims | (F) RaceFace AR Offeset 30, 29" / (R) RaceFace AR Offset 30, 27.5" |
| Front Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Wheel Size | Mx |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 13 measurements
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube | 370 mm | 380 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Top tube | 544/544 | 570/571 | 598/599 | 624/625 | 645/646 | 673/674 |
| Head tube | 90 mm | 100 mm | 115 mm | 125 mm | 145 mm | 160 mm |
| Head-tube angle | 65.2/64.9 | 65.2/64.9 | 65.2/64.9 | 65.2/64.9 | 65.2/64.9 | 65.1/64.9 |
| Seat-tube angle | 77.4/77.1 | 77.4/77.1 | 77.4/77.1 | 77.1/76.8 | 77.3/77 | 77.3/77.1 |
| Chainstay / rear center | 428/429 | 430/431 | 433/434 | 436/437 | 439/440 | 442/443 |
| Wheelbase | 1147/1147 | 1178/1178 | 1212/1213 | 1239/1240 | 1271/1271 | 1305/1306 |
| Bottom-bracket drop | 35/38 | 35/38 | 35/38 | 35/38 | 35/38 | 35/38 |
| Bottom-bracket height | 338/335 | 338/335 | 338/334 | 338/334 | 338/334 | 338/335 |
| Reach | 410/406 | 434/431 | 459/456 | 479/476 | 499/496 | 524/521 |
| Stack | 599/601 | 608/610 | 622/624 | 631/633 | 649/651 | 662/664 |
| Standover height | 694/688 | 703/698 | 706/700 | 708/703 | 711/706 | 717/712 |
| Front center | 719/718 | 748/748 | 779/779 | 803/803 | 832/832 | 863/863 |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
