Velopedia Bicycle Archive

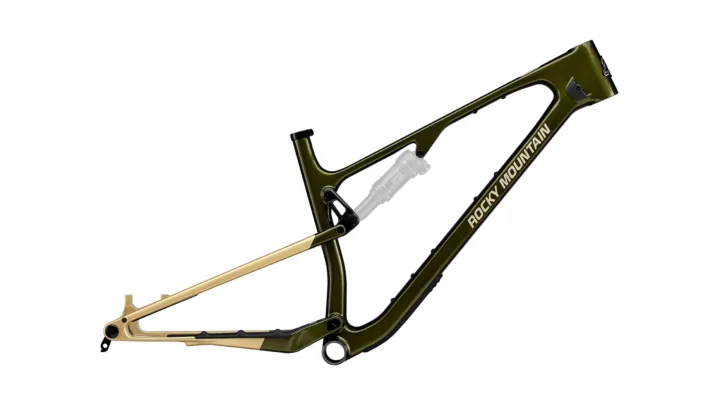

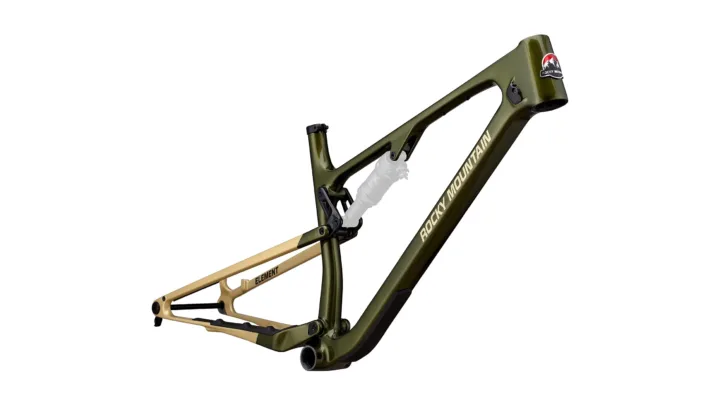

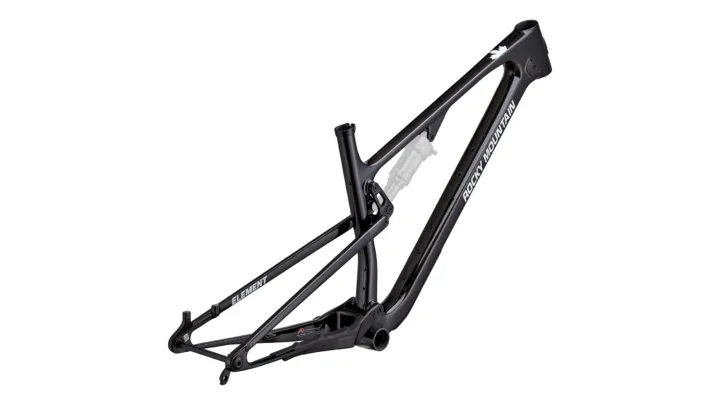

2025 Rocky Mountain Element Carbon Frameset
Original manufacturer specifications including 27.5"; 29" wheels, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $3,199.00
- Sizes
- XS, S, M, L, XL
- Colors
- Grey/Black/White, Green/Beige, White/Grey/Grey
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 3 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000728
Frameset
| Frame Construction | SMOOTHWALL™ Carbon | SMOOTHLINK SL™ Suspension | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Frame Material | Carbon Fiber |
Wheels & Tires
| Wheel Size | 27.5"; 29" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube | 380 mm | 420 mm | 445 mm | 480 mm |
| Effective top tube | 568 mm | 593 mm | 618 mm | 650 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 130 mm |
| Head-tube angle | 65° | 65° | 65° | 65° |
| Seat-tube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Chainstay / rear center | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1179 mm | 1208 mm | 1237 mm | 1271 mm |
| Bottom-bracket drop | 47 mm | 47 mm | 47 mm | 47 mm |
| Reach | 425 mm | 450 mm | 475 mm | 505 mm |
| Stack | 613 mm | 622 mm | 631 mm | 641 mm |
| Standover height | 811 mm | 810 mm | 807 mm | 806 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
SM geometry
Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. The chainstay of 436 mm sits somewhat longer than typical. The seat angle of 76.5° sits close to the middle of the group.
Compared with 195 distinct mountain geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.MD geometry
Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. The seat angle of 76.5° sits close to the middle of the group. Its reach of 450 mm sits close to the middle of the group.
Compared with 199 distinct mountain geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.LG geometry
Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. The seat angle of 76.5° sits close to the middle of the group. The chainstay of 436 mm sits close to the middle of the group.
Compared with 193 distinct mountain geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.XL geometry
Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. The chainstay of 436 mm sits somewhat shorter than typical. Its reach of 505 mm sits close to the middle of the group.
Compared with 166 distinct mountain geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 13 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Rocky Mountain Element Carbon Frameset · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: SMOOTHWALL™ Carbon | SMOOTHLINK SL™ Suspension | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
