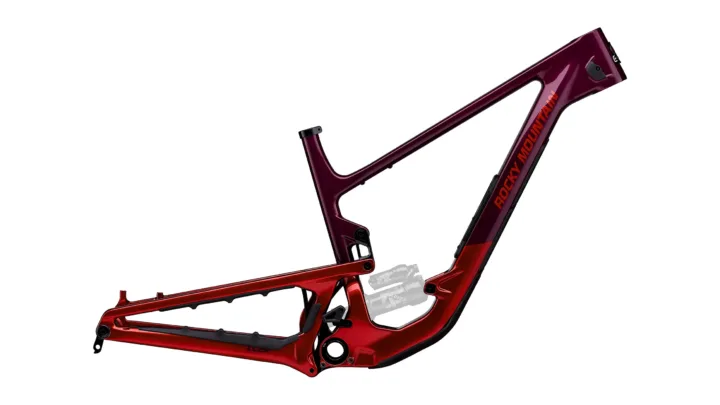

2025 Rocky Mountain Altitude Carbon Frameset
Original manufacturer specifications including 27.5"; 29" wheels, geometry for 3 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $3,499.00
- Sizes
- S, M, L, XL
- Colors
- Blue/White/Grey, Black/Carbon/Black, Purple/Red
- Geometry
- 3 manufacturer sizes · Geometry context
- Record coverage
- 4 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000860
Frameset
| Frame Construction | SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage |Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Frame Material | Carbon Fiber |
Cockpit & Contact Points
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
|---|
Wheels & Tires
| Wheel Size | 27.5"; 29" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | MD | LG | XL |
|---|---|---|---|
| Seat tube | 410 mm | 440 mm | 470 mm |
| Effective top tube | 584 mm | 610 mm | 642 mm |
| Head tube | 105 mm | 115 mm | 130 mm |
| Head-tube angle | 62.9° | 62.9° | 62.9° |
| Seat-tube angle | 77° | 77° | 77° |
| Chainstay / rear center | 440 mm | 450 mm | 450 mm |
| Wheelbase | 1243 mm | 1282 mm | 1319 mm |
| Bottom-bracket drop | 29 mm | 29 mm | 29 mm |
| Reach | 450 mm | 475 mm | 505 mm |
| Stack | 630 mm | 639 mm | 653 mm |
| Standover height | 791 mm | 797 mm | 808 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
MD geometry
Archive context: The head angle of 62.9° sits toward the slacker end. Its wheelbase of 1243 mm sits toward the longer end. The chainstay of 440 mm sits somewhat longer than typical.
Compared with 199 distinct mountain geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.LG geometry
Archive context: The head angle of 62.9° sits toward the slacker end. The chainstay of 450 mm sits toward the longer rear-center end. Its wheelbase of 1282 mm sits toward the longer end.
Compared with 193 distinct mountain geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.XL geometry
Archive context: The head angle of 62.9° sits toward the slacker end. The chainstay of 450 mm sits toward the longer rear-center end. Its wheelbase of 1319 mm sits toward the longer end.
Compared with 166 distinct mountain geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 13 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Rocky Mountain Altitude Carbon Frameset · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage |Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
