Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

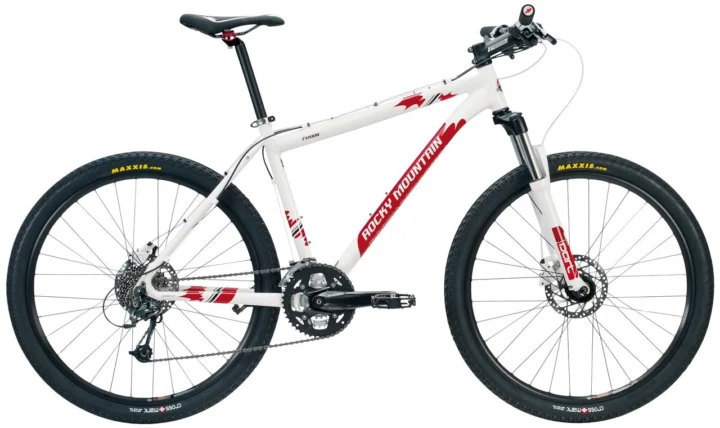

2011 Rocky Mountain Fusion
Original specifications: Shimano Deore · 9-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #23703- Model year
- 2011
- Category
- Mountain
- Sizes
- 15, 16.5, 18, 19, 20.5"
- Colors
- White/red
- In this record
- 25 specifications · archived image
Model history 14 other years
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- White/red
- Frame
- 6061 Double Butted Aluminum
- Original equipment
- Shimano mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 Double Butted Aluminum · Shimano mix · 26" wheels
Frameset
| Frame Construction | Aluminum |
|---|---|
| Frame Material | 6061 Double Butted Aluminum |
| Fork | RockShox Dart 2 TK, 100mm travel |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Deore Rapid Fire |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano M430, 44/32/22t teeth |
| Bottom Bracket | Shimano ES25 Octalink |
| Cassette | Shimano HG-50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG-53 |
| Pedals | RMB AM flat |
Brakes
| Brakes | Shimano BR-M445 Hydraulic Disc brakes, Shimano BR-M445 levers |
|---|
Cockpit & Contact Points
| Headset | Cane Creek A88 |
|---|---|
| Handlebar | RMB five 15 XC |
| Handlebar Extensions | Not included |
| Stem | RMB L7 |
| Saddle | WTB Pure V Comp |
| Seatpost | RMB XC, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: RMB RCC Disc, Rear: Shimano M475 disc |
|---|---|
| Rims | WTB SX24 |
| Spokes | Stainless stainless |
| Front Tire | 26 x 2.1'' Maxxis Crossmark |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
RMB XC
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (9)Fewer parts
Shimano BR-M445 Hydraulic Disc brakes
Shimano BR-M445 levers
Shimano ES25 Octalink
WTB Pure V Comp
Shimano M430
44/32/22t teeth
Shimano Alivio
Shimano Deore
Shimano Deore Rapid Fire
Cane Creek A88
WTB SX24
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.1'' Maxxis Crossmark
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano ES25 Octalink
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum · Fork: RockShox Dart 2 TK, 100mm travel
Suspension
Evaluate the suspension →Archived: Fork: RockShox Dart 2 TK, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano mix · Shifters: Shimano Deore Rapid Fire · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Deore · Crankset: Shimano M430, 44/32/22t teeth · Bottom bracket: Shimano ES25 Octalink · Cassette: Shimano HG-50 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano HG-53
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-M445 Hydraulic Disc brakes, Shimano BR-M445 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: WTB SX24 · Hubs: Front: RMB RCC Disc, Rear: Shimano M475 disc · Front tire: 26 x 2.1'' Maxxis Crossmark
Controls and contact points
Archived: Headset: Cane Creek A88 · Handlebar: RMB five 15 XC · Stem: RMB L7 · Seatpost: RMB XC, 27.2mm diameter · Saddle: WTB Pure V Comp · Pedals: RMB AM flat
