Lowest0.79:1
Highest3.82:1
Total range486%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

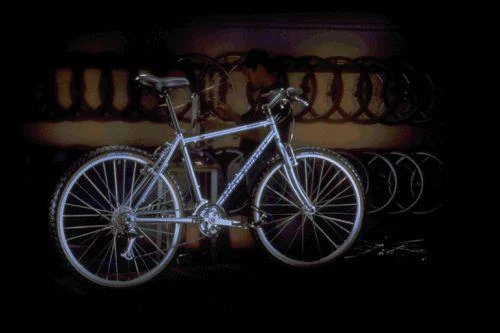

1998 Rocky Mountain Fusion
Original specifications: Mountain Mix drivetrain · 26" wheels · 26.4 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #75243- Model year
- 1998
- Category
- Mountain
- Original MSRP
- $699.00
- Sizes
- 14", 16", 17.5", 18.5", 19.5", 20"
- Colors
- Purple
- Weight
- 26.4 lb
- Geometry
- Legacy reference
- In this record
- 25 specifications · archived image · original MSRP · geometry
Model history 14 other years
Browse other years
Compare side by side
Identification clues
1998 archived details
- Published colors
- Purple
- Frame
- Chromoly, double-butted
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly, double-butted · Mountain Mix · 26" wheels
Frameset
| Frame Construction | Welded |
|---|---|
| Frame Material | Chromoly, double-butted |
| Fork | Rock Shox Indy |
| Fork Material | Aluminum/magnesium, triple-clamp crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Grip Shift ESP 500 |
| Front Derailleur | Shimano STX top-swing, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Grip Shift ESP 7.0 |
| Crankset | Shimano Alivio, 22/32/42 teeth |
| Bottom Bracket | Shimano BB-LP26 |
| Rear Cogs | 7-speed, 11 - 28 teeth |
| Chain | Taya TB-600, 1/2 x 3/32" |
| Pedals | Aluminum cage w/clips & straps |
Brakes
| Brakes | Avid 1D-20 brakes, Avid AD-1.0 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ritchey Logic |
|---|---|
| Handlebar | RMB aluminum |
| Handlebar Extensions | Not included |
| Stem | RMB forged aluminum |
| Saddle | Selle Italia Aventgarde 1 |
| Seatpost | RMB aluminum |
Wheels & Tires
| Hubs | Shimano Alivio |
|---|---|
| Rims | Sun Rims CR18 |
| Spokes | DT stainless steel, 2.0mm straight gauge |
| Front Tire | 26 x 2.10" Ritchey Mega-Bite Z-Max SC |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 4 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 555 mm |
| Head-tube angle | 70.5° |
| Seat-tube angle | 73.5° |
| Fork offset / rake | 40.6 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
26 x 2.10" Ritchey Mega-Bite Z-Max SC
Shimano BB-LP26
Selle Italia Aventgarde 1
More parts (3)Fewer parts
Shimano Alivio
22/32/42 teeth
1 1/8" threadless Ritchey Logic
Shimano Alivio
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Ritchey Mega-Bite Z-Max SC
- Drivetrain
- 7-speed
- Bottom bracket / shell
- Shimano BB-LP26
Equipment inspection checks 12 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Welded · Fork: Rock Shox Indy · Aluminum/magnesium, triple-clamp crown
Suspension
Evaluate the suspension →Archived: Fork: Rock Shox Indy
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Grip Shift ESP 500 · Front derailleur: Shimano STX top-swing, top-pull/clamp-on 31.8mm · Rear derailleur: Grip Shift ESP 7.0 · Crankset: Shimano Alivio, 22/32/42 teeth · Bottom bracket: Shimano BB-LP26 · Rear cogs: 7-speed, 11 - 28 teeth · Chain: Taya TB-600, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid 1D-20 brakes, Avid AD-1.0 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Sun Rims CR18 · Hubs: Shimano Alivio · Front tire: 26 x 2.10" Ritchey Mega-Bite Z-Max SC
Controls and contact points
Archived: Headset: 1 1/8" threadless Ritchey Logic · Handlebar: RMB aluminum · Stem: RMB forged aluminum · Seatpost: RMB aluminum · Saddle: Selle Italia Aventgarde 1 · Pedals: Aluminum cage w/clips & straps
