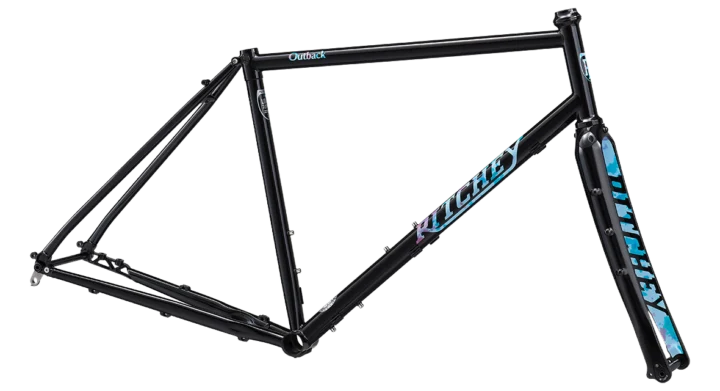

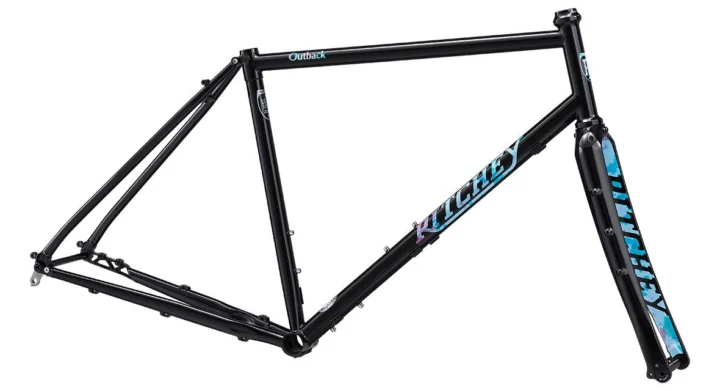

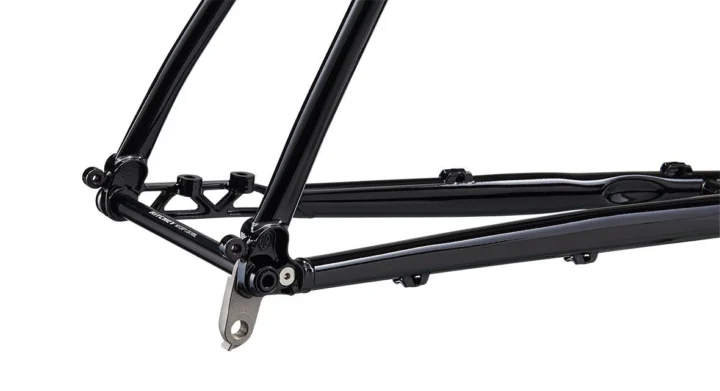

Ritchey Outback Frameset

Original specifications: 700C; 650B wheels · geometry for 6 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Gravel & Cyclocross
Original MSRP: $1,759.00
Sizes: XS, S, M, L, XL, XXL

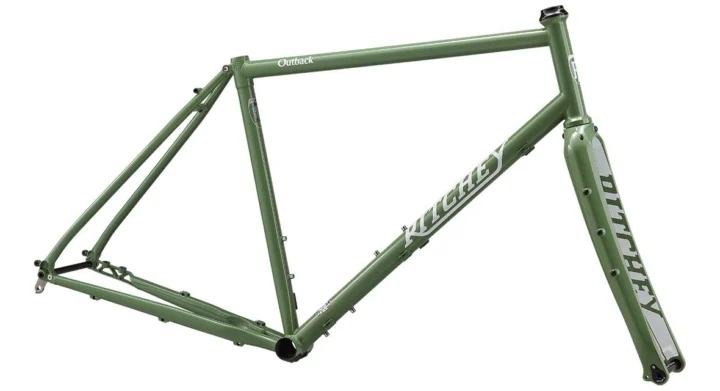

Colors: Aurora, Winter Sage
Geometry: 6 manufacturer sizes
In this record: 8 specifications · 8 archived images · original MSRP · geometry
Archive ID: 900000531

Original buildSteel · 700C; 650B

Manufacturer catalog

Published sizes and colors

6 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXLXXL

Published colors

AuroraWinter Sage

Frameset

Frame Construction	heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Frame Material	Steel
Fork	New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
Fork Material	Carbon Fiber

Drivetrain

Bottom Bracket	68mm - English threaded

Brakes

Brakes	Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately); Frame flat-mount bracket height: 10mm

Cockpit & Contact Points

Headset	WCS headset included (upper IS42/28.6 - 16mm stack height \| lower IS42/30)

Wheels & Tires

Wheel Size	700C; 650B

Geometry

6 sizes · 14 measurements

Frame measurements by size.

Measurement	XS	S	M	L	XL	XXL
Seat tube	410 mm	435 mm	460 mm	490 mm	525 mm	555 mm
Effective top tube	526 mm	541 mm	557 mm	570 mm	581 mm	595 mm
Top tube	508 mm	521 mm	535 mm	549 mm	561 mm	575 mm
Head tube	115 mm	130 mm	150 mm	170 mm	190 mm	220 mm
Head-tube angle	69.5°	70°	70.5°	71°	71°	71.5°
Seat-tube angle	74°	73.5°	73°	73°	73°	73°
Chainstay / rear center	453 mm	453 mm	453 mm	453 mm	453 mm	453 mm
Wheelbase	1047 mm	1053 mm	1061 mm	1070 mm	1081 mm	1091 mm
Bottom-bracket drop	70 mm	70 mm	68 mm	68 mm	68 mm	68 mm
Reach	373 mm	378 mm	383 mm	390 mm	395 mm	400 mm
Stack	532 mm	548 mm	567 mm	587 mm	606 mm	637 mm
Standover height	740 mm	759 mm	782 mm	806 mm	832 mm	862 mm
Fork offset / rake	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Fork length / axle-to-crown	393 mm	393 mm	393 mm	393 mm	393 mm	393 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
