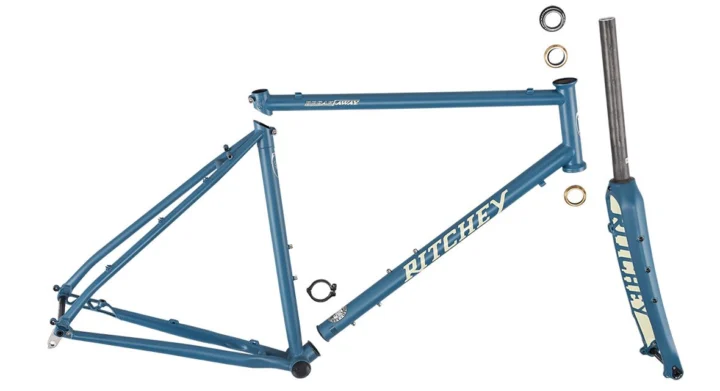

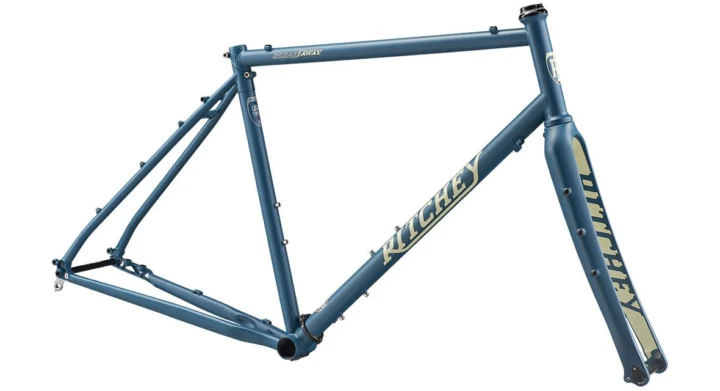

Ritchey Break-Away Outback Frameset

Cyclocross/Gravel bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $2,639.00
Sizes: XS; S; M; L; XL
Colors: Queso y Crema or Swell; Foam
Weight: Frame weight: 2,280g (size L - w/o thru-axle); Fork weight: 450g (uncut w/o thru-axle)
Geometry: 5 manufacturer sizes
Archive ID: 900000533
Catalog verified: August 13, 2026

Current market

Checking current listings…

Frameset

Frame Construction	heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Frame Material	Steel
Fork	New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
Fork Material	Carbon Fiber

Drivetrain

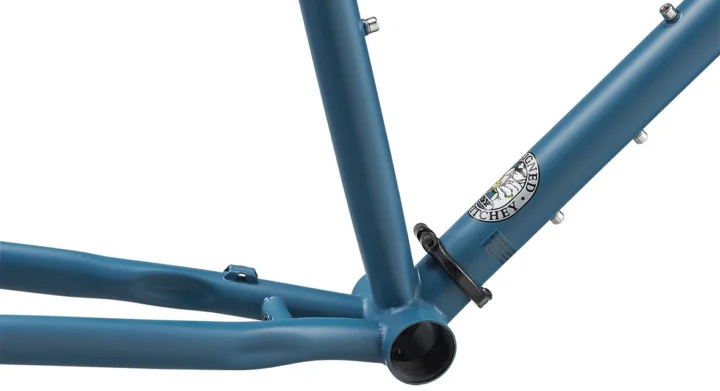

Bottom Bracket	68mm - English threaded

Brakes

Brakes	Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately); Frame flat-mount bracket height: 10mm; Housing stops on down tube optimized for mechanical brake coupling; Hydraulic brake compatible (please see brake manufacturer recommendation for traveling with hydraulic brakes)

Cockpit & Contact Points

Headset	WCS headset included (upper IS42/28.6 - 16mm stack height \| lower IS42/30)

Wheels & Tires

Wheel Size	700C; 650B

Size-specific frame data

Geometry

5 sizes · 14 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	XS	S	M	L	XL
Seat tube	440 mm	465 mm	490 mm	515 mm	540 mm
Effective top tube	526 mm	541 mm	557 mm	570 mm	581 mm
Top tube	510 mm	524 mm	539 mm	552 mm	563 mm
Head tube	115 mm	130 mm	150 mm	170 mm	190 mm
Head-tube angle	69.5°	70°	70.5°	71°	71°
Seat-tube angle	74°	73.5°	73°	73°	73°
Chainstay / rear center	453 mm	453 mm	453 mm	453 mm	453 mm
Wheelbase	1047 mm	1053 mm	1060 mm	1070 mm	1081 mm
Bottom-bracket drop	70 mm	70 mm	68 mm	68 mm	68 mm
Reach	373 mm	378 mm	383 mm	390 mm	395 mm
Stack	532 mm	548 mm	567 mm	587 mm	606 mm
Standover height	754 mm	773 mm	796 mm	818 mm	839 mm
Fork offset / rake	50 mm	50 mm	50 mm	50 mm	50 mm
Fork length / axle-to-crown	393 mm	393 mm	393 mm	393 mm	393 mm

Geometry source: Ritchey embedded first-party geometry matrix ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
