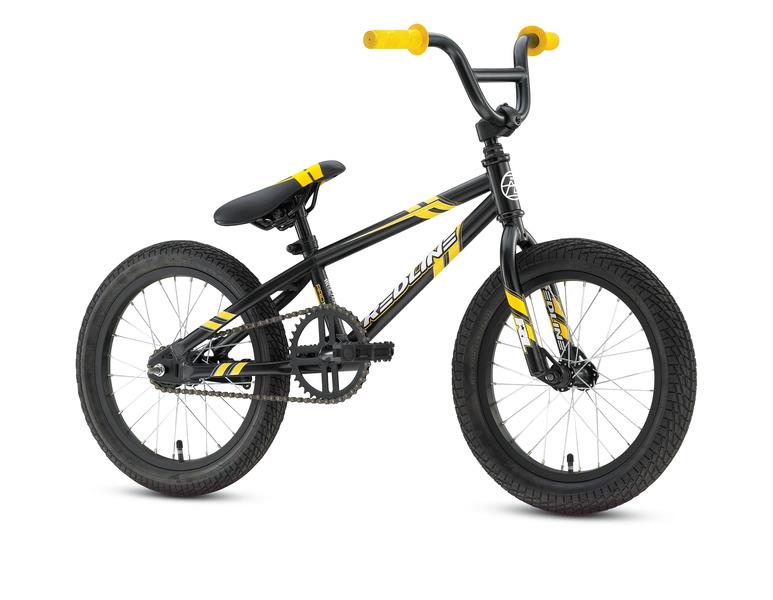

2011 Redline Raid 16
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- One size
- Colors
- Orange, Black
- Weight
- 21.2
- Archive ID
- 25613
Current market
Checking current listings…Frameset
| Frame Construction | Brazed/welded |
|---|---|
| Frame Material | Hi Ten |
| Fork | Redline Raid Hi Ten |
| Fork Material | Hi Ten, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Redline OPC, Redline 36t teeth |
| Bottom Bracket | VP OPC |
| Cassette | Redline |
| Rear Cogs | 1-speed, 16 teeth |
| Pedals | Redline PC Platform |
Cockpit & Contact Points
| Headset | 1" Threaded |
|---|---|
| Handlebar | Redline 21 x 5.25 Hi Ten |
| Handlebar Extensions | Not included |
| Stem | Quill |
| Saddle | Redline Raid |
| Seatpost | Steel, 22.2mm diameter |
Wheels & Tires
| Hubs | Front: Redline, Rear: Coaster Brake |
|---|---|
| Rims | Alloy, 28-hole |
| Front Tire | Front: 16 x 2.25" Kenda, Rear: 16 x 1.75" Kenda |
| Wheel Size | 16" wheels |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
