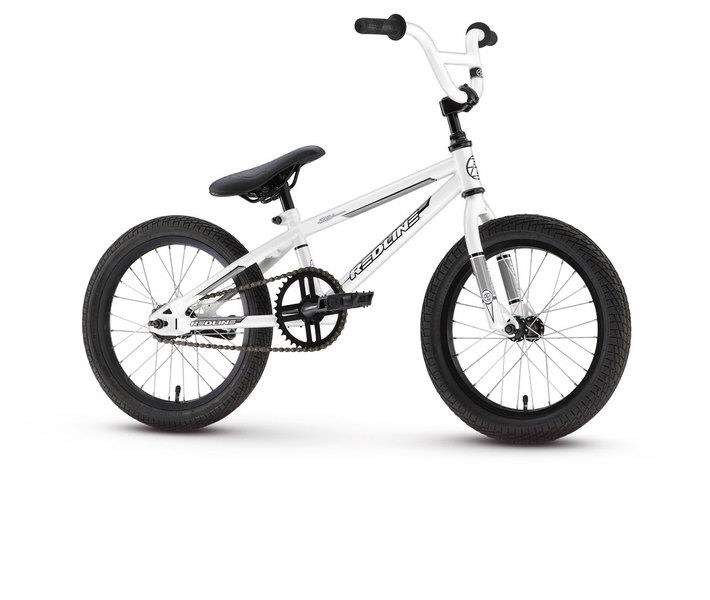

2012 Redline Raid 16

Archived: 2012 Redline Raid 16 · BMX · Published sizes: One Size

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Hit-Ten Steel · Fork: Hi-Ten steerer and legs

• Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Crankset: 1-Piece Steel 36t · Bottom bracket: American BB · Cassette: 16t · Chain: KMC Z410

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

• Identify the installed brake type and actuation before choosing replacement parts or service procedures. Inspect every installed pad and braking surface, then check the complete cable, hose or linkage path for damage, corrosion, leaks or binding.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Hubs: Redline Coaster Brake · Front tire: Kenda K841 16x2.25/1.75

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: Threaded 1" · Handlebar: Hit-Ten · Stem: Quill · Seatpost: Steel, 22.2 mm · Saddle: Redline Raid 16 · Pedals: platform

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
