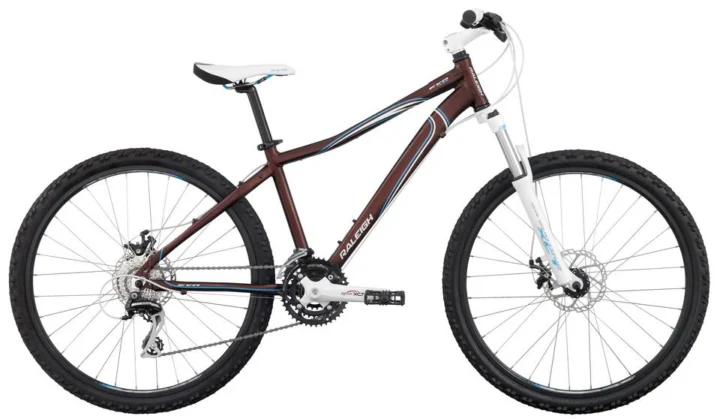

2013 Raleigh Eva 4.0

Original specifications.

Share owner experience

At a glance

Archive #9220551

Model year: 2013
Category: Mountain
Original MSRP: $500.00
Sizes: XS, S, M, L
Colors: Brown, Teal
In this record: 18 specifications · 2 archived images · original MSRP

Model history 4 other years

Browse other years

Compare side by side

Identification clues

2013 archived details

Published colors: Brown, Teal
Frame: Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSML

Published colors

BrownTeal

Frameset

Frame Material	Aluminum
Fork	SR Suntour XCT V4 100mm

Drivetrain

Shifters	Shimano EF51 EZ Fire
Front Derailleur	Shimano TX50
Rear Derailleur	Shimano Acera
Crankset	SR Suntour XCT 42/32/22t
Bottom Bracket	Sealed Cartridge
Cassette	Shimano HG41 11x32t
Rear Cogs	3x8 Speeds
Chain	KMC HG40
Pedals	Nylon Platform

Brakes

Brakes	Tektro Novela

Cockpit & Contact Points

Headset	1 1/8" Threadless
Handlebar	Steel 25mm Rise
Stem	Alloy
Saddle	Avenir XW2 Womens
Seatpost	Alloy Micro Adjust

Wheels & Tires

Front Tire	K-879 26x1.95

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/32/22T · 11–32T

Lowest0.69:1 Highest3.82:1 Total range555%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Chain · Original

KMC HG40

Search Amazon Search eBay

Retailer offers

SRAM PC-830 Chain One Color, 8 Speed

Replacement option

Competitive Cyclist ↗$11.00

Cassette · Original

Shimano HG41 11x32t

Search Amazon Search eBay

Front tire · Original

K-879 26x1.95 Replacement search: 26x1.95 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

More parts (1)Fewer parts

Rear derailleur · Original

Shimano Acera

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: K-879 26x1.95
Bottom bracket / shell: Sealed Cartridge

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Aluminum · Fork: SR Suntour XCT V4 100mm

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Suspension

Evaluate the suspension →

Archived: Fork: SR Suntour XCT V4 100mm

Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Drivetrain

Check drivetrain wear →

Archived: Shifters: Shimano EF51 EZ Fire · Front derailleur: Shimano TX50 · Rear derailleur: Shimano Acera · Crankset: SR Suntour XCT 42/32/22t · Bottom bracket: Sealed Cartridge · Cassette: Shimano HG41 11x32t · Rear cogs: 3x8 Speeds · Chain: KMC HG40

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro Novela

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Controls and contact points

Archived: Headset: 1 1/8" Threadless · Handlebar: Steel 25mm Rise · Stem: Alloy · Seatpost: Alloy Micro Adjust · Saddle: Avenir XW2 Womens · Pedals: Nylon Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters0 of 120 minimum characters Would you own one again? Optional

Add fit, maintenance and buyer detailsOptional · five additional fields

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Gallery2 images

Checking current listings…

Find this bike on eBay

Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.

Search 2013 model Search all years

Campaign

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
