Velopedia Bicycle Archive

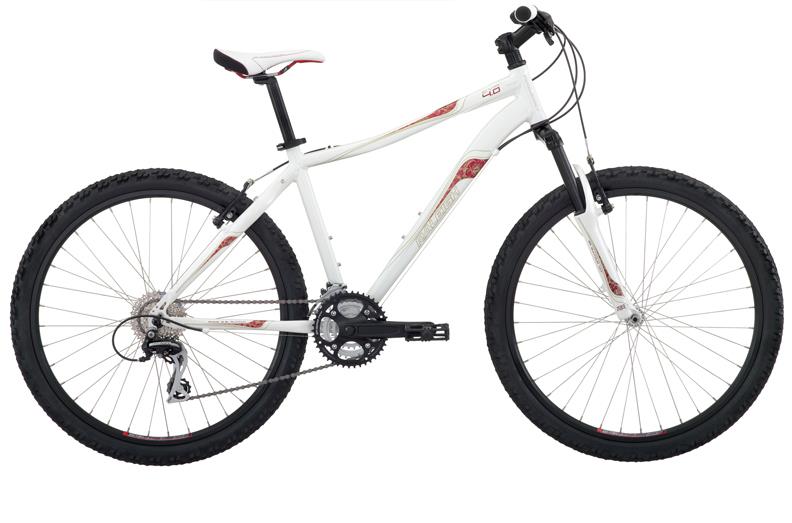

2010 Raleigh Eva 4.0
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- 13", 15", 17", 19"
- Colors
- Pearl White
- Archive ID
- 21038
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 SL Custom Butted Aluminum |
| Fork | Spinner Grind OS 2, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-50 EZ Fire Integrated |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano Acera |
| Crankset | SR Suntour XCM V2 T312, 22/32/42 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | SRAM PG-830 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC HG40 |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | Tektro Alloy V-brake brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless |
|---|---|
| Handlebar | Steel 25mm Rise x 620mm, 25.4 |
| Handlebar Extensions | Not included |
| Stem | Alloy Ahead 4-bolt |
| Saddle | Avenir 100 Series |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: JoyTech alloy disc, Rear: Shimano FH-RM308 QR |
|---|---|
| Rims | Weinmann XC-260, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda K-879 |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
