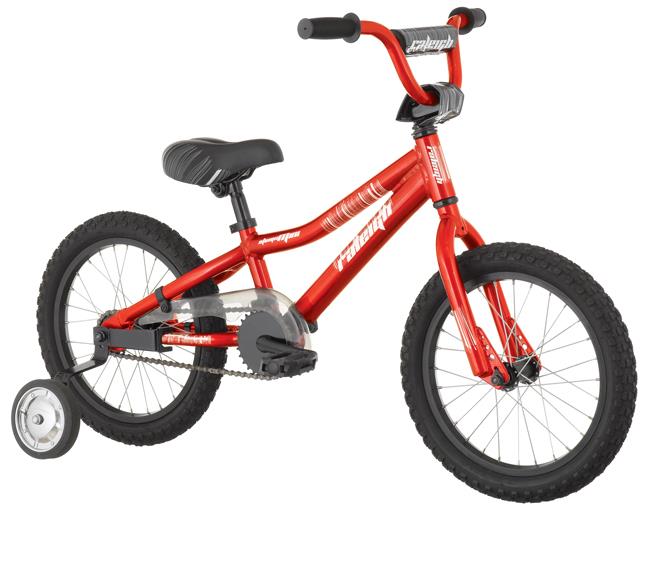

2010 Raleigh Atomic Mini

Original specifications: Juvenile Mix drivetrain · 16" wheels.

Share owner experience

At a glance

Archive #21050

Model year: 2010
Category: Kids
Sizes: 16" Boys
Colors: Red Orange
In this record: 22 specifications · archived image

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors: Red Orange
Frame: 6061 Alloy
Original equipment: Juvenile Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061 Alloy · Juvenile Mix · 16" wheels

Historical catalog variants

Archived sizes and colors

1 item record

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

16" Boys

Published colors

Red Orange

View 1 archived size/color combination

Size	Color
16" Boys	Red Orange

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	6061 Alloy
Fork Material	Alloy/steel, unicrown crown

Drivetrain

Component Group	Juvenile Mix
Crankset	Steel 1-piece 4.5", 28 teeth
Bottom Bracket	9 Piece Loose Ball
Cassette	Freewheel
Rear Cogs	1-speed, 18 teeth
Chain	KMC Z410
Pedals	Jr. Resin Platform

Brakes

Brakes	None front/coaster brake rear

Cockpit & Contact Points

Headset	1" threaded
Handlebar	Steel BMX Style
Handlebar Extensions	Not included
Stem	4-bolt Alloy/Steel Quill
Saddle	Jr BMX Padded
Seatpost	Steel pillar, 25.4mm diameter

Wheels & Tires

Hubs	Front: Steel Nutted, Rear: Steel Nutted Coaster
Rims	Alloy, 28-hole
Spokes	14ga. (2.0mm)
Front Tire	16 x 2.125" Comp III style
Wheel Size	16" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build28T · 18T · 1-speed

Ratio1.56:1

Estimated speed At 90 RPM Gear6.8 mph

Uses front tire 16×2.125; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

16 x 2.125" Comp III style Replacement search: 16x2.125 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Seatpost · Original

Steel pillar

25.4mm diameter

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 16 x 2.125" Comp III style
Drivetrain: 1-speed
Seatpost diameter: 25.4 mm
Bottom bracket / shell: 9 Piece Loose Ball

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · Alloy/steel, unicrown crown

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Drivetrain

Check drivetrain wear →

Archived: Group: Juvenile Mix · Crankset: Steel 1-piece 4.5", 28 teeth · Bottom bracket: 9 Piece Loose Ball · Cassette: Freewheel · Rear cogs: 1-speed, 18 teeth · Chain: KMC Z410

Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: None front/coaster brake rear

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 16" wheels · Rims: Alloy, 28-hole · Hubs: Front: Steel Nutted, Rear: Steel Nutted Coaster · Front tire: 16 x 2.125" Comp III style

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1" threaded · Handlebar: Steel BMX Style · Stem: 4-bolt Alloy/Steel Quill · Seatpost: Steel pillar, 25.4mm diameter · Saddle: Jr BMX Padded · Pedals: Jr. Resin Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
