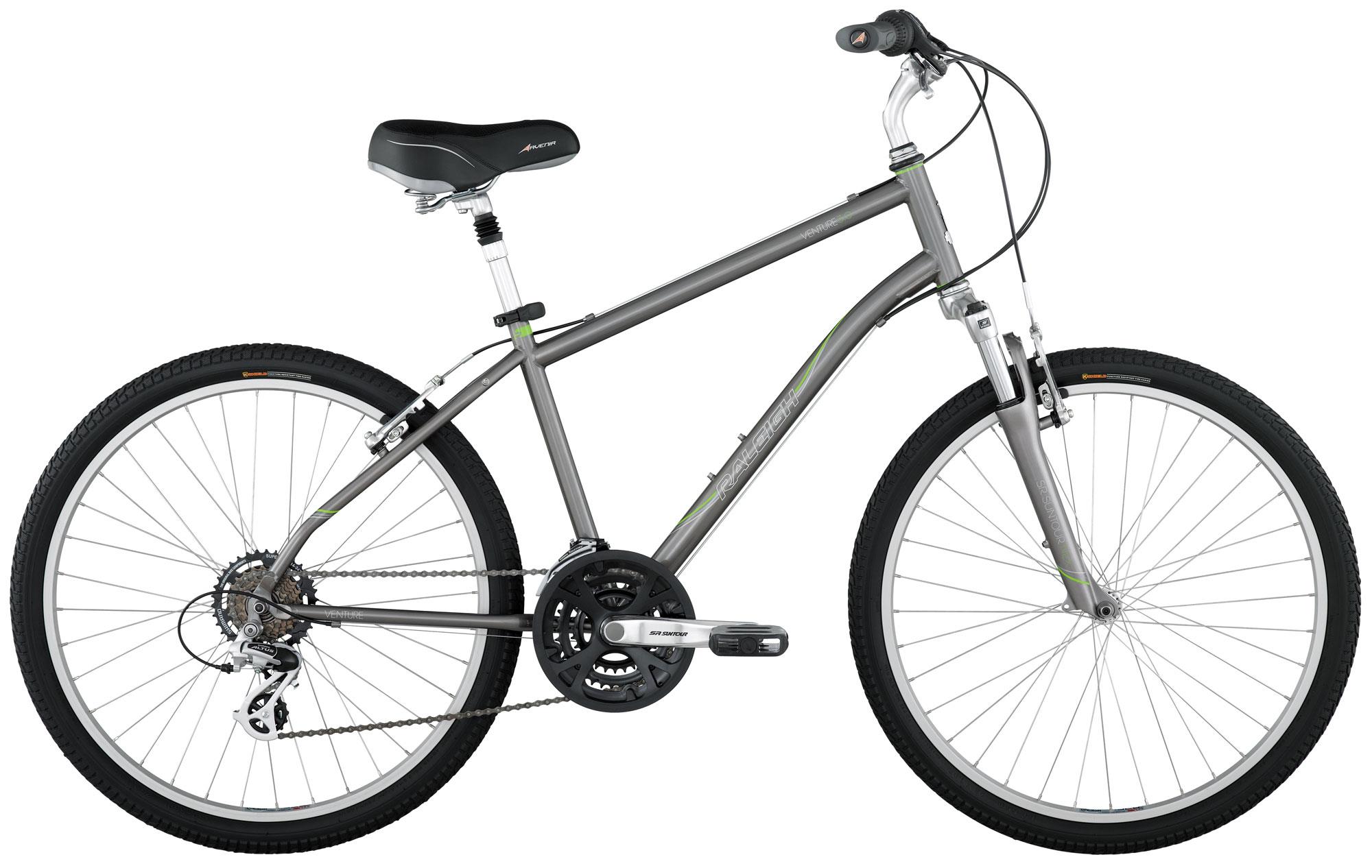

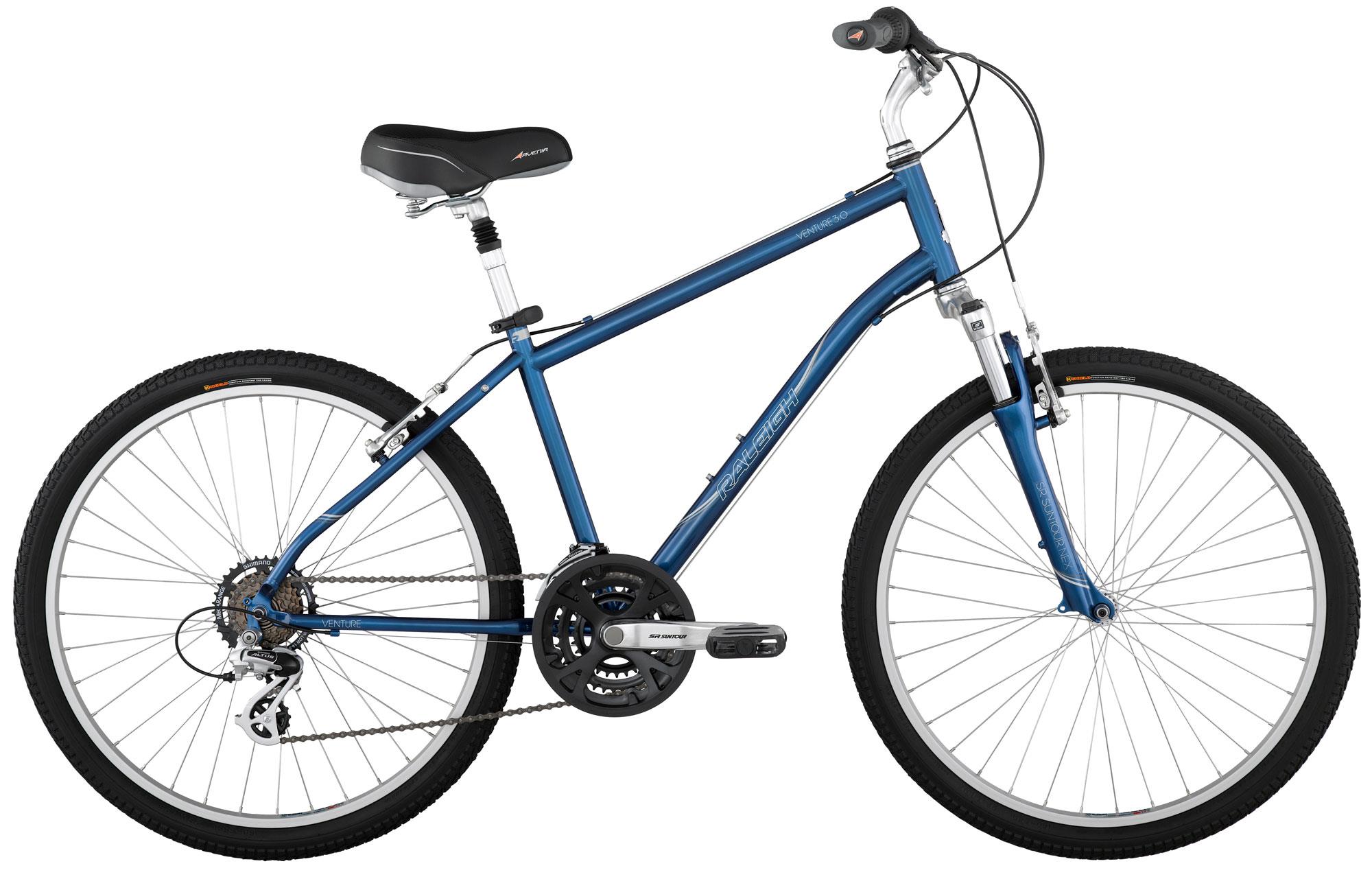

2012 Raleigh Venture 3.0

Original specifications.

Share owner experience

At a glance

Archive #1000225

Model year: 2012
Category: Hybrid
Original MSRP: $400.00
Sizes: S, M, L, XL
Colors: Blue, Pewter
In this record: 18 specifications · 3 archived images · original MSRP

Model history 7 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors: Blue, Pewter
Frame: steel

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildsteel

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

BluePewter

Frameset

Frame Material	steel
Fork	SR Nex 4100 63mm

Drivetrain

Shifters	Shimano Revo twist, 7spd
Front Derailleur	Shimano TX-51
Rear Derailleur	Shimano Altus 7spd
Crankset	SR Suntour XCC 48/38/28t
Bottom Bracket	sealed cartridge
Cassette	Shimano TZ31 7spd 14-34t
Chain	KMC Z-51
Pedals	Avenir Comfort Platform

Brakes

Brakes	Tektro linear pull

Cockpit & Contact Points

Headset	1 1/8 threaded
Handlebar	Steel riser
Stem	Alloy quill
Saddle	Avenir Comfort
Seatpost	Alloy Micro Adjust Suspension

Wheels & Tires

Rims	Weinmann CN520
Front Tire	Kenda K841A 26x1.95

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 14–34T · 7-speed

Lowest0.82:1 Highest3.43:1 Total range416%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
