Lowest0.79:1
Highest3.00:1
Total range382%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×1.95; rear size isn’t listed.
Velopedia Bicycle Archive

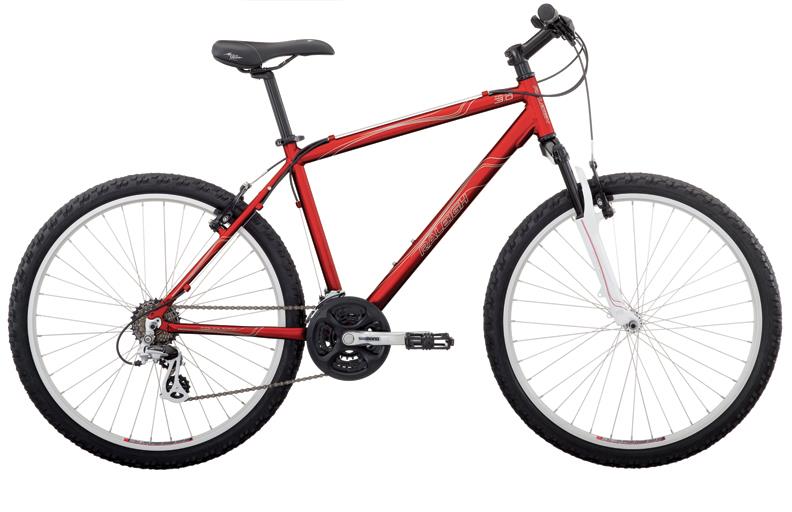

2010 Raleigh Talus 3.0
Original specifications: Shimano Altus · 7-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #21035- Model year
- 2010
- Category
- Mountain
- Sizes
- 12", 14", 16", 18", 20", 22"
- Colors
- Black, Matte Red/White
- In this record
- 26 specifications · archived image
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Black, Matte Red/White
- Frame
- Atomic 13 Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAtomic 13 Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | Spinner Grind 1, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-50 EZ Fire Integrated |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano Altus |
| Crankset | Shimano FC-M151, 22/32/42 teeth |
| Bottom Bracket | Sealed Mech 8pc |
| Cassette | Shimano MF-TZ21 |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z51 |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | Tektro Alloy V-brake brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless |
|---|---|
| Handlebar | Steel 25mm Rise x 620mm, 25.4 |
| Handlebar Extensions | Not included |
| Stem | Alloy Ahead 4-bolt |
| Saddle | Avenir 100 Series |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Weinmann XC-260, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda K-879 |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Alloy Micro Adjust
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano MF-TZ21
More parts (4)Fewer parts
26 x 1.95" Kenda K-879
Replacement search: 26x1.95 bicycle tire Before ordering: Check rim type and tire clearance.
Tektro Alloy V-brake brakes
Shimano EF-50 levers
Shimano FC-M151
22/32/42 teeth
Shimano Altus
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 1.95" Kenda K-879
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed Mech 8pc
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Spinner Grind 1, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Spinner Grind 1, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano EF-50 EZ Fire Integrated · Front derailleur: Shimano C50 · Rear derailleur: Shimano Altus · Crankset: Shimano FC-M151, 22/32/42 teeth · Bottom bracket: Sealed Mech 8pc · Cassette: Shimano MF-TZ21 · Rear cogs: 7-speed, 14 - 28 teeth · Chain: KMC Z51
Brakes
Inspect the brakes →Archived: Brakes: Tektro Alloy V-brake brakes, Shimano EF-50 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Weinmann XC-260, 36-hole · Hubs: Joytech Alloy QR · Front tire: 26 x 1.95" Kenda K-879
Controls and contact points
Archived: Headset: 1 1/8" threadless · Handlebar: Steel 25mm Rise x 620mm, 25.4 · Stem: Alloy Ahead 4-bolt · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Avenir 100 Series · Pedals: Avenir ATB Resin Platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
