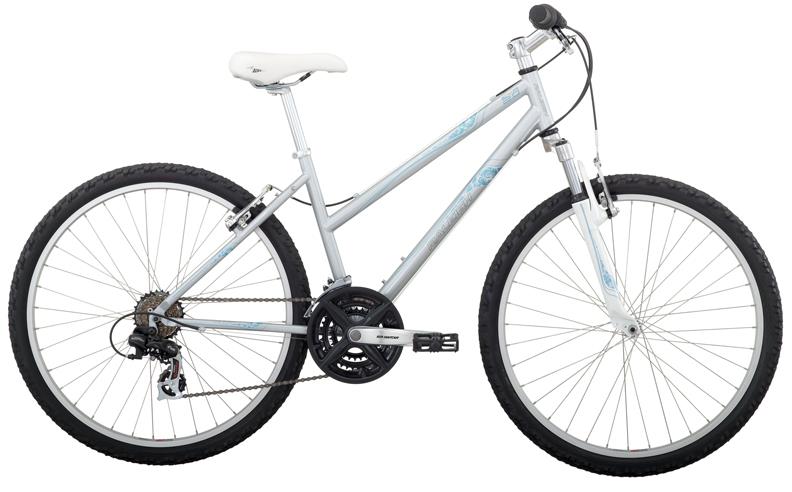

2010 Raleigh Eva 2.0
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- 12", 14", 16"
- Colors
- Silver
- Archive ID
- 21040
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Steel |
| Fork | HL 420E, 63mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano SL-RS35 Revo |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano TX-30 |
| Crankset | SR Suntour XCC T208, 28/38/48 teeth |
| Bottom Bracket | Sealed Mech 8pc |
| Cassette | Shimano MF-TZ21 |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z51 |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | ProMax Alloy V-Brake brakes, Alloy V-Brake levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless |
|---|---|
| Handlebar | Steel 25mm Rise x 620mm, 25.4 |
| Handlebar Extensions | Not included |
| Stem | Alloy Ahead 4-bolt |
| Saddle | Avenir 100 Series Women's |
| Seatpost | Alloy Micro Adjust, 25.6mm diameter |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Weinmann CN520, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda K-879 |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
