Lowest1.64:1
Highest3.29:1
Total range200%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.125; rear size isn’t listed.
Velopedia Bicycle Archive

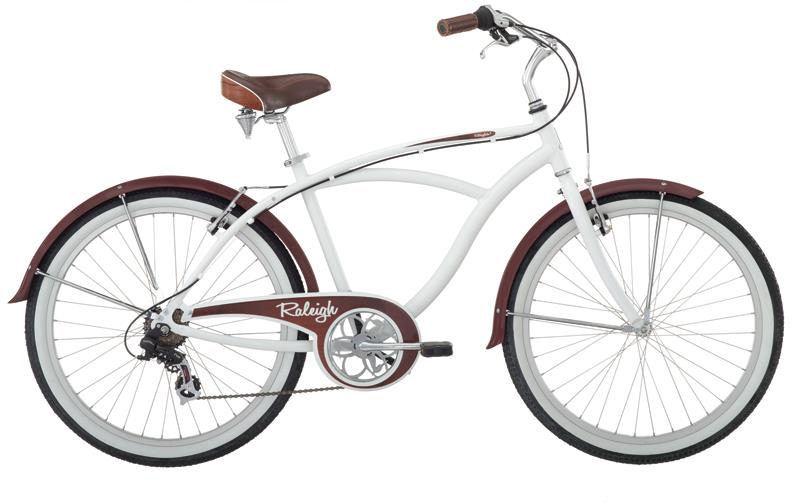

2010 Raleigh Retroglide 7
Original specifications: Cruiser Mix drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #21041- Model year
- 2010
- Category
- Cruiser
- Sizes
- 18"
- Colors
- White/Brown, Black
- In this record
- 25 specifications · archived image
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- White/Brown, Black
- Frame
- Atomic 13 Aluminum
- Original equipment
- Cruiser Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAtomic 13 Aluminum · Cruiser Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | Raleigh Cruiser |
| Fork Material | Steel, unicrown crown |
Drivetrain
| Component Group | Cruiser Mix |
|---|---|
| Shifters | Shimano SL-RS41 Revo Twist |
| Rear Derailleur | Shimano TX-31 |
| Crankset | Raleigh Heron, 46 teeth |
| Bottom Bracket | 8pc Loose Ball |
| Cassette | Shimano MF-TZ21 |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z51, 1/2 x 3/32" |
| Pedals | Cruiser Platform |
Brakes
| Brakes | Tektro V 120mm brakes, Tektro V-brake levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded steel |
|---|---|
| Handlebar | Steel Cruiser 700mm x 80mm |
| Handlebar Extensions | Not included |
| Stem | Alloy Cruiser |
| Saddle | Raleigh Cruiser Deluxe |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Alloy Joytech, Rear: Alloy Joytech Freewheel |
|---|---|
| Rims | Alex X303, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.125" Kenda Cruiser whitewall |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Alloy Micro Adjust
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano MF-TZ21
More parts (3)Fewer parts
26 x 2.125" Kenda Cruiser whitewall
Kenda .125 Cruiser whitewall on eBaySponsored links
Alex X303
36-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.125" Kenda Cruiser whitewall
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- 8pc Loose Ball
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Raleigh Cruiser · Steel, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Cruiser Mix · Shifters: Shimano SL-RS41 Revo Twist · Rear derailleur: Shimano TX-31 · Crankset: Raleigh Heron, 46 teeth · Bottom bracket: 8pc Loose Ball · Cassette: Shimano MF-TZ21 · Rear cogs: 7-speed, 14 - 28 teeth · Chain: KMC Z51, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro V 120mm brakes, Tektro V-brake levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex X303, 36-hole · Hubs: Front: Alloy Joytech, Rear: Alloy Joytech Freewheel · Front tire: 26 x 2.125" Kenda Cruiser whitewall
Controls and contact points
Archived: Headset: 1 1/8" threaded steel · Handlebar: Steel Cruiser 700mm x 80mm · Stem: Alloy Cruiser · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Raleigh Cruiser Deluxe · Pedals: Cruiser Platform
