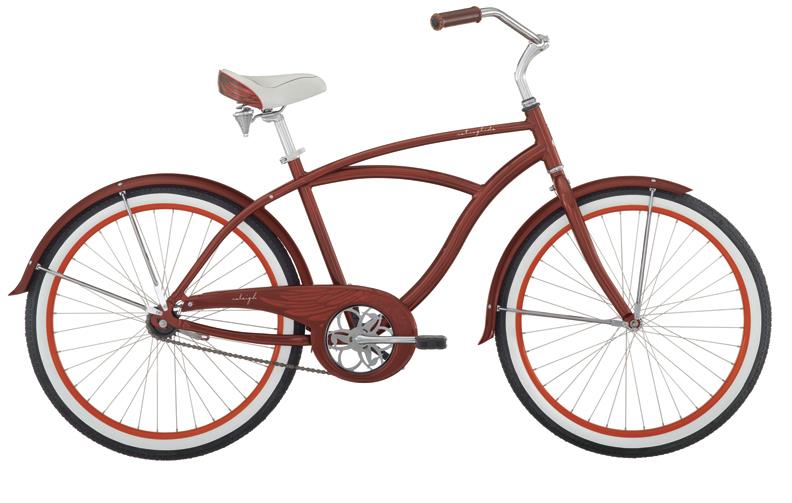

2010 Raleigh Retroglide

Original specifications: Cruiser Mix drivetrain · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #21043
Model year
2010
Category
Cruiser
Sizes
18"
Colors
Matte Light Blue/Red, Metallic Brown/Burnt Orange
In this record
23 specifications · archived image
Model history 9 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
Matte Light Blue/Red, Metallic Brown/Burnt Orange
Frame
Atomic 13 Aluminum
Original equipment
Cruiser Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAtomic 13 Aluminum · Cruiser Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

18"

Published colors

Matte Light Blue/RedMetallic Brown/Burnt Orange
View 2 archived size/color combinations
SizeColor
18"Matte Light Blue/Red
18"Metallic Brown/Burnt Orange

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialAtomic 13 Aluminum
ForkRaleigh Cruiser
Fork MaterialSteel, unicrown crown

Drivetrain

Component GroupCruiser Mix
CranksetRaleigh Heron, 46 teeth
Bottom Bracket8pc Loose Ball
CassetteCog
Rear Cogs1-speed, 20 teeth
ChainKMC Z51
PedalsCruiser Platform

Brakes

BrakesNone front/coaster brake rear

Cockpit & Contact Points

Headset1 1/8" threaded steel
HandlebarSteel Cruiser 700mm x 80mm
Handlebar ExtensionsNot included
StemAlloy Cruiser
SaddleRaleigh Cruiser Deluxe
SeatpostAlloy Micro Adjust, 27.2mm diameter

Wheels & Tires

HubsFront: Alloy Joytech, Rear: Shimano coaster
RimsWeinmann Amuz, 36-hole
SpokesStainless, 14ga. (2.0mm)
Front Tire26 x 2.125" Kenda Cruiser whitewall
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes46T · 20T · 1-speed
Ratio2.30:1
Estimated speed At 90 RPM Gear16.2 mph

Uses front tire 26×2.125; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
26 x 2.125" Kenda Cruiser whitewall
Search Amazon Search eBay
Retailer offers
Seatpost · Original
Alloy Micro Adjust

27.2mm diameter

Search Amazon Search eBay
Retailer offers
Chain · Original
KMC Z51
Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.125" Kenda Cruiser whitewall
Drivetrain
1-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
8pc Loose Ball
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: Raleigh Cruiser · Steel, unicrown crown

Drivetrain

Check drivetrain wear →

Archived: Group: Cruiser Mix · Crankset: Raleigh Heron, 46 teeth · Bottom bracket: 8pc Loose Ball · Cassette: Cog · Rear cogs: 1-speed, 20 teeth · Chain: KMC Z51

Brakes

Inspect the brakes →

Archived: Brakes: None front/coaster brake rear

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 26" wheels · Rims: Weinmann Amuz, 36-hole · Hubs: Front: Alloy Joytech, Rear: Shimano coaster · Front tire: 26 x 2.125" Kenda Cruiser whitewall

Controls and contact points

Archived: Headset: 1 1/8" threaded steel · Handlebar: Steel Cruiser 700mm x 80mm · Stem: Alloy Cruiser · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Raleigh Cruiser Deluxe · Pedals: Cruiser Platform
