Lowest1.31:1
Highest4.17:1
Total range319%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

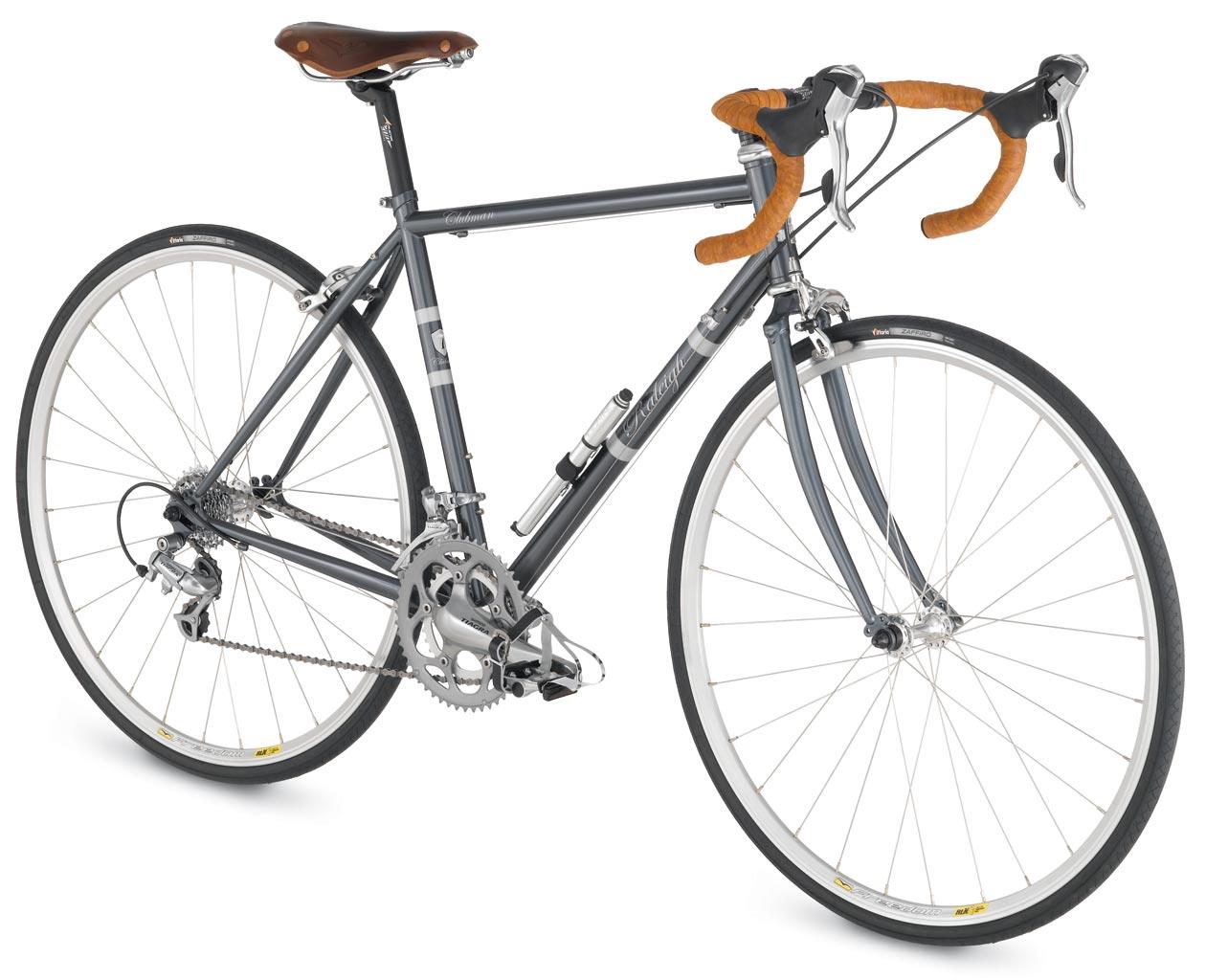

2009 Raleigh Clubman
Original specifications: Shimano Tiagra drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #18221- Model year
- 2009
- Category
- Road
- Original MSRP
- $1,100.00
- Sizes
- 50cm, 53cm, 55cm, 57cm, 59cm, 62cm
- Colors
- Graphite
- In this record
- 27 specifications · archived image · original MSRP
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Graphite
- Frame
- Reynolds 520
- Original equipment
- Shimano Tiagra
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 520 · Shimano Tiagra · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 520 |
| Fork | Raleigh |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Shimano Tiagra |
|---|---|
| Shifters | Shimano Tiagra STI |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano Tiagra |
| Crankset | Shimano Tiaga, 34/50 teeth |
| Bottom Bracket | Shimano |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 12 - 26 teeth |
| Chain | KMC Z9000, 1/2 x 3/32" |
| Pedals | Alloy cage toe/clip & leather strap |
Brakes
| Brakes | Tektro dual pivot brakes, Shimano Tiagra STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ahead 1 1/8" |
|---|---|
| Handlebar | Avenir 200 |
| Handlebar Extensions | Not included |
| Stem | Alloy 3D forged 31.8 |
| Saddle | Brooks Swift Leather w/cro-moly rails |
| Seatpost | Avenir 200 Series |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Freedom RLX 1.9, 28-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Spoke Nipples | Alloy |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Zaffiro
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Zaffiro on eBaySponsored links
More parts (6)Fewer parts
Brooks Swift Leather w/cro-moly rails
Shimano Tiaga
34/50 teeth
Shimano Tiagra
Shimano Tiagra
Shimano Tiagra STI
Freedom RLX 1.9
28-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Zaffiro
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Raleigh · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Tiagra · Shifters: Shimano Tiagra STI · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano Tiagra · Crankset: Shimano Tiaga, 34/50 teeth · Bottom bracket: Shimano · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 12 - 26 teeth · Chain: KMC Z9000, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro dual pivot brakes, Shimano Tiagra STI levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Freedom RLX 1.9, 28-hole · Hubs: Joytech Alloy QR · Front tire: 700 x 23c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" threadless Ahead 1 1/8" · Handlebar: Avenir 200 · Stem: Alloy 3D forged 31.8 · Seatpost: Avenir 200 Series · Saddle: Brooks Swift Leather w/cro-moly rails · Pedals: Alloy cage toe/clip & leather strap
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
