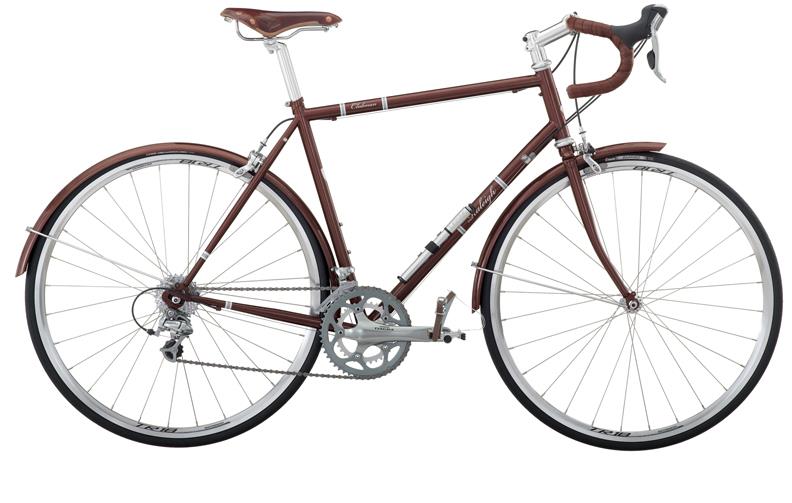

2010 Raleigh Clubman

Archived: 2010 Raleigh Clubman · Road/sport · Published sizes: 50cm xsm, 53cm sm, 55cm sm/md, 57cm md/lg, 59cm lg, 62cm XLG

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: TIG-welded · Fork: · 4130 chromoly, Lugged crown

• Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Group: Shimano Tiagra Mix · Shifters: Shimano Tiagra STI · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano Tiagra · Crankset: Shimano Tiagra Compact, 34/50 teeth · Bottom bracket: Shimano External · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 12 - 26 teeth · Chain: KMC Z9000

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro dual pivot brakes, Shimano Tiagra levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c wheels · Rims: Weinmann TR18 Double Wall, 28-hole · Hubs: Joytech Alloy Sealed Cartridge · Front tire: 700 x 23c Vittoria Zaffiro

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1 1/8" threadless Alloy Cup/Sealed Cartridge Bearing · Handlebar: Classic Aluminum Drop 26.0 · Stem: Alloy 3D forged · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Brooks Swift w/cromo rails · Pedals: Steel Clips w/Leather Straps

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
