Lowest1.70:1
Highest4.42:1
Total range260%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive
1997 Raleigh R700
Original specifications: Shimano 600 Ultegra drivetrain · 700c wheels · 22 lb published weight.
Planning to sell? Draft your listing
No archive photo is available for this record.
At a glance
Archive #63307- Model year
- 1997
- Category
- Road
- Original MSRP
- $1,199.99
- Sizes
- 50 cm, 54 cm, 56 cm, 58 cm, 60 cm
- Colors
- Pearl white
- Weight
- 22 lb
- Geometry
- Legacy reference
- In this record
- 26 specifications · original MSRP · geometry
Model history 3 other years
Browse other years
Compare side by side
Identification clues
1997 archived details
- Published colors
- Pearl white
- Frame
- Easton Elan 3
- Original equipment
- Shimano 600 Ultegra
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildEaston Elan 3 · Shimano 600 Ultegra · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Easton Elan 3 |
| Fork | Kinesis |
| Fork Material | Carbon fiber composite, aero crown |
Drivetrain
| Component Group | Shimano 600 Ultegra |
|---|---|
| Shifters | Shimano 600 Ultegra STI Dual Control |
| Front Derailleur | Shimano 600 Ultegra, bottom-pull/clamp-on 31.8 mm |
| Rear Derailleur | Shimano 600 Ultegra |
| Crankset | Shimano 600 Ultegra, 39/53 teeth |
| Bottom Bracket | Shimano BB-UN52, 115 mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 12 - 23 teeth |
| Chain | KMC SS-91S, 1/2 X 3/32" |
| Pedals | Wellgo RC-9701 clipless |
Brakes
| Brakes | Shimano 600 Ultegra Dual Pivot brakes, Shimano 600 Ultegra levers |
|---|
Cockpit & Contact Points
| Headset | 1" aluminum |
|---|---|
| Handlebar | Aluminum |
| Stem | Aluminum |
| Saddle | Selle Bassano Vuelta, chromoly rails |
| Seatpost | Aluminum micro-adjust, 27.2 mm diameter |
Wheels & Tires
| Hubs | Shimano 600 Ultegra |
|---|---|
| Rims | Mavic CXP 14, 28-hole |
| Spokes | Stainless steel, 1.8mm straight gauge |
| Spoke Nipples | Alloy nipples |
| Front Tire | 700 x 23c Continental Super Sport Ultra |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 569 mm |
| Head-tube angle | 73° |
| Seat-tube angle | 72.5° |
| Chainstay / rear center | 408.9 mm |
| Wheelbase | 990.6 mm |
| Fork offset / rake | 44.4 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Continental Super Sport Ultra
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Continental Super Sport on eBaySponsored links
Aluminum micro-adjust
27.2 mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano BB-UN52
115 mm spindle
More parts (6)Fewer parts
Wellgo RC-9701 clipless
Shimano 600 Ultegra
39/53 teeth
Shimano 600 Ultegra
Shimano 600 Ultegra STI Dual Control
Mavic CXP 14
28-hole
Shimano 600 Ultegra
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Continental Super Sport Ultra
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-UN52, 115 mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Kinesis · Carbon fiber composite, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano 600 Ultegra · Shifters: Shimano 600 Ultegra STI Dual Control · Front derailleur: Shimano 600 Ultegra, bottom-pull/clamp-on 31.8 mm · Rear derailleur: Shimano 600 Ultegra · Crankset: Shimano 600 Ultegra, 39/53 teeth · Bottom bracket: Shimano BB-UN52, 115 mm spindle · Rear cogs: 8-speed, 12 - 23 teeth · Chain: KMC SS-91S, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano 600 Ultegra Dual Pivot brakes, Shimano 600 Ultegra levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic CXP 14, 28-hole · Hubs: Shimano 600 Ultegra · Front tire: 700 x 23c Continental Super Sport Ultra
Controls and contact points
Archived: Headset: 1" aluminum · Handlebar: Aluminum · Stem: Aluminum · Seatpost: Aluminum micro-adjust, 27.2 mm diameter · Saddle: Selle Bassano Vuelta, chromoly rails · Pedals: Wellgo RC-9701 clipless
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
- Category
- Road race & triathlon

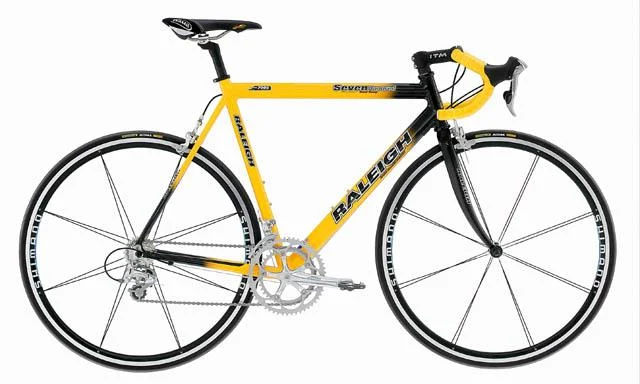

Same model · another year
