Lowest1.30:1
Highest4.33:1
Total range332%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive
1997 Raleigh R600
Original specifications: Shimano 105SC drivetrain · 700c wheels · 22 lb published weight.
Planning to sell? Draft your listing
No archive photo is available for this record.
At a glance
Archive #68662- Model year
- 1997
- Category
- Road
- Original MSRP
- $899.99
- Sizes
- 50 cm, 54 cm, 56 cm, 58 cm, 60 cm
- Colors
- Red
- Weight
- 22 lb
- Geometry
- Legacy reference
- In this record
- 26 specifications · original MSRP · geometry
Model history 5 other years
Browse other years
Compare side by side
Identification clues
1997 archived details
- Published colors
- Red
- Frame
- 7005 aluminum, butted
- Original equipment
- Shimano 105SC
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum, butted · Shimano 105SC · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, butted |
| Fork | Kinesis |
| Fork Material | Aluminum, bonded, aero crown |
Drivetrain
| Component Group | Shimano 105SC |
|---|---|
| Shifters | Shimano 105SC STI Dual Control |
| Front Derailleur | Shimano 105SC, bottom-pull/clamp-on 31.8 mm |
| Rear Derailleur | Shimano 105SC GS |
| Crankset | Shimano 105SC, 30/42/52 teeth |
| Bottom Bracket | Shimano BB-UN52, 118 mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 12 - 23 teeth |
| Chain | KMC SS-91S, 1/2 X 3/32" |
| Pedals | Aluminum cage w/clips & straps |
Brakes
| Brakes | Shimano 105SC Dual Pivot brakes, Shimano 105SC levers |
|---|
Cockpit & Contact Points
| Headset | 1" aluminum |
|---|---|
| Handlebar | Aluminum |
| Stem | Aluminum |
| Saddle | Selle Bassano Vuelta, chromoly rails |
| Seatpost | Aluminum micro-adjust, 27.2 mm diameter |
Wheels & Tires
| Hubs | Shimano 105SC |
|---|---|
| Rims | Mavic CXP 10, 32-hole |
| Spokes | Stainless steel, 1.8mm straight gauge |
| Spoke Nipples | Alloy nipples |
| Front Tire | 700 x 23c Continental Super Sport Ultra |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 569 mm |
| Head-tube angle | 73° |
| Seat-tube angle | 72.5° |
| Chainstay / rear center | 408.9 mm |
| Wheelbase | 990.6 mm |
| Fork offset / rake | 44.4 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Continental Super Sport Ultra
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Continental Super Sport on eBaySponsored links
Aluminum micro-adjust
27.2 mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano BB-UN52
118 mm spindle
More parts (3)Fewer parts
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Continental Super Sport Ultra
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-UN52, 118 mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Kinesis · Aluminum, bonded, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano 105SC · Shifters: Shimano 105SC STI Dual Control · Front derailleur: Shimano 105SC, bottom-pull/clamp-on 31.8 mm · Rear derailleur: Shimano 105SC GS · Crankset: Shimano 105SC, 30/42/52 teeth · Bottom bracket: Shimano BB-UN52, 118 mm spindle · Rear cogs: 8-speed, 12 - 23 teeth · Chain: KMC SS-91S, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano 105SC Dual Pivot brakes, Shimano 105SC levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic CXP 10, 32-hole · Hubs: Shimano 105SC · Front tire: 700 x 23c Continental Super Sport Ultra
Controls and contact points
Archived: Headset: 1" aluminum · Handlebar: Aluminum · Stem: Aluminum · Seatpost: Aluminum micro-adjust, 27.2 mm diameter · Saddle: Selle Bassano Vuelta, chromoly rails · Pedals: Aluminum cage w/clips & straps
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
- Category
- Road/sport
Same model · another year
R600
- Category
- Road race & triathlon
Same model · another year

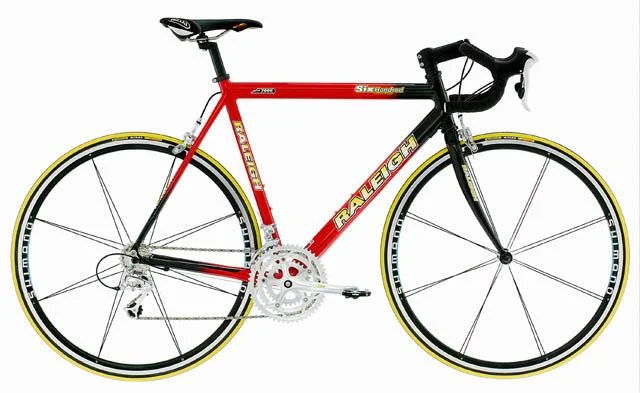

R600
