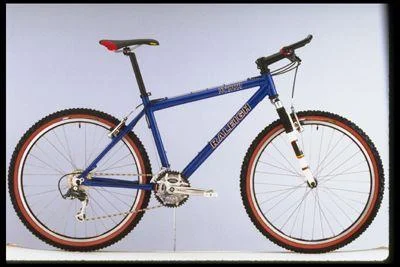

1997 Raleigh M800

Archived: Frame: TIG-welded · Fork: Rock Shox Indy SL · Magnesium, triple-clamp crown

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Fork: Rock Shox Indy SL

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Shimano Deore XT/LX · Shifters: Shimano Deore LX RapidFire SL · Front derailleur: Shimano Deore LX top-swing, top-pull/clamp-on 31.8 mm · Rear derailleur: Shimano Deore XT SGS · Crankset: Shimano Deore LX, 22/32/42 teeth · Bottom bracket: Shimano BB-LP26, 110 mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: KMC SS-91S, 1/2 x 3/32"

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano Deore LX V-Brake brakes, Shimano Deore LX levers

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Archived: Wheel size: 26" wheels · Rims: Mavic 221, 32-hole · Hubs: Front: Shimano Deore LX suspension, Rear: Shimano R080, silent clutch · Front tire: 26 x 2.10" IRC Mythos XC kevlar

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" threadless Tange-Seiki DX · Handlebar: Aluminum · Stem: Aluminum · Seatpost: Aluminum micro-adjust, 27.2 mm diameter · Saddle: Selle Bassano Vuelta, chromoly rails · Pedals: Wellgo WPD-800 clipless

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
