Lowest0.79:1
Highest3.82:1
Total range486%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2; rear size isn’t listed.
Velopedia Bicycle Archive
1997 Raleigh M40
Original specifications: Shimano Alivio/AceraX drivetrain · 26" wheels · 30.5 lb published weight.
Planning to sell? Draft your listing
No archive photo is available for this record.
At a glance
Archive #60315- Model year
- 1997
- Category
- Mountain
- Original MSRP
- $279.99
- Sizes
- 14.5", 16", 18", 20", 22", womens 16", womens 19"
- Colors
- Dark blue, Red
- Weight
- 30.5 lb
- Geometry
- Legacy reference
- In this record
- 27 specifications · original MSRP · geometry
Model history 7 other years
Browse other years
Compare side by side
Identification clues
1997 archived details
- Published colors
- Dark blue, Red
- Frame
- Chromoly seat tube/hi-tensile steel
- Original equipment
- Shimano Alivio/AceraX
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly seat tube/hi-tensile steel · Shimano Alivio/AceraX · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly seat tube/hi-tensile steel |
| Fork | Raleigh |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Shimano Alivio/AceraX |
|---|---|
| Shifters | Grip Shift MRX-170 |
| Front Derailleur | Shimano AceraX top-swing, bottom-pull/clamp-on 28.6 mm |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano Altus, 22/34/42 teeth |
| Bottom Bracket | Sealed cartridge, 116 mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 11 - 28 teeth |
| Chain | KMC SS-70S, 1/2 X 3/32" |
| Pedals | Resin |
Brakes
| Brakes | Shimano Altus brakes, aluminum levers |
|---|
Cockpit & Contact Points
| Headset | 1" steel |
|---|---|
| Handlebar | Steel |
| Handlebar Extensions | Not included |
| Stem | Steel |
| Saddle | Sella Stratos HyperPlush |
| Seatpost | Aluminum micro-adjust, 26.0 mm diameter |
Wheels & Tires
| Hubs | Shimano RM-40 |
|---|---|
| Rims | Weinmann 519, 36-hole |
| Spokes | Stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.00" multi-terrain |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 577.9 mm |
| Head-tube angle | 71° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 425.4 mm |
| Wheelbase | 1043.9 mm |
| Fork offset / rake | 44.4 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
26 x 2.00" multi-terrain
Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano Altus
22/34/42 teeth
Shimano Alivio
More parts (2)Fewer parts
Aluminum micro-adjust
26.0 mm diameter
Shimano RM-40
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00" multi-terrain
- Drivetrain
- 7-speed
- Seatpost diameter
- 26 mm
- Bottom bracket / shell
- Sealed cartridge, 116 mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Raleigh · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Alivio/AceraX · Shifters: Grip Shift MRX-170 · Front derailleur: Shimano AceraX top-swing, bottom-pull/clamp-on 28.6 mm · Rear derailleur: Shimano Alivio · Crankset: Shimano Altus, 22/34/42 teeth · Bottom bracket: Sealed cartridge, 116 mm spindle · Rear cogs: 7-speed, 11 - 28 teeth · Chain: KMC SS-70S, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Altus brakes, aluminum levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Weinmann 519, 36-hole · Hubs: Shimano RM-40 · Front tire: 26 x 2.00" multi-terrain
Controls and contact points
Archived: Headset: 1" steel · Handlebar: Steel · Stem: Steel · Seatpost: Aluminum micro-adjust, 26.0 mm diameter · Saddle: Sella Stratos HyperPlush · Pedals: Resin
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
- Category
- Mountain bike, non-suspension

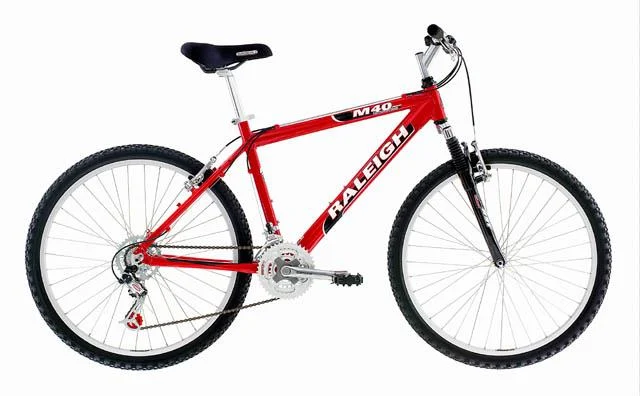

Same model · another year
