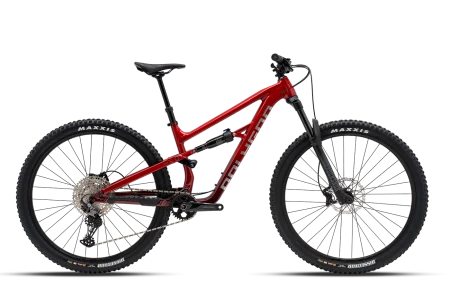

2022 Polygon Siskiu T7

Archived: Frame: ALX TRAIL FRAME 140MM TRAVEL (27.5”) / 135MM TRAVEL (29”), TAPER H/T · Fork: ROCKSHOX RECON RL BOOST 15X110MM, 150MM (27.5”) / 140MM (29”) TRAVEL

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: ROCKSHOX RECON RL BOOST 15X110MM, 150MM (27.5”) / 140MM (29”) TRAVEL · Rear shock: ROCKSHOX DELUXE PLUS SELECT SPECIAL TUNING E2E:210X55MM, HARDWARE:8MMX25MM

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SHIMANO DEORE SL-M6100-R, 1x12-SPEED TRIGGER · Rear derailleur: SHIMANO DEORE RD-M6100-SGS DIRECT ATTACH · Crankset: 12 SPEED 11-51T · Bottom bracket: SHIMANO 2-PIECE CRANKSET BSA THREADED · Cassette: SHIMANO DEORE CS-M6100 10-51T MICROSPLINE · Chain: KMC X12 12SPEED

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: TEKTRO HD-M735 HYDRAULIC DISC BRAKES; Levers: TEKTRO LEVER; Rotors: SHIMANO SM-RT54 180mm CENTER-LOCK

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheels: ENTITY XL2 DISC · Rims: 584 / 622-35 32H FOR TYRE 584 / 622-54/76 TUBELESS READY · Front tire: PERFORMANCE TIRE, 27.5"X2.60"/29”X2.60" · Rear tire: PERFORMANCE TIRE, 27.5"X2.60"/29”X2.60"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40 · Handlebar: ENTITY XPERT, ALLOY W:780MM R:20MM BB:35MM · Stem: ENTITY XPERT, ALLOY E:35MM R:7DEG BB:35MM · Seatpost: DROPPER POST TRANZ-X JD-YSP23JL 150mm (S, M) / 170mm TRAVEL (L, XL) · Saddle: ENTITY XTEND · Pedals: -

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.
