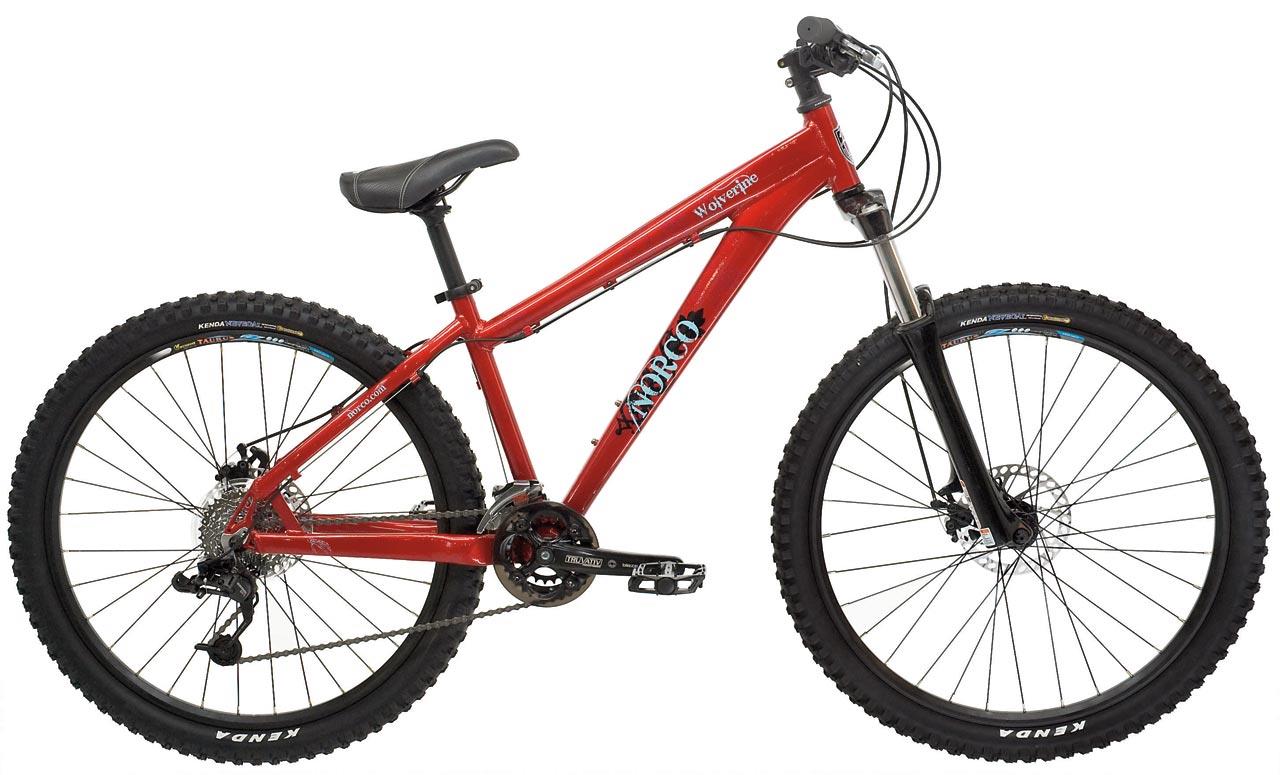

2009 Norco Wolverine

Original specifications: SRAM X4 · 8-speed · mechanical rear derailleur · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #16791
Model year
2009
Category
Mountain
Sizes
12.5", 15", 17", 18.5", 20", 22"
Colors
Pitch Black, Red
In this record
25 specifications · archived image
Model history 13 other years

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors
Pitch Black, Red
Frame
Hydraformed Aluminum
Original equipment
SRAM Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildHydraformed Aluminum · SRAM Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

12 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

12.5"15"17"18.5"20"22"

Published colors

Pitch BlackRed
View 12 archived size/color combinations
SizeColor
12.5"Pitch Black
15"Pitch Black
17"Pitch Black
18.5"Pitch Black
20"Pitch Black
22"Pitch Black
12.5"Red
15"Red
17"Red
18.5"Red
20"Red
22"Red

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialHydraformed Aluminum
ForkMarzocchi 22R, 120mm travel
Fork MaterialSingle

Drivetrain

Component GroupSRAM Mix
ShiftersSRAM X.4
Front DerailleurShimano Acera
Rear DerailleurSRAM X.4
CranksetTruVativ Blaze, 22/32 teeth
Bottom BracketTruVativ Power Spline
CassetteSRAM PG-820
Rear Cogs8-speed, 12 - 32 teeth
ChainKMC Z72, 1/2 x 3/32"
PedalsFlat alloy

Brakes

BrakesHayes MX-4 mechanical w/6" rotor brakes, Tektro alloy levers

Cockpit & Contact Points

Headset1 1/8" threadless CH-281
HandlebarAlloy
Handlebar ExtensionsNot included
StemAlloy
SaddleNorco Shore
SeatpostAlloy, 27.2mm diameter

Wheels & Tires

HubsKT disc
RimsWeinmann Taurus 2000, 32-hole
Front Tire26 x 2.35" Kenda Nevegal
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes32/22T · 12–32T · 8-speed
Lowest0.69:1 Highest2.67:1 Total range388%
Estimated speed At 90 RPM Lowest gear4.9 mph Highest gear19.1 mph

Uses front tire 26×2.35; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z72

1/2 x 3/32"

Retailer offers
Seatpost · Original
Alloy

27.2mm diameter

Retailer offers
Cassette · Original
SRAM PG-820
More parts (4)Fewer parts
Front tire · Original
26 x 2.35" Kenda Nevegal
Front derailleur · Original
Shimano Acera
Rear derailleur · Original
SRAM X.4
Shifters · Original
SRAM X.4

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.35" Kenda Nevegal
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
TruVativ Power Spline
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Marzocchi 22R, 120mm travel · Single

Archived: Fork: Marzocchi 22R, 120mm travel

Archived: Group: SRAM Mix · Shifters: SRAM X.4 · Front derailleur: Shimano Acera · Rear derailleur: SRAM X.4 · Crankset: TruVativ Blaze, 22/32 teeth · Bottom bracket: TruVativ Power Spline · Cassette: SRAM PG-820 · Rear cogs: 8-speed, 12 - 32 teeth · Chain: KMC Z72, 1/2 x 3/32"

Archived: Brakes: Hayes MX-4 mechanical w/6" rotor brakes, Tektro alloy levers

Archived: Wheel size: 26" wheels · Rims: Weinmann Taurus 2000, 32-hole · Hubs: KT disc · Front tire: 26 x 2.35" Kenda Nevegal

Controls and contact points

Archived: Headset: 1 1/8" threadless CH-281 · Handlebar: Alloy · Stem: Alloy · Seatpost: Alloy, 27.2mm diameter · Saddle: Norco Shore · Pedals: Flat alloy
