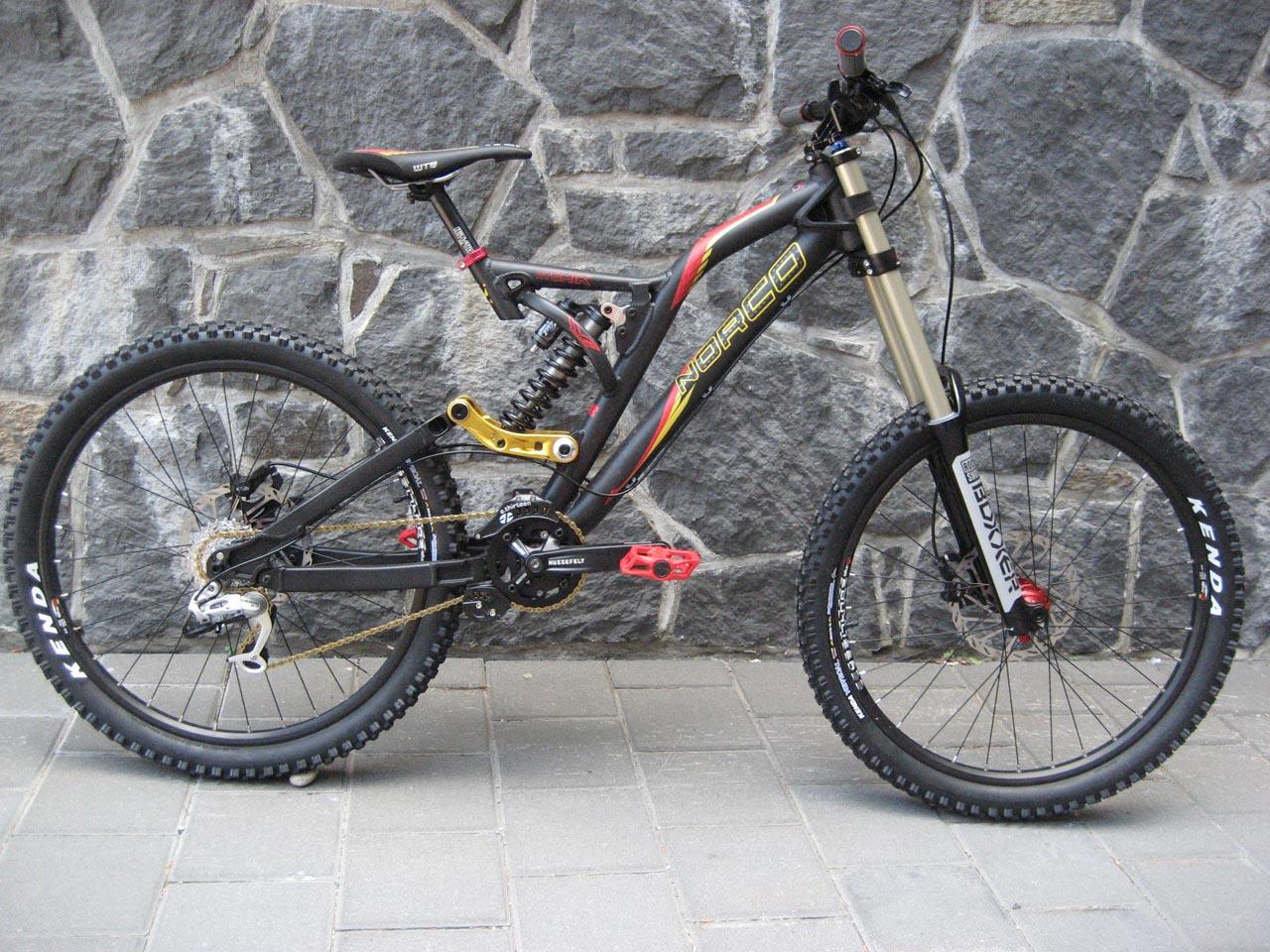

2009 Norco Atomik

Original specifications: SRAM X7 · 8-speed · mechanical rear derailleur · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #15981
Model year
2009
Category
Mountain
Original MSRP
$3,000.00
Sizes
S, M
Colors
Black
In this record
26 specifications · 2 archived images · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors
Black
Frame
Hydraformed Aluminum
Original equipment
SRAM Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildHydraformed Aluminum · SRAM Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

SM

Published colors

Black
View 2 archived size/color combinations
SizeColor
SBlack
MBlack

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialHydraformed Aluminum
ForkRockShox Boxxer Race, 203mm travel
Fork MaterialDual
Rear ShockFox DHX 3.0, 198 - 225mm adjustable travel

Drivetrain

Component GroupSRAM Mix
ShiftersSRAM X.5
Rear DerailleurSRAM X.7
CranksetTruVativ Hussefelt w/E-13 LG-1, 36 teeth
Bottom BracketTruVativ Howitzer
CassetteSRAM PG-830
Rear Cogs8-speed, 11 - 30 teeth
ChainKMC X8, 1/2 x 3/32"
PedalsFlat Pedal

Brakes

BrakesAvid Juicy 3 w/8" rotor brakes, Avid Juicy 3 levers

Cockpit & Contact Points

Headset1 1/8" FSA Orbit E Reducer 1.5 to 1 1/8"
HandlebarTruVativ Hussefelt
Handlebar ExtensionsNot included
StemFUNN RSX direct mount
SaddleWTB Silverado w/chromoly rails
SeatpostTruvativ XR, 27.2mm diameter

Wheels & Tires

HubsFront: KT Q-Lite, 20mm, red, Rear: KT Q-Lite, 150 x 12mm, red
RimsSun Equalizer 29mm, 32-hole
SpokesStainless steel, 14ga. (2.0mm)
Front Tire26 x 2.50" Kenda Nevegal DH Stick-E
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes36T · 11–30T · 8-speed
Lowest1.20:1 Highest3.27:1 Total range273%
Estimated speed At 90 RPM Lowest gear8.7 mph Highest gear23.7 mph

Uses front tire 26×2.5; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC X8

1/2 x 3/32"

Cassette · Original
SRAM PG-830
More parts (5)Fewer parts
Front tire · Original
26 x 2.50" Kenda Nevegal DH Stick-E
Saddle · Original
WTB Silverado w/chromoly rails
Rear derailleur · Original
SRAM X.7
Shifters · Original
SRAM X.5
Headset · Original
1 1/8" FSA Orbit E Reducer 1.5 to 1 1/8"

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.50" Kenda Nevegal DH Stick-E
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
TruVativ Howitzer
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: RockShox Boxxer Race, 203mm travel · Dual

Archived: Fork: RockShox Boxxer Race, 203mm travel · Rear shock: Fox DHX 3.0, 198 - 225mm adjustable travel

Archived: Group: SRAM Mix · Shifters: SRAM X.5 · Rear derailleur: SRAM X.7 · Crankset: TruVativ Hussefelt w/E-13 LG-1, 36 teeth · Bottom bracket: TruVativ Howitzer · Cassette: SRAM PG-830 · Rear cogs: 8-speed, 11 - 30 teeth · Chain: KMC X8, 1/2 x 3/32"

Archived: Brakes: Avid Juicy 3 w/8" rotor brakes, Avid Juicy 3 levers

Archived: Wheel size: 26" wheels · Rims: Sun Equalizer 29mm, 32-hole · Hubs: Front: KT Q-Lite, 20mm, red, Rear: KT Q-Lite, 150 x 12mm, red · Front tire: 26 x 2.50" Kenda Nevegal DH Stick-E

Controls and contact points

Archived: Headset: 1 1/8" FSA Orbit E Reducer 1.5 to 1 1/8" · Handlebar: TruVativ Hussefelt · Stem: FUNN RSX direct mount · Seatpost: Truvativ XR, 27.2mm diameter · Saddle: WTB Silverado w/chromoly rails · Pedals: Flat Pedal
