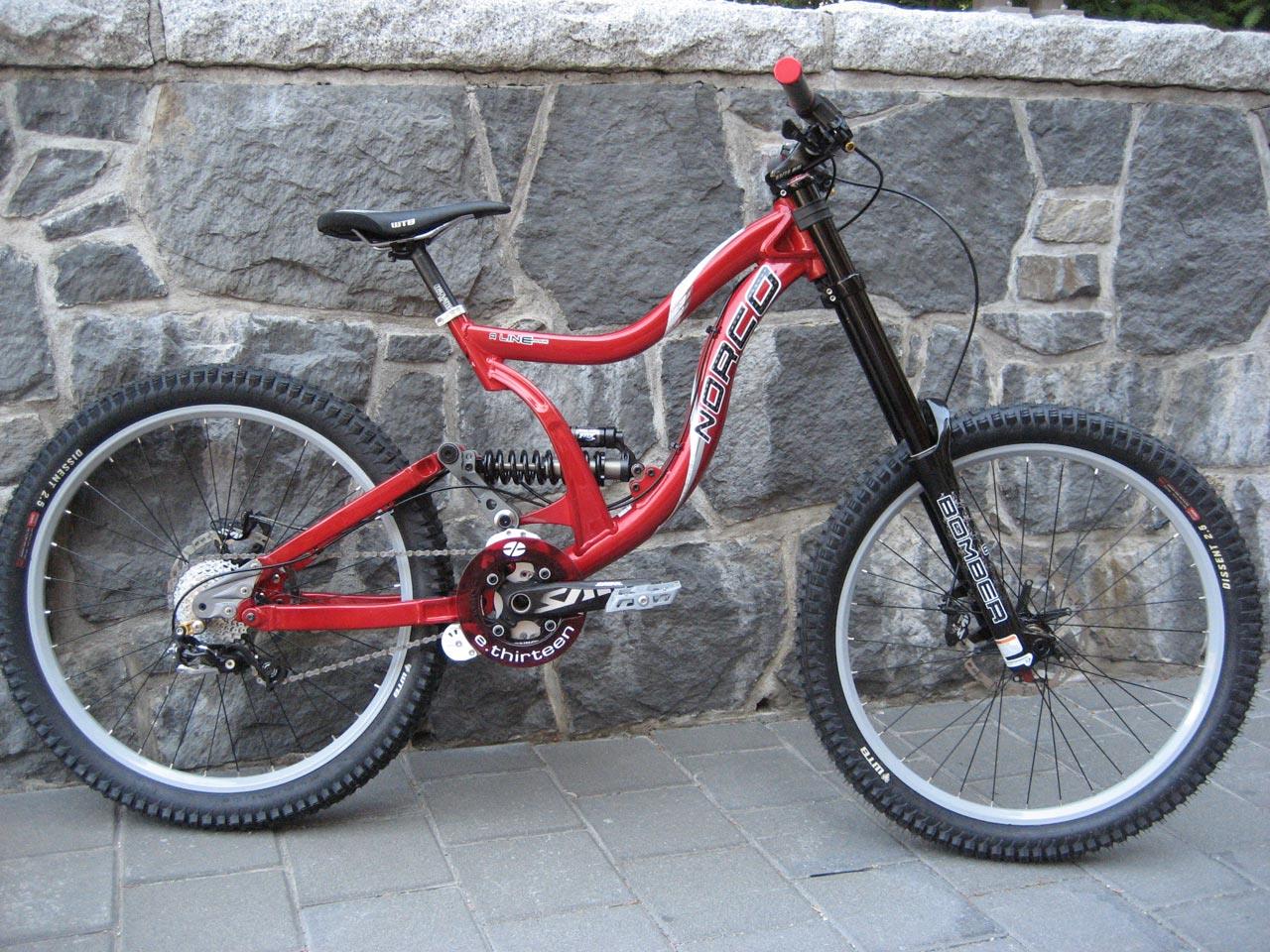

2009 Norco A-Line Park Edition
Original specifications: Shimano Saint drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #15978- Model year
- 2009
- Category
- Mountain
- Original MSRP
- $4,350.00
- Sizes
- S, M, L
- Colors
- Red
- In this record
- 27 specifications · 2 archived images · original MSRP
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Red
- Frame
- Hydraformed Aluminum
- Original equipment
- Shimano Saint
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildHydraformed Aluminum · Shimano Saint · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hydraformed Aluminum |
| Fork | Marzocchi 888 RCV, 203mm travel |
| Fork Material | Single |
| Rear Shock | Fox DHX 3.0, 199 - 227mm adjustable |
Drivetrain
| Component Group | Shimano Saint |
|---|---|
| Shifters | Shimano Saint |
| Rear Derailleur | Shimano Saint |
| Crankset | Shimano Saint w/E-13 LG1, 36 teeth |
| Bottom Bracket | Shimano Saint |
| BB Shell Width | 68mm |
| Cassette | Shimano LX |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG53-9, 1/2 x 3/32" |
| Pedals | Flat Pedal |
Brakes
| Brakes | Shimano Saint w/8" rotor brakes, Shimano Saint levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Orbit E Reducer 1.5 to 1 1/8" |
|---|---|
| Handlebar | TruVativ Hussefelt |
| Handlebar Extensions | Not included |
| Stem | Marzocchi direct mount |
| Saddle | WTB Silverado w/chromoly rails |
| Seatpost | Truvativ XR, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Shimano Saint 20mm, Rear: Shimano Saint 150 x 12mm |
|---|---|
| Rims | WTB Laser Disc FR, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 2.50" WTB Dissent, DH Casting |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
27.2mm diameter
DH Casting
More parts (7)Fewer parts
36 teeth
32-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.50" WTB Dissent, DH Casting
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano Saint · 68mm
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi 888 RCV, 203mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi 888 RCV, 203mm travel · Rear shock: Fox DHX 3.0, 199 - 227mm adjustable
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Saint · Shifters: Shimano Saint · Rear derailleur: Shimano Saint · Crankset: Shimano Saint w/E-13 LG1, 36 teeth · Bottom bracket: Shimano Saint · Cassette: Shimano LX · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano HG53-9, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Saint w/8" rotor brakes, Shimano Saint levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: WTB Laser Disc FR, 32-hole · Hubs: Front: Shimano Saint 20mm, Rear: Shimano Saint 150 x 12mm · Front tire: 26 x 2.50" WTB Dissent, DH Casting
Controls and contact points
Archived: Headset: 1 1/8" FSA Orbit E Reducer 1.5 to 1 1/8" · Handlebar: TruVativ Hussefelt · Stem: Marzocchi direct mount · Seatpost: Truvativ XR, 27.2mm diameter · Saddle: WTB Silverado w/chromoly rails · Pedals: Flat Pedal
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
