2011 Masi Speciale CX/SS

Original specifications: Track Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22327
Model year
2011
Category
Track
Sizes
49cm, 52cm, 55cm, 57cm, 60cm
Colors
SG Ano White/SG Bronze
In this record
21 specifications · 7 archived images
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
SG Ano White/SG Bronze
Frame
Double butted CroMo
Original equipment
Track Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildDouble butted CroMo · Track Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

49cm52cm55cm57cm60cm

Published colors

SG Ano White/SG Bronze
View 5 archived size/color combinations
SizeColor
49cmSG Ano White/SG Bronze
52cmSG Ano White/SG Bronze
55cmSG Ano White/SG Bronze
57cmSG Ano White/SG Bronze
60cmSG Ano White/SG Bronze

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialDouble butted CroMo

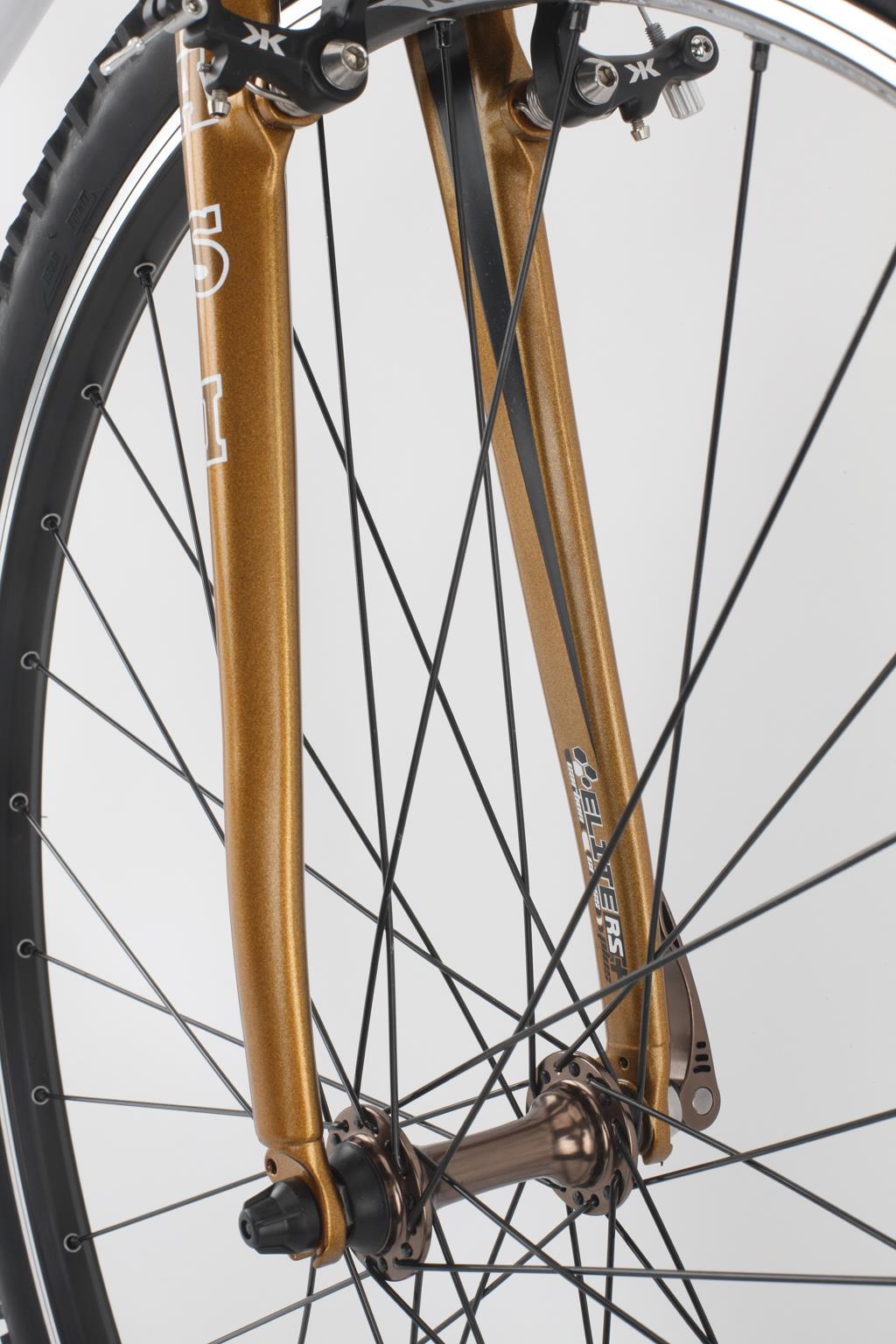

ForkMasi Lugged
Fork MaterialCromo, aero crown

Drivetrain

Component GroupTrack Mix
CranksetKore Gradiant 110 SS, 42T teeth

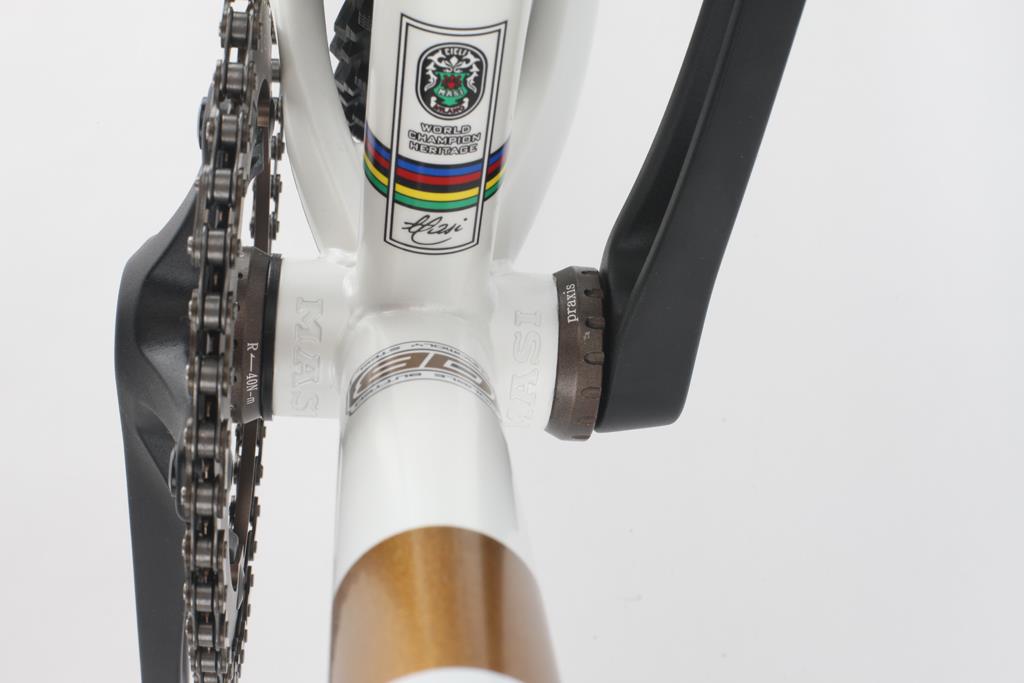

Bottom BracketKore Integrated

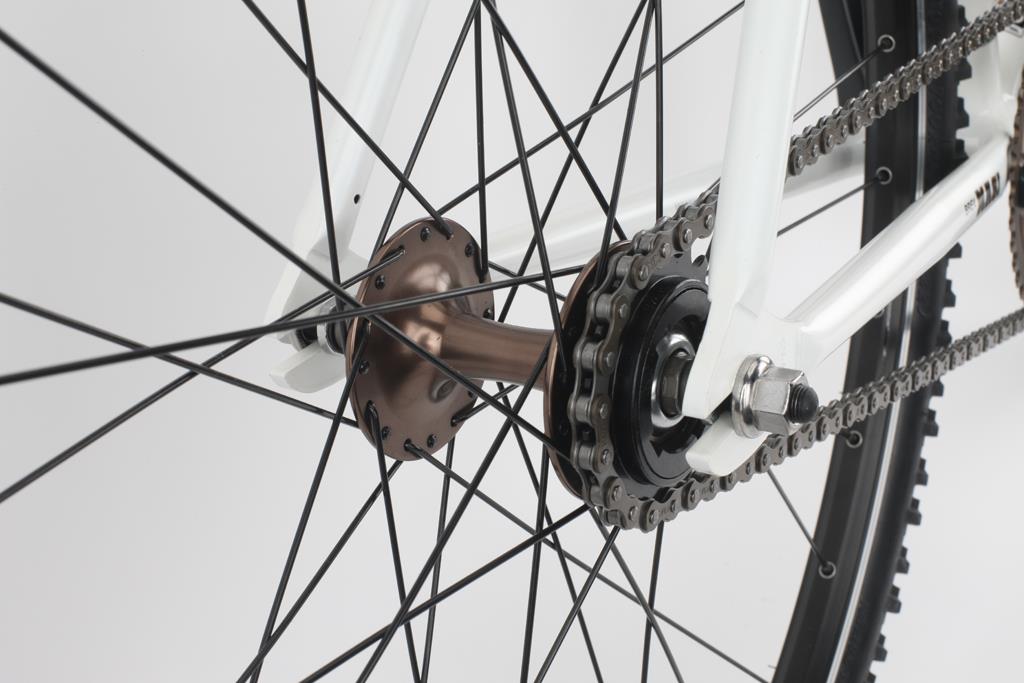

CassetteLida LMA-8 Freewheel
Rear Cogs1-speed, 18 teeth
ChainKMC Z510H
PedalsNot included

Brakes

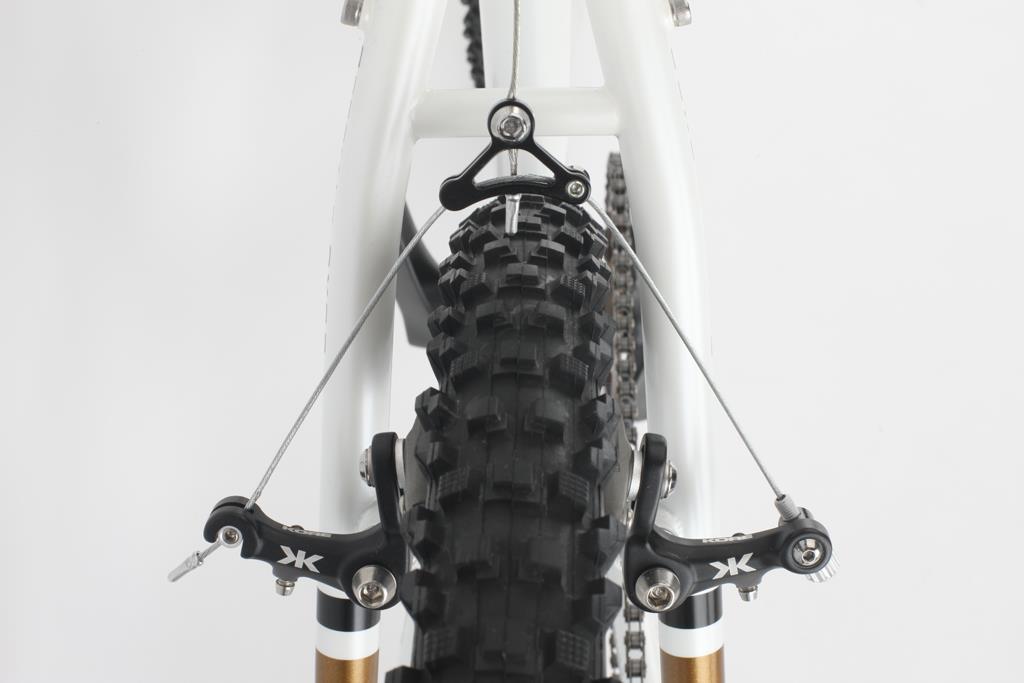

BrakesKore Race Plus brakes, Tektro R520 levers

Cockpit & Contact Points

HeadsetRitchey Logic Comp CX

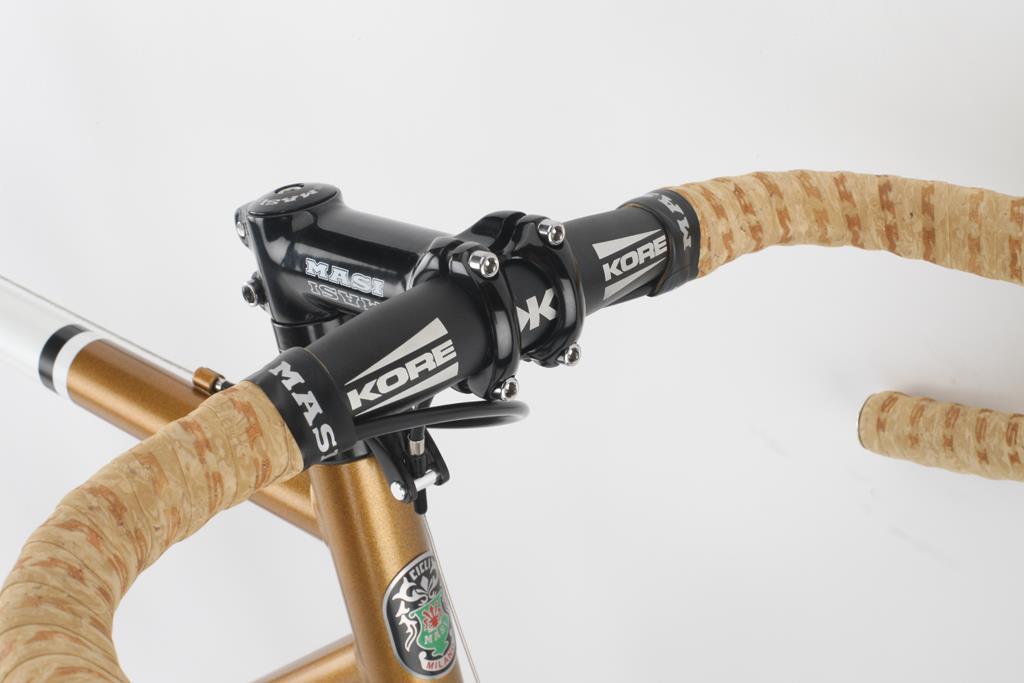

HandlebarKore Randonneur
StemMasi 3-D Forged
SaddleMasi SLS w/ Crmo Rails
SeatpostMasi Alloy, 27.2mm diameter

Wheels & Tires

RimsKore KTX
SpokesStainless
Front Tire700 x 45c Panaracer Fire Cross
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 18T · 1-speed
Ratio2.33:1
Estimated speed At 90 RPM Gear17.5 mph

Uses front tire 700C×45; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 45c Panaracer Fire Cross
Retailer offers

Vittoria Terreno Wet G2.0 TNT Tubeless Tire Anthracite/Black, 700x45

700x45c

Replacement option

Seatpost · Original
Masi Alloy

27.2mm diameter

Retailer offers
Headset · Original
Ritchey Logic Comp CX

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 45c Panaracer Fire Cross
Drivetrain
1-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Kore Integrated
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Masi Lugged · Cromo, aero crown

Archived: Group: Track Mix · Crankset: Kore Gradiant 110 SS, 42T teeth · Bottom bracket: Kore Integrated · Cassette: Lida LMA-8 Freewheel · Rear cogs: 1-speed, 18 teeth · Chain: KMC Z510H

Archived: Brakes: Kore Race Plus brakes, Tektro R520 levers

Archived: Wheel size: 700c wheels · Rims: Kore KTX · Front tire: 700 x 45c Panaracer Fire Cross

Controls and contact points

Archived: Headset: Ritchey Logic Comp CX · Handlebar: Kore Randonneur · Stem: Masi 3-D Forged · Seatpost: Masi Alloy, 27.2mm diameter · Saddle: Masi SLS w/ Crmo Rails · Pedals: Not included
