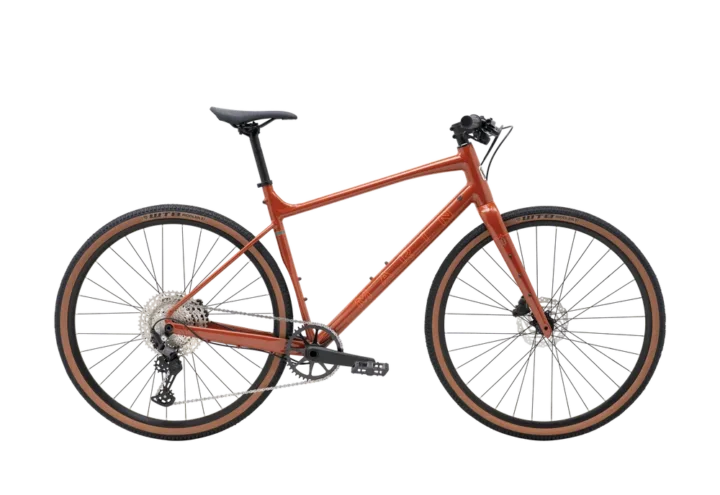

2025 Marin DSX 2
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2025
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,399.00
- Sizes
- S, M, L, XL
- Colors
- Clay Orange
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 19 preserved details · 5 archived images · original MSRP · preserved geometry
- Archive ID
- 900000500
Frameset
| Frame Construction | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Frame Material | Aluminum |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Deore, SLM6100, 12-Speed |
|---|---|
| Rear Derailleur | Shimano Deore, RDM6100, 12-Speed |
| Crankset | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Bottom Bracket | Sealed Outboard Bearing |
| Cassette | Shimano Deore, CS-M6100, 12-Speed, 10-51T |
| Chain | KMC X12 |
Brakes
| Brakes | (F) Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor / (R) Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor; Levers: Shimano Hydraulic |
|---|
Cockpit & Contact Points
| Headset | Marin Alloy |
|---|---|
| Handlebar | Marin MiniRiser |
| Stem | Marin 3D Forged Alloy |
Wheels & Tires
| Hubs | (F) Forged Aluminum, 100x12mm, Disc Specific, 32H / (R) Forged Aluminum, 142x12mm, Disc Specific, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Tire | WTB Riddler, 700Cx45mm |
| Rear Tire | WTB Riddler, 700Cx45mm |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | Small | Medium | Large | XLarge |
|---|---|---|---|---|
| Seat tube | 430 mm | 480 mm | 520 mm | 558 mm |
| Effective top tube | 536.1 mm | 569.2 mm | 592.2 mm | 615.3 mm |
| Head tube | 120 mm | 150 mm | 180 mm | 210 mm |
| Head-tube angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat-tube angle | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1024.42 mm | 1060 mm | 1085.4 mm | 1110.9 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Bottom-bracket height | 279.5 mm | 279.5 mm | 279.5 mm | 279.5 mm |
| Reach | 380 mm | 405 mm | 420 mm | 435 mm |
| Stack | 544.4 mm | 572.5 mm | 600.6 mm | 628.7 mm |
| Standover height | 658.76 mm | 700.51 mm | 730.39 mm | 758.5 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Handlebar width | 640 mm | 680 mm | 680 mm | 680 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
Small geometry
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 69.5° sits somewhat slacker than typical. Its stack of 544.4 mm sits somewhat lower than typical.
Compared with 87 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze Small geometry Medium geometry
Archive context: Its reach of 405 mm sits toward the longer end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 69.5° sits toward the slacker end.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze Medium geometry Large geometry
Archive context: Its reach of 420 mm sits toward the longer end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The seat angle of 74° sits toward the steeper end.
Compared with 69 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze Large geometry XLarge geometry
Archive context: Its reach of 435 mm sits toward the longer end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The seat angle of 74° sits toward the steeper end.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XLarge geometry Parts & serviceability
Find replacement parts
ChainKMC X12Exact archived model
CassetteShimano Deore, CS-M6100, 12-Speed, 10-51TExact archived model
Rear derailleurShimano Deore, RDM6100, 12-SpeedComponent family — verify exact version
More qualified parts (1)
ShiftersShimano Deore, SLM6100, 12-SpeedComponent family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Marin DSX 2 · Cyclocross/Gravel · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle · Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore, SLM6100, 12-Speed · Rear derailleur: Shimano Deore, RDM6100, 12-Speed · Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring · Bottom bracket: Sealed Outboard Bearing · Cassette: Shimano Deore, CS-M6100, 12-Speed, 10-51T · Chain: KMC X12
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor / (R) Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor; Levers: Shimano Hydraulic
Wheels and tires
Check wheels and tires →Archived: Rims: Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible · Hubs: (F) Forged Aluminum, 100x12mm, Disc Specific, 32H / (R) Forged Aluminum, 142x12mm, Disc Specific, 32H · Front tire: WTB Riddler, 700Cx45mm · Rear tire: WTB Riddler, 700Cx45mm
Controls and contact points
Archived: Headset: Marin Alloy · Handlebar: Marin MiniRiser · Stem: Marin 3D Forged Alloy
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
