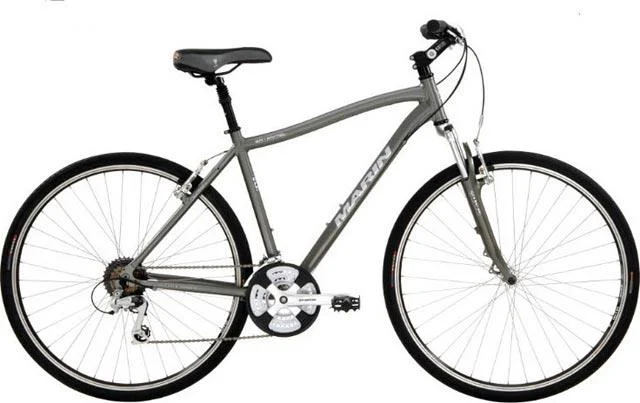

2008 Marin San Rafael
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $505.00
- Sizes
- 15", 17", 19", 20.5", 22"
- Colors
- Gloss Granite
- Archive ID
- 13188
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 aluminum |
| Fork | Spinner Odesa LX, 63mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano EF-50 EZ Fire Integrated |
| Front Derailleur | Shimano C-100 |
| Rear Derailleur | Shimano Alivio |
| Crankset | Suntour NCX410, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | Shimano HG30 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | Shimano HG40 |
| Pedals | Composite |
Brakes
| Brakes | Forged Alloy Linear Pull brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA TH-888 |
|---|---|
| Handlebar | Double Butted 6061 Alloy |
| Handlebar Extensions | Not included |
| Stem | Alloy Adjustable |
| Saddle | WTB Comfort V |
| Seatpost | Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Alloy Double Sealed, Rear: Shimano RM30 |
|---|---|
| Rims | WTB DX23, 36-hole |
| Spokes | WTB stainless steel, 14ga. (2.0mm) |
| Front Tire | 700 x 35c Kenda Kwest |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
