Velopedia Bicycle Archive

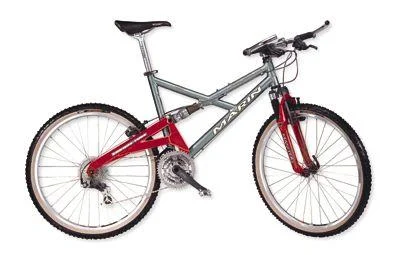

1998 Marin Mount Vision Pro F.R.S.
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,899.00
- Sizes
- 13.5", 15.5", 17.5", 19"
- Colors
- Matte olive/ gloss red swingarm
- Archive ID
- 76316
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Fork | Answer Manitou X-Vert |
| Fork Material | Aluminum/magnesium, triple-clamp crown |
| Rear Shock | Fox Alps-5R, 4.0" travel |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR RapidFire SL |
| Front Derailleur | Shimano XTR top-swing, bottom-pull/clamp-on 35.0mm |
| Rear Derailleur | Shimano XTR SGS |
| Crankset | Shimano XTR M950, 26/36/46 teeth |
| Bottom Bracket | Shimano BB-M950, 112.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 12 - 32 teeth |
| Chain | Shimano CN-IG90, 1/2 x 3/32" |
| Pedals | Shimano PD-M747 SPD |
Brakes
| Brakes | Shimano XTR V-Brake brakes, Shimano XTR levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP aluminum threadless |
|---|---|
| Handlebar | Marin Lite CNC aluminum |
| Handlebar Extensions | Marin Lite aluminum |
| Stem | Marin Lite aluminum |
| Saddle | Ritchey Vector WCS |
| Seatpost | Marin Lite Pro, 30.0mm diameter |
Wheels & Tires
| Hubs | Shimano XTR |
|---|---|
| Rims | Mavic X517, 32-hole |
| Spokes | DT stainless steel, 1.8mm double-butted |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" IRC Mythos XC kevlar |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
