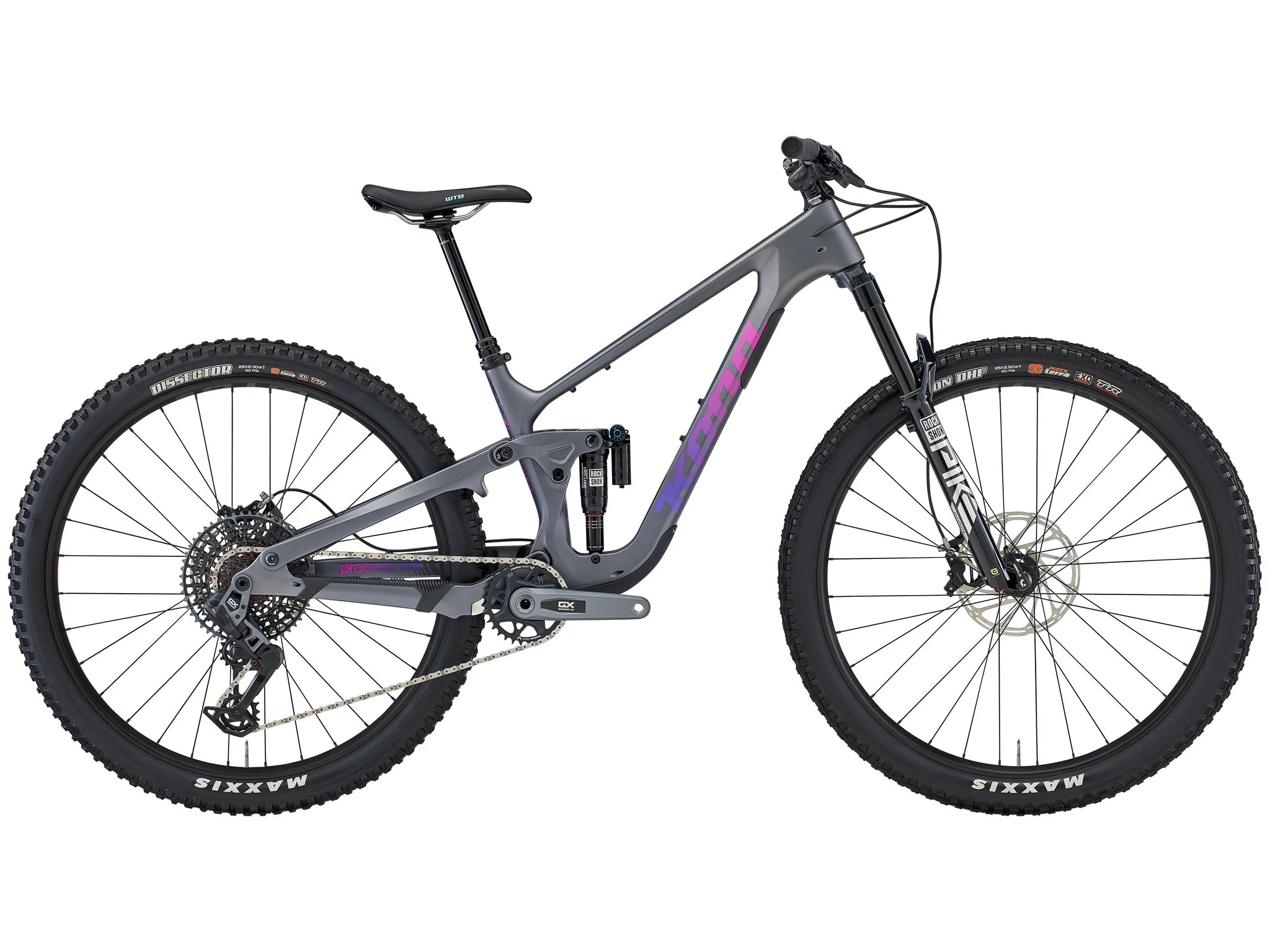

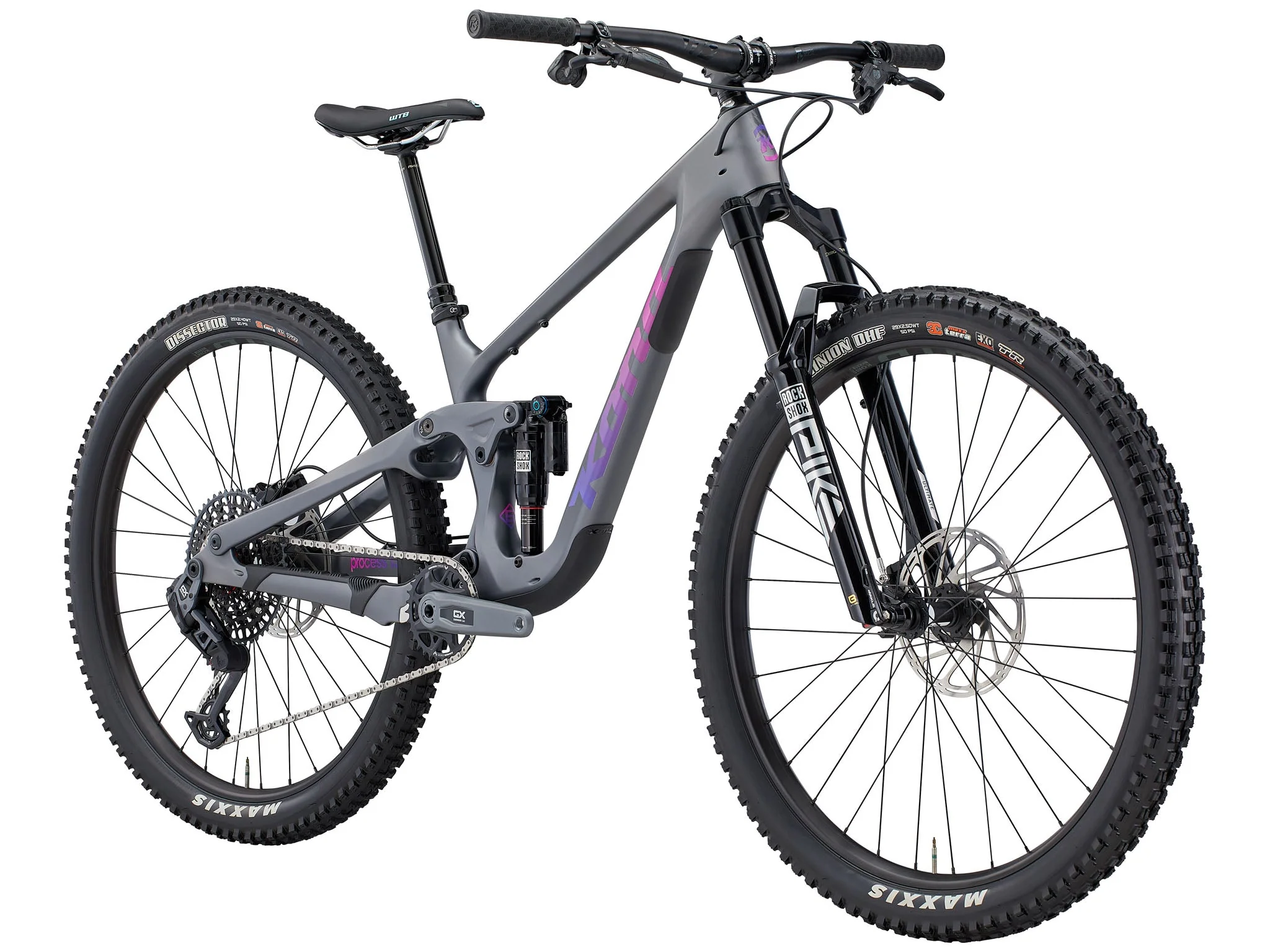

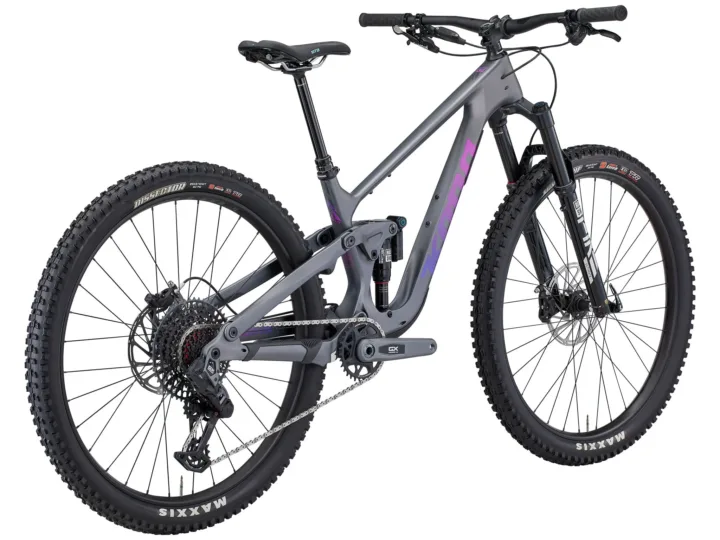

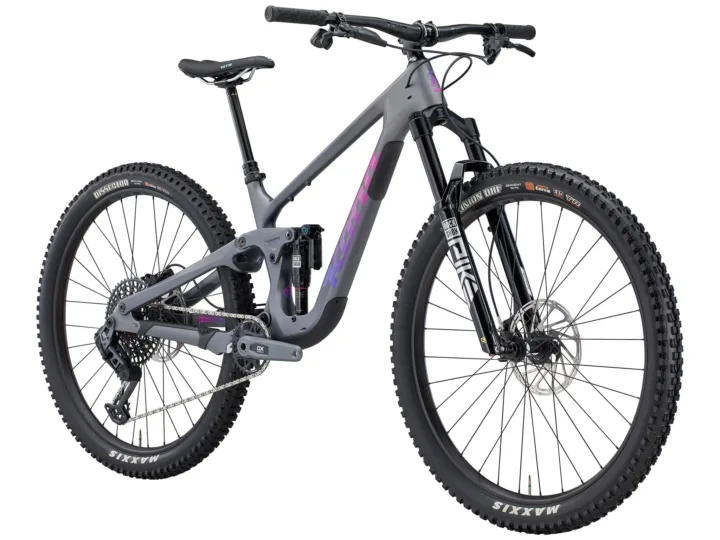

2023 Kona Process 134 CR/DL

Archived: 2023 Kona Process 134 CR/DL · Mountain · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Kona Carbon 134mm Travel · Fork: RockShox Pike Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 140mm Tapered 110mm Spacing

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

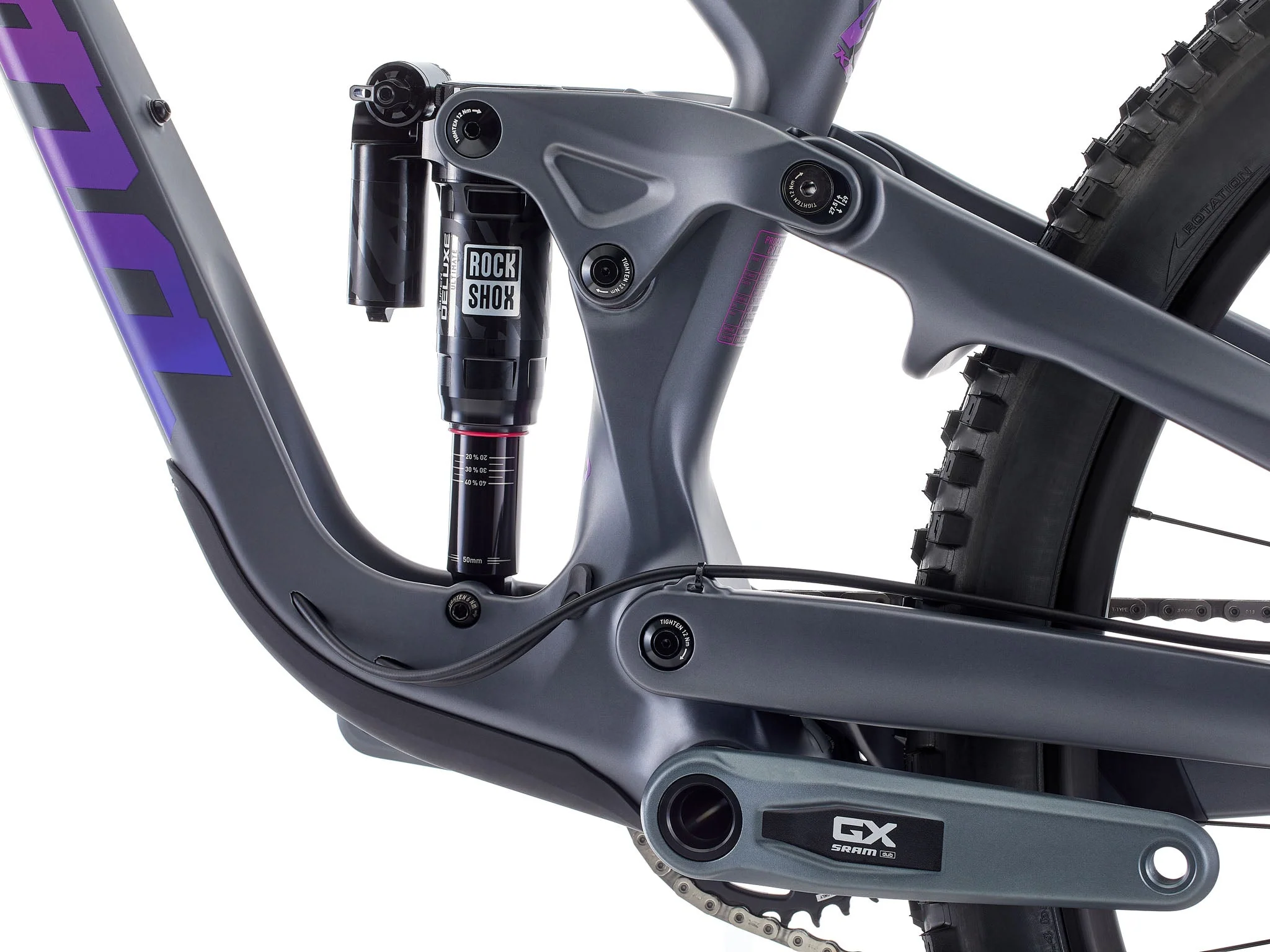

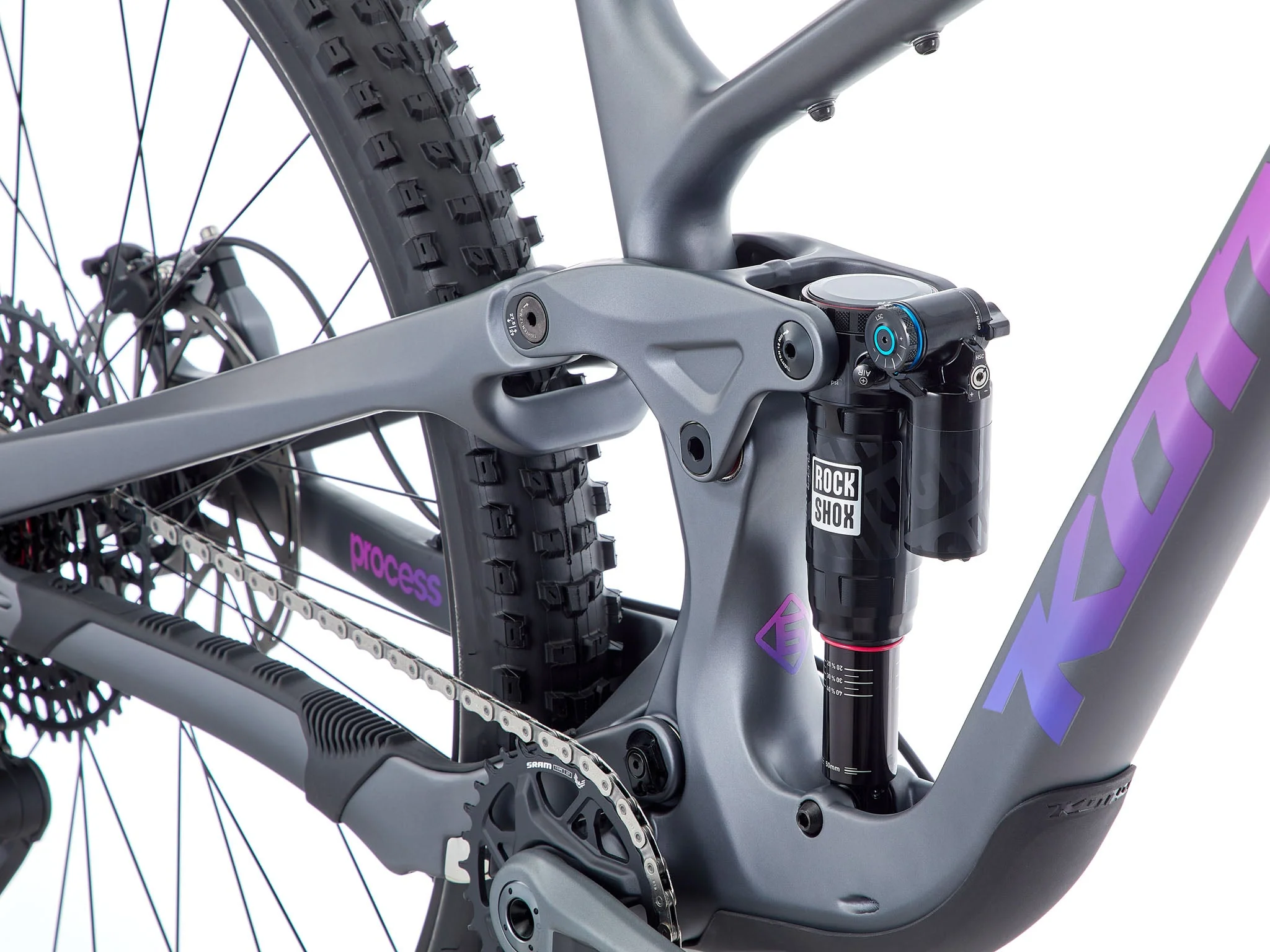

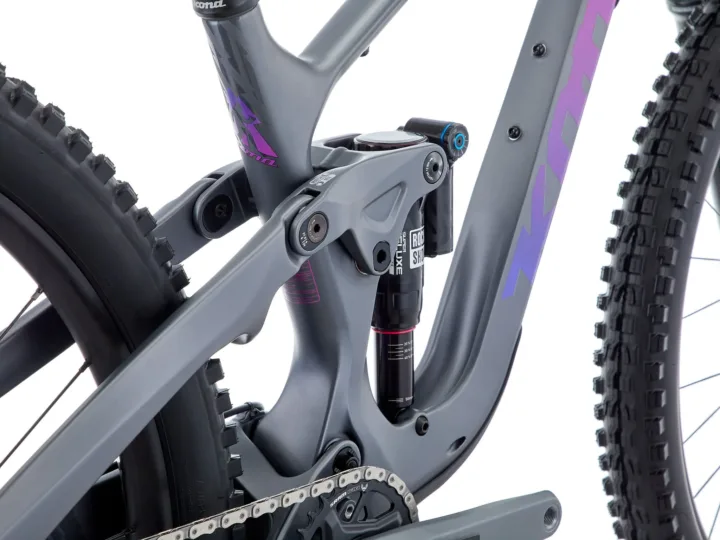

Archived: Fork: RockShox Pike Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 140mm Tapered 110mm Spacing · Rear shock: RockShox Super Deluxe Ultimate RCT Trunnion

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM AXS Pod Controller · Rear derailleur: SRAM GX Eagle Transmission · Crankset: SRAM GX Eagle Transmission; Chainring: 32t · Bottom bracket: SRAM DUB PF92 · Cassette: SRAM GX Eagle Transmission 10-52t 12spd · Chain: SRAM GX Eagle Transmission

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Brake Calipers: SRAM G2 RSC; Front Brake Rotor: SRAM Centerline 200mm; Rear Brake Rotor: SRAM Centerline 200mm; Brake Levers: SRAM G2 RSC

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 29" · Rims: WTB KOM Team i30 TCS · Hubs: (F) DT Swiss 350 110x15mm / (R) DT Swiss 350 148x12mm · Front tire: Maxxis Minion DHF EXO TR 3C 29x2.5" WT · Rear tire: Maxxis Dissector EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S)

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

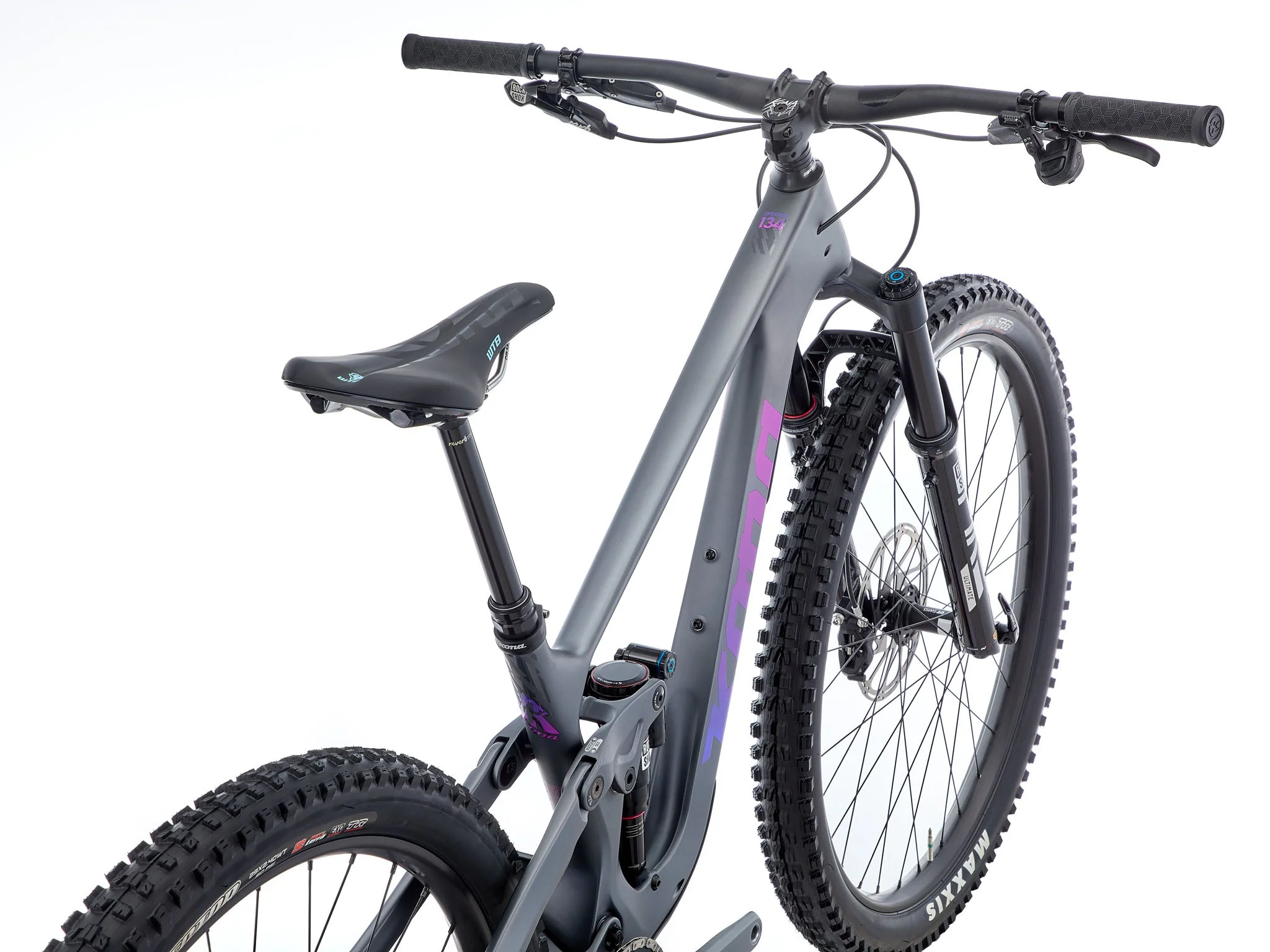

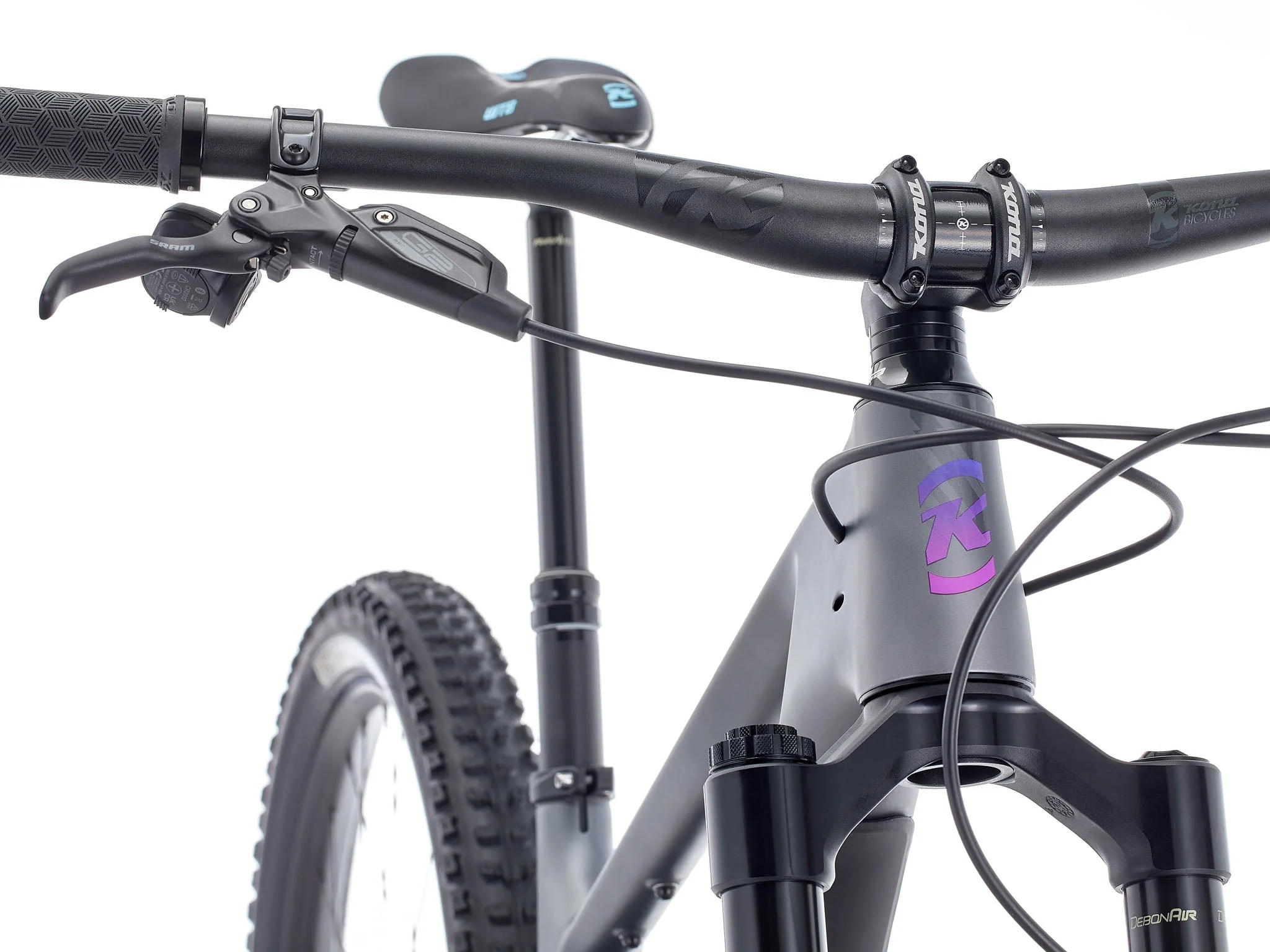

Archived: Headset: FSA Orbit 1.5 E ZS · Handlebar: Kona XC/BC 35 · Stem: Kona XC/BC 35 · Seatpost: Rock Shox Reverb Stealth w/1x Remote Lever 31.6mm · Saddle: WTB Volt

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
