2023 Kona Dr Dew

Archived: 2023 Kona Dr Dew · City/Commuter · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

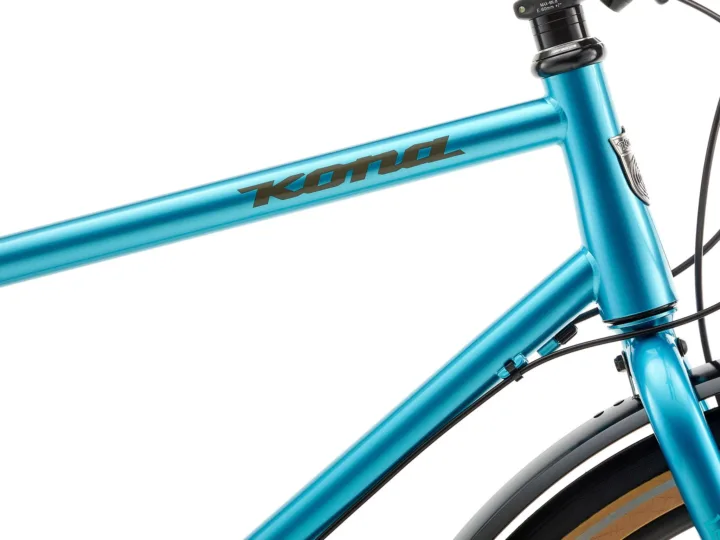

Archived: Frame: Kona Cromoly Butted · Fork: Kona Project Two Cromoly Disc 180

• Inspect the complete frame for cracks, dents, distortion, heavy abrasion, suspicious paint differences or evidence of a previous repair.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

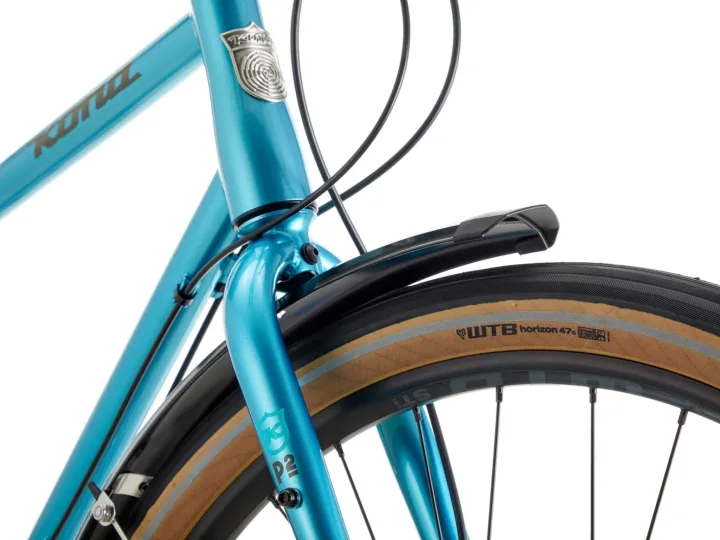

• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

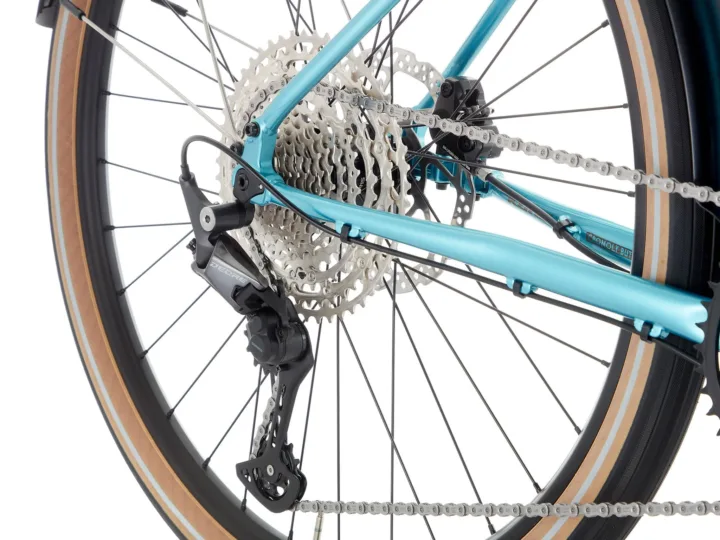

Archived: Shifters: SRAM NX-Eagle · Rear derailleur: SRAM NX-Eagle · Crankset: FSA Comet Modular; Chainring: 38t · Bottom bracket: FSA Road Mega EXO 68mm · Cassette: SRAM SX-Eagle 11-50t 12spd · Chain: SRAM SX-Eagle

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Brake Calipers: Shimano Altus Flat mount; Front Brake Rotor: Shimano RT54 180mm (centerlock); Rear Brake Rotor: Shimano RT54 180mm (centerlock); Brake Levers: Shimano Altus

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: WTB ST i23 TCS 2.0 · Hubs: (F) Formula 100x12mm (centerlock) / (R) Formula 142x12mm (centerlock) · Front tire: WTB Horizon Road Plus Comp w/ Puncture Protection 650x47c · Rear tire: WTB Horizon Road Plus Comp w/ Puncture Protection 650x47c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

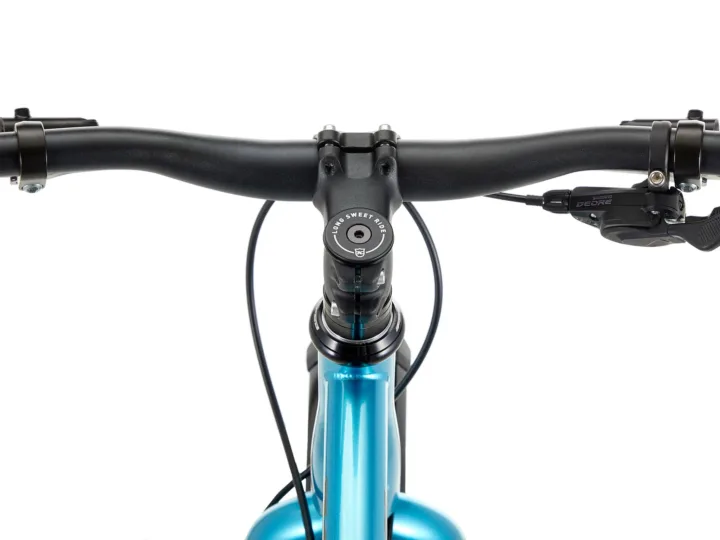

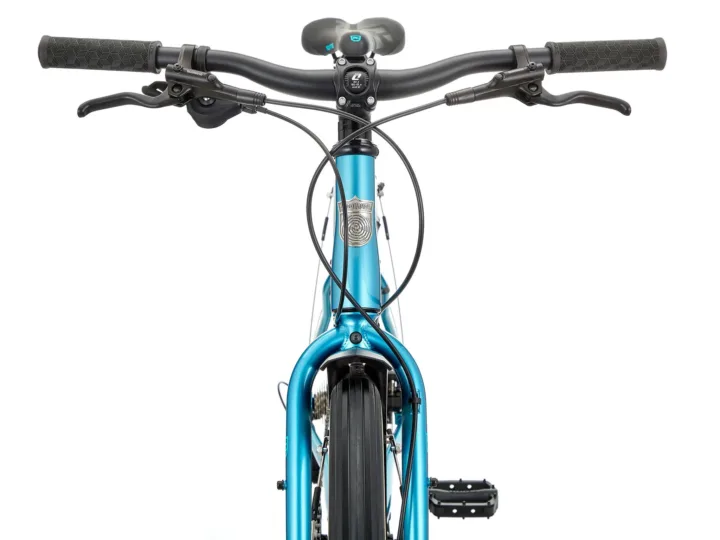

Archived: Headset: FSA No.1/No.10 · Handlebar: Kona Aluminum Riser · Stem: Kona Commuter · Seatpost: Kona Thumb w/Offset 27.2mm · Saddle: WTB Volt · Pedals: Kona JS2

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
