2023 Kona Honzo Mountain Bike - Size XL
Used · Fixed price · offers accepted · USD 900.00
Velopedia Bicycle Archive
2023 Kona Honzo
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2023
- Category
- Mountain
- Original MSRP
- $1,299.00
- Sizes
- S, M, L, XL
- Colors
- Gloss Kiwi w/ Charcoal & Turquoise Decals
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 24 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000757
Model history 2 other years
Frameset
| Frame Construction | Kona 6061 Aluminum Butted |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Recon RL Solo Air 130mm Tapered 110mm Spacing |
| Rear Shock | n/a |
Drivetrain
| Shifters | Shimano Deore 11spd |
|---|---|
| Front Derailleur | n/a |
| Rear Derailleur | Shimano Deore 11spd |
| Crankset | Shimano Deore; Chainring: 30t |
| Bottom Bracket | Shimano Deore 73mm |
| Cassette | Shimano Deore 11-51t 11spd |
| Chain | KMC X11 |
| Pedals | n/a |
Brakes
| Brakes | Brake Calipers: Shimano MT410 Hydraulic; Front Brake Rotor: Shimano RT30 180mm (centerlock); Rear Brake Rotor: Shimano RT30 160mm (centerlock); Brake Levers: Shimano M4100 Hydraulic |
|---|
Cockpit & Contact Points
| Headset | Feimin FP-H863 |
|---|---|
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Saddle | Kona Trail |

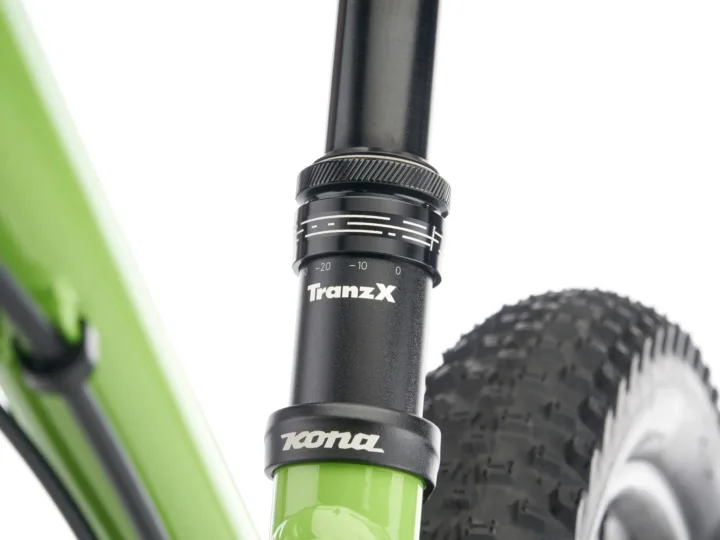

| Seatpost | TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm |
Wheels & Tires
| Hubs | (F) Shimano 110x15mm (centerlock) / (R) Shimano 148x12mm (centerlock) |
|---|---|
| Rims | WTB ST I30 TCS |
| Spokes | Stainless Black 14g |
| Front Tire | Vee Tire Flow Snap Tackee TR 29x2.35" |
| Rear Tire | Vee Tire Crown Gem DCC TR 29x2.3" |
| Wheel Size | 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 385 mm | 410 mm | 450 mm | 485 mm |
| Top tube | 583 mm | 610 mm | 638 mm | 678 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 140 mm |
| Head-tube angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat-tube angle | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1147 mm | 1176 mm | 1205 mm | 1248 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom-bracket height | 315 mm | 315 mm | 315 mm | 315 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Stack | 636 mm | 646 mm | 655 mm | 673 mm |
| Standover height | 742 mm | 729 mm | 728 mm | 731 mm |
| Fork offset / rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Front center | 729 mm | 758 mm | 787 mm | 830 mm |
| Fork length / axle-to-crown | 543 mm | 543 mm | 543 mm | 543 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its stack of 636 mm sits toward the taller end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 101 distinct mountain geometries in the Small-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 646 mm sits toward the taller end. The chainstay of 425 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end.
Compared with 106 distinct mountain geometries in the Medium-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its stack of 655 mm sits toward the taller end. The chainstay of 425 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end.
Compared with 95 distinct mountain geometries in the Large-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its stack of 673 mm sits toward the taller end. The chainstay of 425 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end.
Compared with 90 distinct mountain geometries in the XL-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
ChainKMC X11Exact archived model
CassetteShimano Deore 11-51t 11spdComponent family — verify exact version
Bottom bracketShimano Deore 73mmNamed archived component — verify dimensions
More qualified parts (4)
CranksetShimano Deore; Chainring: 30tComponent family — verify exact version
Rear derailleurShimano Deore 11spdComponent family — verify exact version
ShiftersShimano Deore 11spdComponent family — verify exact version
RimsWTB ST I30 TCSNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2023 Kona Honzo · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Kona 6061 Aluminum Butted · Fork: RockShox Recon RL Solo Air 130mm Tapered 110mm Spacing
Suspension
Evaluate the suspension →Archived: Fork: RockShox Recon RL Solo Air 130mm Tapered 110mm Spacing
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore 11spd · Rear derailleur: Shimano Deore 11spd · Crankset: Shimano Deore; Chainring: 30t · Bottom bracket: Shimano Deore 73mm · Cassette: Shimano Deore 11-51t 11spd · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano MT410 Hydraulic; Front Brake Rotor: Shimano RT30 180mm (centerlock); Rear Brake Rotor: Shimano RT30 160mm (centerlock); Brake Levers: Shimano M4100 Hydraulic
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: WTB ST i30 TCS · Hubs: (F) Shimano 110x15mm (centerlock) / (R) Shimano 148x12mm (centerlock) · Front tire: Vee Tire Flow Snap Tackee TR 29x2.35" · Rear tire: Vee Tire Crown Gem DCC TR 29x2.3"
Controls and contact points
Archived: Headset: Feimin FP-H863 · Handlebar: Kona XC/BC 35 · Stem: Kona XC/BC 35 · Seatpost: TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm · Saddle: Kona Trail
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Recently checked marketplace data
Market Snapshot
Across 3 qualifying used eBay listings, the median current asking price is $820.00. The sample is large enough for a median but not a stable price band, so Velopedia does not publish the raw low and high.
Evidence standard
Fixed-price and Best Offer item prices only
Shipping and tax excluded
Active asks, not completed sales
Model-year coverage: 1 of 4 qualifying asking-price listings explicitly state 2023. There are not yet three year-confirmed used listings, so the used summary is labeled as broader model-family context.
Affiliate disclosure: As an eBay Partner, Velopedia may be compensated if you make a purchase through these links.
Qualified asking evidence44 high-confidence matches
Model-family used asking$820.00Median asking · limited sample · 3 listings
Model-family new asking$1,200.001 current asking price
Kona Honzo 29 in Mountain Bike Brown Front Suspension RockShox Hyd Disc
Used · Fixed price · offers accepted · USD 749.50
See all current matches for this bicycle →
Listings shown have not passed their eBay-supplied end time. Velopedia rechecks matched bicycles on a protected weekly cycle; availability can still change between checks. Price calculations use active fixed-price and Best Offer item prices before shipping and tax. Auction bids, auction-only prices, classified ads, lower-confidence Review candidates and ended listings are excluded. These observations are not completed-sale prices, a certified appraisal or a guarantee of value.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
