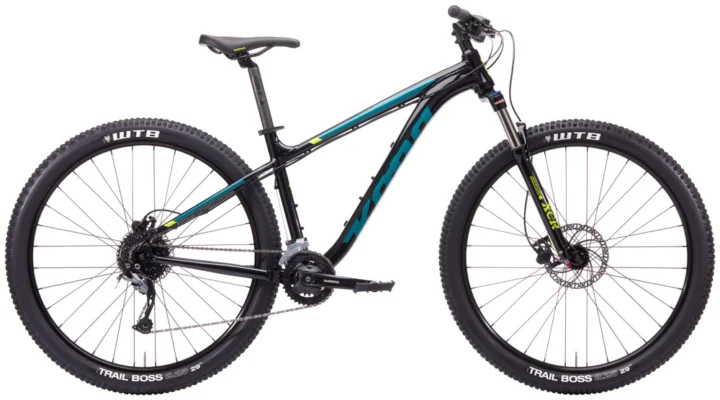

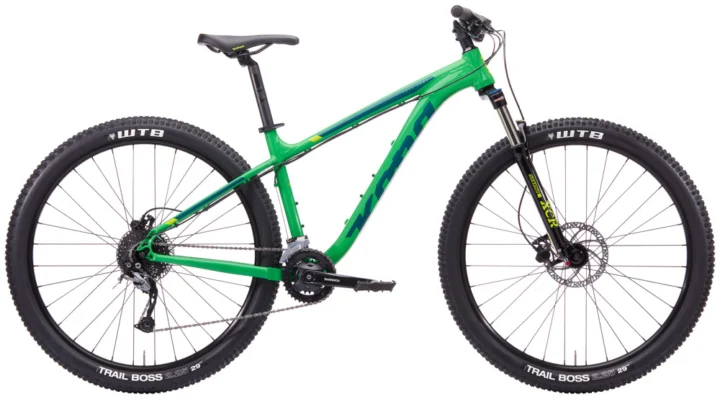

2020 Kona Lava Dome

Original specifications: 29" wheels · geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002369
Model year
2020
Category
Mountain
Sizes
S, M, L, XL
Colors
Gloss Green or Black w/ Emerald Green & Slime Decals
Geometry
4 manufacturer sizes
In this record
23 specifications · 2 archived images · geometry
Model history 16 other years

Browse other years

Compare side by side

Identification clues

2020 archived details

Published colors
Gloss Green or Black w/ Emerald Green & Slime Decals
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAluminum · 29"

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Gloss Green or Black w/ Emerald Green & Slime Decals

Frameset

Frame ConstructionKona 6061 Aluminum Butted
Frame MaterialAluminum
ForkSuntour XCR 32 LO-R Coil Spring 100mm

Drivetrain

ShiftersShimano Altus
Front DerailleurShimano Altus
Rear DerailleurShimano Alivio
CranksetShimano Altus; Chainring: 22/36t
Bottom BracketShimano 73mm
CassetteShimano HG200 11-36t 9spd
ChainKMC X9
PedalsKona JS2

Brakes

BrakesBrake Calipers: Tektro HDM275 Hydraulic; Front Brake Rotor: Tektro TR180 180mm; Rear Brake Rotor: Tektro TR160 160mm; Brake Levers: Tektro HDM275 Hydraulic

Cockpit & Contact Points

HeadsetFSA No.57B
HandlebarKona XC/BC Riser
StemKona XC
SaddleKona XC
SeatpostKona Thumb 31.6mm

Wheels & Tires

Hubs(F) Formula 100x9mm / (R) Formula 135x10mm
RimsAlex DP25
SpokesStainless Black 14g
Front TireWTB Trail Boss 29x2.25"
Rear TireWTB Trail Boss 29x2.25"
Wheel Size29"

Geometry

4 sizes · 15 measurements

Frame measurements by size.

All geometry measurements4 sizes · 15 measurements
MeasurementSMLXL
Seat tube370 mm420 mm470 mm530 mm
Top tube576 mm604 mm636 mm669 mm
Head tube95 mm105 mm115 mm125 mm
Head-tube angle68°68°68°68°
Seat-tube angle75°75°75°75°
Chainstay / rear center450 mm450 mm450 mm450 mm
Wheelbase1135 mm1164 mm1197 mm1231 mm
Bottom-bracket drop60 mm60 mm60 mm60 mm
Bottom-bracket height315 mm315 mm315 mm315 mm
Reach415 mm440 mm465 mm500 mm
Stack624 mm611 mm620 mm629 mm
Standover height727 mm733 mm738 mm760 mm
Fork offset / rake51 mm51 mm51 mm51 mm
Front center691 mm720 mm754 mm787 mm
Fork length / axle-to-crown506 mm506 mm506 mm506 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes36/22T · 11–36T · 9-speed
Lowest0.61:1 Highest3.27:1 Total range536%
Estimated speed At 90 RPM Lowest gear4.7 mph Highest gear25.4 mph

Rear tire: 29×2.25.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
