Lowest1.56:1
Highest4.00:1
Total range256%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

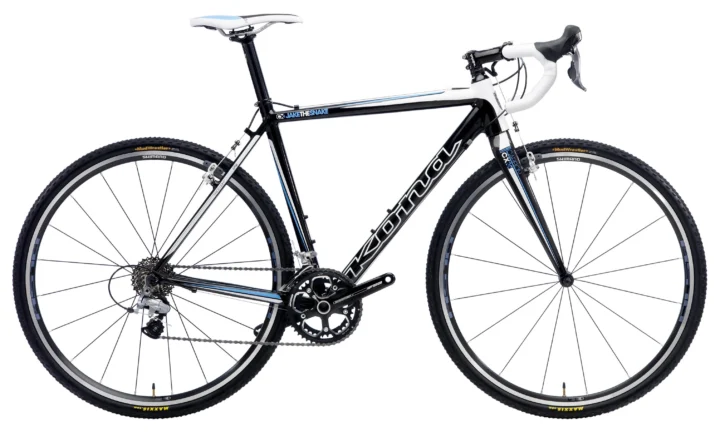

2011 Kona Jake the Snake
Original specifications: Shimano 105 · 9-speed rear derailleur · 700c wheels · 22.7 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #10006- Model year
- 2011
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,099.00
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- Gold, Green
- Weight
- 22.7 lb
- In this record
- 26 specifications · 2 archived images · original MSRP
Model history 18 other years
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Gold, Green
- Frame
- Easton Ultralite Race
- Original equipment
- Cyclocross Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildEaston Ultralite Race · Cyclocross Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Easton Ultralite Race |
| Fork | Kona Project Two TB |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Cyclocross Mix |
|---|---|
| Shifters | Shimano 105 STI Dual Control |
| Front Derailleur | Shimano 105, bottom-pull/clamp-on |
| Rear Derailleur | Shimano 105 |
| Crankset | TruVativ Elita Cross, 39/48 teeth |
| Bottom Bracket | TruVativ GIGA pipe SL |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | Shimano CN-HG53, 1/2 x 3/32" |
| Pedals | Shimano PD-M505 SPD |
Brakes
| Brakes | Avid Shorty 4 brakes, Shimano 105 STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset STS |
|---|---|
| Handlebar | Easton Road bar |
| Stem | Easton EA50 |
| Saddle | SDG-Kona Slim Jim |
| Seatpost | Easton |
Wheels & Tires
| Hubs | Front: Shimano Deore, Rear: Shimano 105 |
|---|---|
| Rims | Mavic MA3 |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 35c Nokian Ravagozzi Cross |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 35c Nokian Ravagozzi Cross
Replacement search: 700cx35 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano PD-M505 SPD
More parts (5)Fewer parts
SDG-Kona Slim Jim
Shimano 105
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano 105 STI Dual Control
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Easton EA50
Mavic MA3
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Nokian Ravagozzi Cross
- Drivetrain
- 9-speed
- Bottom bracket / shell
- TruVativ GIGA pipe SL · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Kona Project Two TB · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Cyclocross Mix · Shifters: Shimano 105 STI Dual Control · Front derailleur: Shimano 105, bottom-pull/clamp-on · Rear derailleur: Shimano 105 · Crankset: TruVativ Elita Cross, 39/48 teeth · Bottom bracket: TruVativ GIGA pipe SL · Rear cogs: 9-speed, 12 - 25 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Shorty 4 brakes, Shimano 105 STI Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic MA3 · Hubs: Front: Shimano Deore, Rear: Shimano 105 · Front tire: 700 x 35c Nokian Ravagozzi Cross
Controls and contact points
Archived: Headset: 1 1/8" threadless Aheadset STS · Handlebar: Easton Road bar · Stem: Easton EA50 · Seatpost: Easton · Saddle: SDG-Kona Slim Jim · Pedals: Shimano PD-M505 SPD
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
