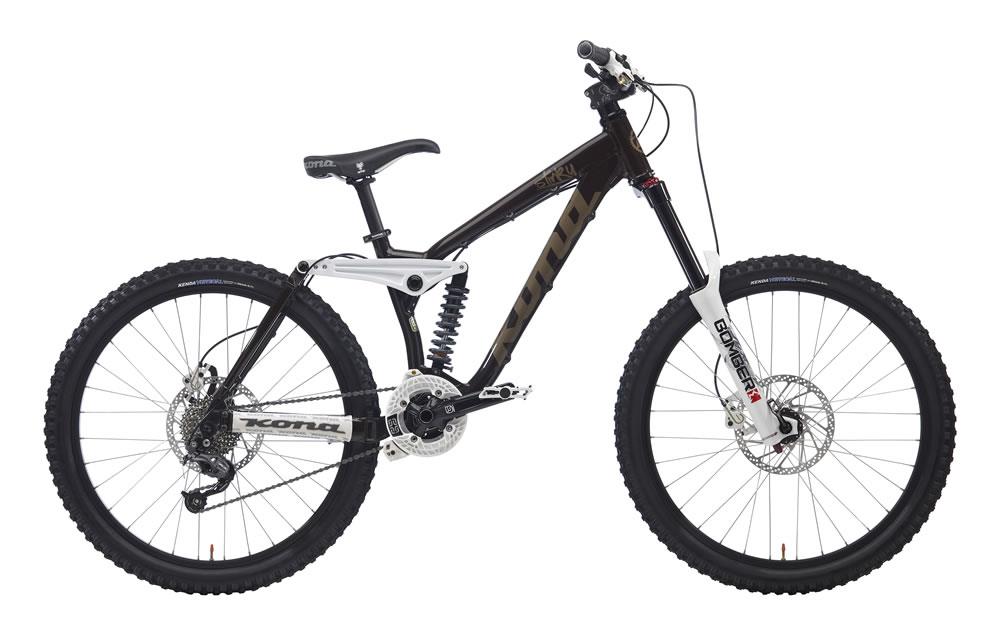

2010 Kona Stinky
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,199.00
- Sizes
- 15", 15.5", 16", 16.5", 17"
- Colors
- Dark Brown
- Archive ID
- 20352
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Clump DH 7005 Aluminum |
| Fork | Marzocchi 66 RCV w/20mm axle, 180mm travel |
| Fork Material | Single |
| Rear Shock | Marzocchi Roco Coil R, 7" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | E.Thirteen SS36 |
| Rear Derailleur | Shimano SLX |
| Crankset | FSA Moto X, 36 teeth |
| Bottom Bracket | FSA Mega EXO |
| BB Shell Width | 73mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano Deore |
| Pedals | Kona Jackshit |
Brakes
| Brakes | Shimano M575 Hydraulic Disc w/8" Rotor brakes, Shimano M575 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/2" threadless FSA Big Fat Pig |
|---|---|
| Handlebar | Kona OB/DH |
| Handlebar Extensions | Not included |
| Stem | Kona Clump |
| Saddle | WTB Pure V OB |
| Seatpost | Kona XC/BC |
Wheels & Tires
| Hubs | Front: Formula disc, Rear: Shimano M525 disc |
|---|---|
| Rims | Alex DM-24 |
| Spokes | Sandvic stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.5" Kenda Nevegal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
