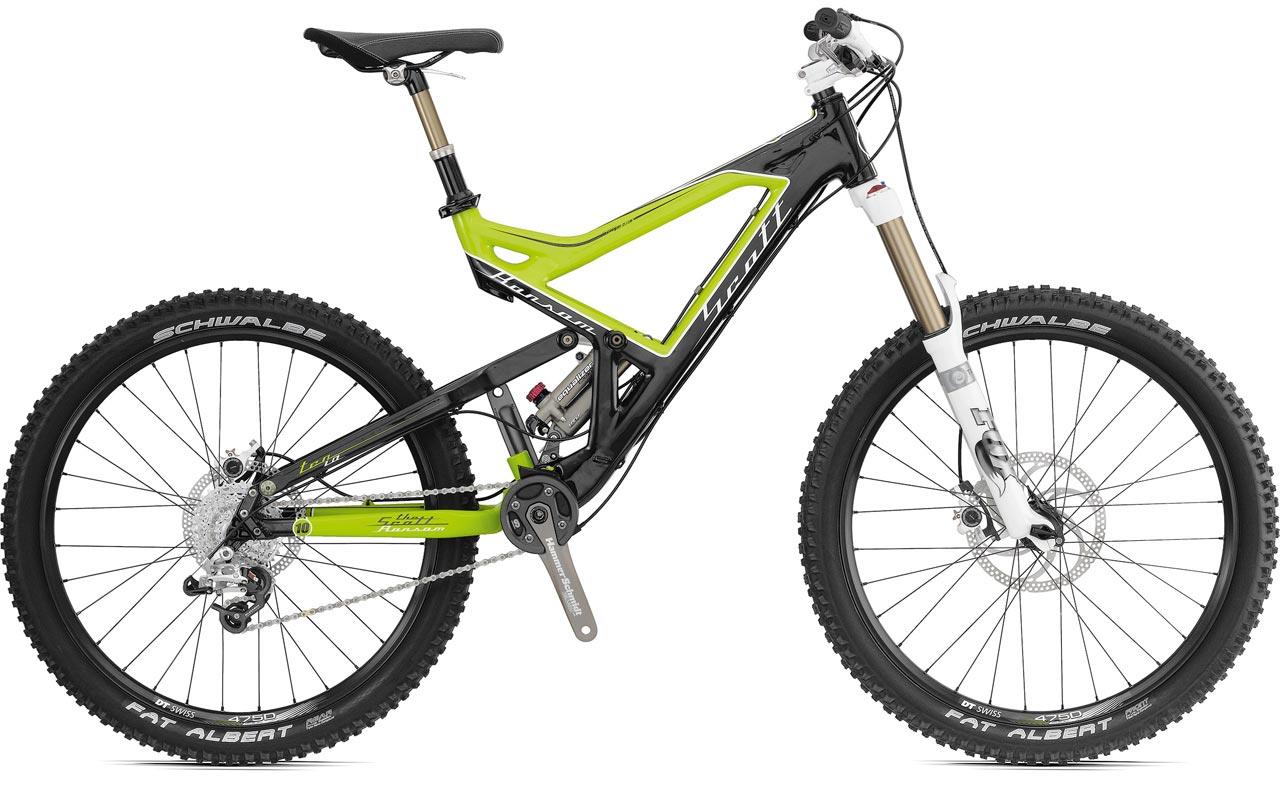

2010 Scott Ransom 10
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $5,999.99
- Sizes
- S,M,L,XL
- Colors
- Black/Green
- Weight
- 33.04
- Archive ID
- 20380
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Scott Ransom Concept CR1/HMX/6061 |
| Fork | Fox 36 Talas R, 120 - 160mm adjustable travel |
| Fork Material | Single |
| Rear Shock | Scott Equalizer TC, 165mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.9 Trigger w/Matchmaker |
| Front Derailleur | N/A, N/A |
| Rear Derailleur | SRAM X.0 Carbon short cage |
| Crankset | Truvativ Hammerschmidt AM |
| Bottom Bracket | SRAM HammerSchmidt |
| BB Shell Width | 73mm |
| Cassette | SRAM PG-990 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | SRAM PC 991 |
| Pedals | Not included |
Brakes
| Brakes | Formula the ONE hydraulic w/203mm rotor front/Formula the ONE hydraulic w/185mm rotor rear brakes, Formula the ONE hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey Pro 44/50mm |
|---|---|
| Handlebar | Scott Pilot 30 Pro 7075 Alloy 30mm rise / 690mm |
| Handlebar Extensions | Not included |
| Stem | Scott EC 6-degree |
| Saddle | Scott Genius |
| Seatpost | Crank Brothers Joplin 3.1, 34.9mm w/ special shim diameter |
Wheels & Tires
| Hubs | Front: Scott EC Pro, 20mm, Rear: Sun Ringle Jumping Flea 12mm |
|---|---|
| Rims | DT Swiss 475d 28mm wide, 32-hole |
| Spokes | DT Swiss Super Comp stainless steel, 14/16.5/15ga. (2.0/1.7/1.8mm) straight gauge |
| Spoke Nipples | DT Swiss Prolock |
| Front Tire | 26 x 2.40" Schwalbe Fat Albert triple compound |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
