Ratio2.63:1
Estimated speed At 90 RPM
Gear
Uses front tire 700C×28; rear size isn’t listed.
Velopedia Bicycle Archive

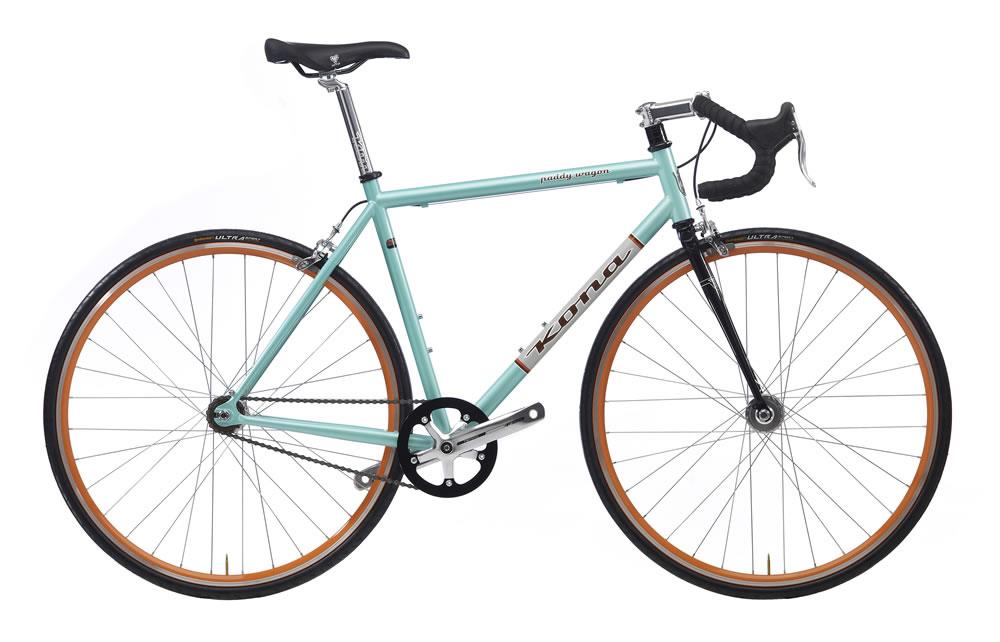

2010 Kona Paddy Wagon
Original specifications: Single Speed Mix drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20379- Model year
- 2010
- Category
- Track
- Original MSRP
- $649.00
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- Metallic Mint
- In this record
- 23 specifications · archived image · original MSRP
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Metallic Mint
- Frame
- Kona Custom Butted Cromoly
- Original equipment
- Single Speed Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona Custom Butted Cromoly · Single Speed Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Custom Butted Cromoly |
| Fork | Kona Retro Road |
| Fork Material | Cromoly, Lugged crown |
Drivetrain
| Component Group | Single Speed Mix |
|---|---|
| Crankset | FSA Tempo, 42 teeth |
| Bottom Bracket | RPM 7420 |
| BB Shell Width | 68mm |
| Cassette | Dicta Freewheel |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z-50 |
Brakes
| Brakes | Tektro R538 brakes, Tektro R200A levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless TH |
|---|---|
| Handlebar | Kona Pista |
| Handlebar Extensions | Not included |
| Stem | Kona Road |
| Saddle | WTB Rocket V Comp OE |
| Seatpost | Kona Thumb |
Wheels & Tires
| Hubs | Front: Formula, Rear: Formula Flip-Flop |
|---|---|
| Rims | Alex Race 28 |
| Spokes | Sandvic stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 28c Continental Ultra Sport |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 28c Continental Ultra Sport
Retailer offers
Continental Ultra Sport III Clincher Tire Black, Pure Grip, 700x28mm
700x28c
Model match
Other replacement options (2)
Continental Ultra Sport III Clincher Tire Black/Brown, PureGrip, Performance, 700x28mm
700x28c
Model match
Specialized SW Mondo 2Bliss Tire Black, 700x28
700x28c
Replacement option
Continental Sport on eBaySponsored links
KMC Z-50
Tektro R538 brakes
Tektro R200A levers
More parts (3)Fewer parts
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 28c Continental Ultra Sport
- Drivetrain
- 1-speed
- Bottom bracket / shell
- RPM 7420 · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Kona Retro Road · Cromoly, Lugged crown
Drivetrain
Check drivetrain wear →Archived: Group: Single Speed Mix · Crankset: FSA Tempo, 42 teeth · Bottom bracket: RPM 7420 · Cassette: Dicta Freewheel · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z-50
Brakes
Inspect the brakes →Archived: Brakes: Tektro R538 brakes, Tektro R200A levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex Race 28 · Hubs: Front: Formula, Rear: Formula Flip-Flop · Front tire: 700 x 28c Continental Ultra Sport
Controls and contact points
Archived: Headset: 1 1/8" threadless TH · Handlebar: Kona Pista · Stem: Kona Road · Seatpost: Kona Thumb · Saddle: WTB Rocket V Comp OE
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
