Ratio2.81:1
Estimated speed At 90 RPM
Gear
Uses front tire 700C×28; rear size isn’t listed.
Velopedia Bicycle Archive

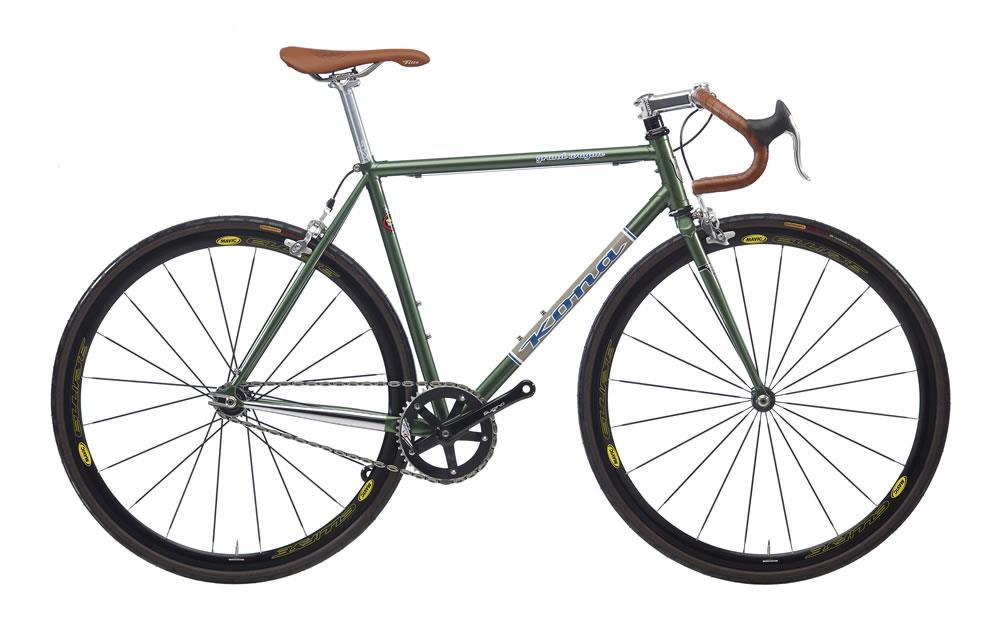

2010 Kona Grand Wagon
Original specifications: Single Speed Mix drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20382- Model year
- 2010
- Category
- Track
- Original MSRP
- $2,599.00
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- Metallic Dark Green
- In this record
- 23 specifications · archived image · original MSRP
Original buildDedacciai SAT Bronze welded Chromoly · Single Speed Mix · 700c wheels
Frameset
| Frame Construction | Lugged |
|---|---|
| Frame Material | Dedacciai SAT Bronze welded Chromoly |
| Fork | Kona Retro Road |
| Fork Material | Cromoly, Lugged crown |
Drivetrain
| Component Group | Single Speed Mix |
|---|---|
| Crankset | Sugino SG75, 45 teeth |
| Bottom Bracket | Sugino BB-SG75 |
| BB Shell Width | 68mm |
| Cassette | Shimano freewheel |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | Shimano CN-NX01 |
Brakes
| Brakes | Shimano R650 brakes, Shimano R600 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Orbit DL |
|---|---|
| Handlebar | Kona Rat Pack Pista |
| Handlebar Extensions | Not included |
| Stem | Kona Rat Pack |
| Saddle | Selle Italia Flight Retro |
| Seatpost | Kona Road Deluxe |
Wheels & Tires
| Hubs | Mavic Track Ellipse |
|---|---|
| Rims | Mavic Track Ellipse |
| Spokes | Mavic Track Ellipse |
| Front Tire | 700 x 28c Continental Ultra Gator Skin |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 28c Continental Ultra Gator Skin
Retailer offers
Vittoria Zaffiro Pro V Clincher Tire Black, 700x28
700x28c
Replacement option
Other replacement options (1)
Specialized SW Mondo 2Bliss Tire Black, 700x28
700x28c
Replacement option
Continental Gator Skin on eBaySponsored links
Shimano CN-NX01
Shimano R650 brakes
Shimano R600 levers
More parts (4)Fewer parts
Selle Italia Flight Retro
1 1/8" threadless FSA Orbit DL
Mavic Track Ellipse
Mavic Track Ellipse
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 28c Continental Ultra Gator Skin
- Drivetrain
- 1-speed
- Bottom bracket / shell
- Sugino BB-SG75 · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Lugged · Fork: Kona Retro Road · Cromoly, Lugged crown
Drivetrain
Check drivetrain wear →Archived: Group: Single Speed Mix · Crankset: Sugino SG75, 45 teeth · Bottom bracket: Sugino BB-SG75 · Cassette: Shimano freewheel · Rear cogs: 1-speed, 16 teeth · Chain: Shimano CN-NX01
Brakes
Inspect the brakes →Archived: Brakes: Shimano R650 brakes, Shimano R600 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic Track Ellipse · Hubs: Mavic Track Ellipse · Front tire: 700 x 28c Continental Ultra Gator Skin
Controls and contact points
Archived: Headset: 1 1/8" threadless FSA Orbit DL · Handlebar: Kona Rat Pack Pista · Stem: Kona Rat Pack · Seatpost: Kona Road Deluxe · Saddle: Selle Italia Flight Retro
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
