Velopedia Bicycle Archive

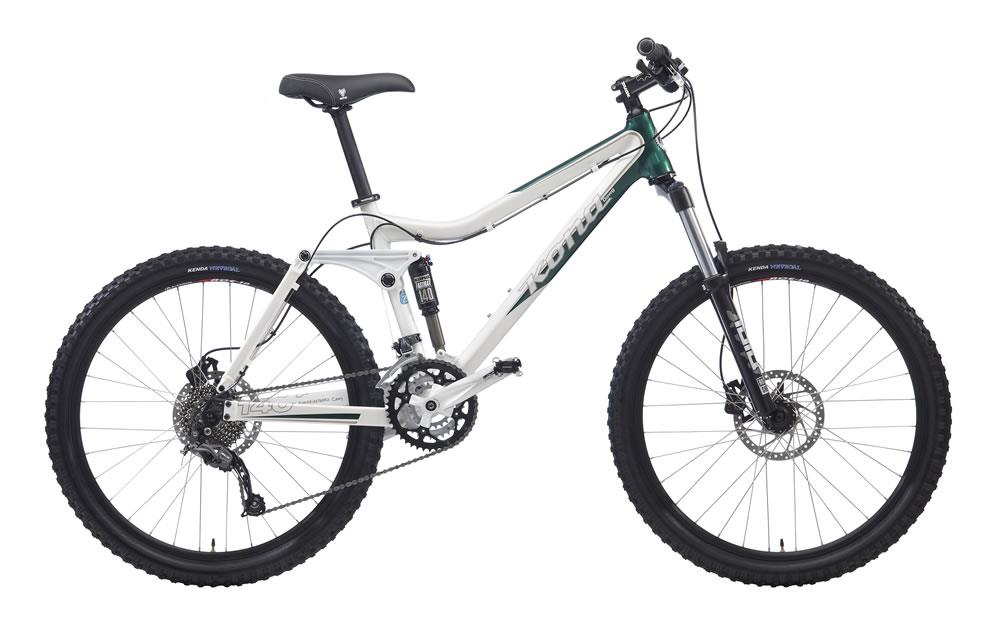

2010 Kona Dawg
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,599.00
- Sizes
- 15", 17", 18", 19", 20", 22"
- Colors
- Pearl White/Metallic Dark Green
- Archive ID
- 20324
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Race Light Butted Aluminum |
| Fork | RockShox Tora 302 Solo, 130mm travel |
| Fork Material | Magnesium/aluminum/steel, single crown |
| Rear Shock | Fastrax ARL, 5" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, 34.9mm clamp |
| Rear Derailleur | Shimano SLX |
| Crankset | FSA Alpha Drive, 44/32/22 teeth |
| Bottom Bracket | FSA Powerdrive |
| BB Shell Width | 73mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | KMC HG53 |
| Pedals | Shimano M505 |
Brakes
| Brakes | Shimano M486 Hydraulic Disc w/7" Rotor brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" FSA Gravity SXE |
|---|---|
| Handlebar | Kona XC/BC Riser |
| Handlebar Extensions | Not included |
| Stem | Kona XC/BC |
| Saddle | WTB Speed V Sport SE |
| Seatpost | Kona XC/BC |
Wheels & Tires
| Hubs | Front: Formula disc, Rear: Shimano M475 disc |
|---|---|
| Rims | Alex ACE-18 |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.35 Kenda Nevegal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
