Lowest0.69:1
Highest3.82:1
Total range555%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

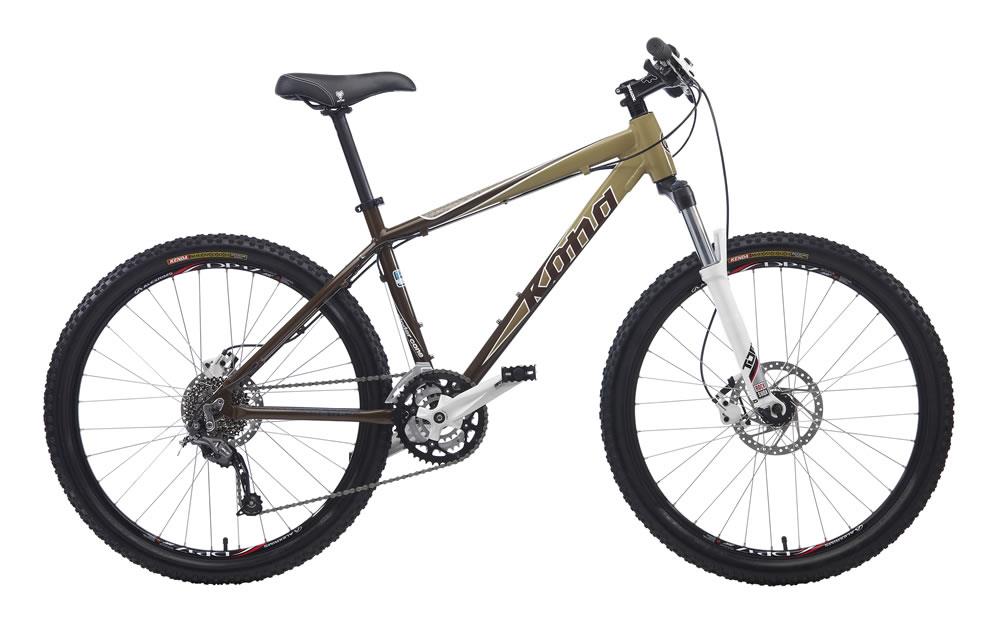

2010 Kona Cinder Cone
Original specifications: Shimano SLX · 9-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #20309- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $999.00
- Sizes
- 14", 16", 17", 18", 19", 20", 22"
- Colors
- Light Brown/Dark Brown or Red/White
- In this record
- 27 specifications · archived image · original MSRP
Model history 24 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Light Brown/Dark Brown or Red/White
- Frame
- Kona All Mountain Butted Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona All Mountain Butted Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona All Mountain Butted Aluminum |
| Fork | RockShox Tora SL, 100mm travel |
| Fork Material | Magnesium/aluminum/steel, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, 31.8mm clamp |
| Rear Derailleur | Shimano SLX |
| Crankset | FSA Alpha Drive, 42/32/22 teeth |
| Bottom Bracket | FSA Powerdrive |
| BB Shell Width | 73mm |
| Cassette | Shimano Deore |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC HG53 |
| Pedals | Wellgo LU-A9 |
Brakes
| Brakes | Shimano M486 Hydraulic Disc w/7" Rotor front/Shimano M486 Hydraulic Disc w/6" Rotor rear brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless TH |
|---|---|
| Handlebar | Kona XC/BC Riser |
| Handlebar Extensions | Not included |
| Stem | Kona XC/BC |
| Saddle | WTB Speed V Sport SE |
| Seatpost | Kona Thumb |
Wheels & Tires
| Hubs | Front: Formula disc, Rear: Shimano M475 disc |
|---|---|
| Rims | Alex DP-17 |
| Spokes | Sandvic stainless, 15ga front/14ga rear |
| Front Tire | 26 x 2.10" Kenda Komodo |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC HG53
FSA Powerdrive
More parts (7)Fewer parts
Wellgo LU-A9
WTB Speed V Sport SE
FSA Alpha Drive
42/32/22 teeth
Shimano Deore
31.8mm clamp
Shimano SLX
Shimano Deore
Alex DP-17
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Kenda Komodo
- Drivetrain
- 9-speed
- Bottom bracket / shell
- FSA Powerdrive · 73mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RockShox Tora SL, 100mm travel · Magnesium/aluminum/steel, single crown
Suspension
Evaluate the suspension →Archived: Fork: RockShox Tora SL, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore · Front derailleur: Shimano Deore, 31.8mm clamp · Rear derailleur: Shimano SLX · Crankset: FSA Alpha Drive, 42/32/22 teeth · Bottom bracket: FSA Powerdrive · Cassette: Shimano Deore · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC HG53
Brakes
Inspect the brakes →Archived: Brakes: Shimano M486 Hydraulic Disc w/7" Rotor front/Shimano M486 Hydraulic Disc w/6" Rotor rear brakes, Shimano M486 hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex DP-17 · Hubs: Front: Formula disc, Rear: Shimano M475 disc · Front tire: 26 x 2.10" Kenda Komodo
Controls and contact points
Archived: Headset: 1 1/8" threadless TH · Handlebar: Kona XC/BC Riser · Stem: Kona XC/BC · Seatpost: Kona Thumb · Saddle: WTB Speed V Sport SE · Pedals: Wellgo LU-A9
