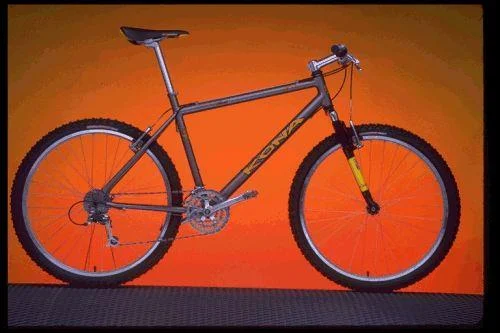

1997 Kona Cinder Cone

Archived: Frame: TIG-welded · Fork: Rock Shox Indy C · Magnesium, triple-clamp crown

• Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Fork: Rock Shox Indy C

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Shimano Deore LX/STX · Shifters: Grip Shift SRT-600 · Front derailleur: Shimano STX top-swing, top-pull/clamp-on 28.6 mm · Rear derailleur: Shimano Deore LX SGS · Crankset: Cyclone CPI-349 A2 SQS, 22/32/42 teeth · Bottom bracket: Shimano BB-LP26, 110 mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Shimano CN-IG31, 1/2 x 3/32"

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Avid SD-2.0 brakes, Avid SD-1.9 levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 26" wheels · Rims: Mavic 238, 32-hole · Hubs: Front: Kona 999, Rear: Shimano STX-RC · Front tire: Front: 26 x 2.00" Kona Scratch, Rear: 26 x 2.00" Kona Sniff

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" threadless Dia-Compe Kontak Aheadset ST-2 · Handlebar: Kona Slim 165 · Stem: Tahoma Sonne IV · Seatpost: Tahoma DP 127, 27.0 mm diameter · Saddle: Selle Italia Expedia · Pedals: Fasten NWL-90K w/clips & straps

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
